New Way® Air Bearings offers imperial thrust bushings to compliment our air bushing product line. If you’re looking for frictionless, rotary motion that doesn’t move linearly, our imperial thrust bushings are the product you need.

The imperial thrust bushings consist of a hollow cylinder of our Porous Media Technology™, with the outer surface encased in an aluminum housing. In order to prevent linear motion, we added a thrust face that is also made from porous carbon. These bushings are found in many rotary applications, such as turbochargers in high-performance automobiles.

The porous carbon that comprises all our air bearings creates a reliable, stiff air gap between components. Air that is fed through the bearings must make its way through tortuous passageways that naturally occur throughout the carbon substrate to reach the surface. This leaves a uniform, stiff air cushion at the surface of our bearings.

With no contact between components, our bearings never wear out, and the soft carbon substrate means knicks and scratches won’t affect the distribution of air over the surface. Our bearings are crash and wear resistant.

Clean Room Compliant

The unique qualities of porous media in thrust bushings makes them ideal for clean room applications. Not only is less air used in thrust bushings when compared to orifice-based air bearings, but the air is evenly distributed by the porous media. Both of these features minimize the potential of currents or eddies in the clean room, and avoid damaging impacts on production.

Another benefit of the use of porous media is its ability to perform as a sub-micron filter for the air emitted. Testing indicates the bearing satisfies the requirements of Class 1 (ISO class 3) cleanliness, with airborne particulate concentrate limits of less than 1,000 x 0.1μm particles / m3.

  • High Speed Rotation
  • Precision Rotary Motion
  • Crash Resistant
  • No Lubrication
  • Frictionless Motion®️
  • No Contact
  • Low Error Motion

Applications

New Way Imperial Thrust Bushings are available in imperial sizes, making them easy to integrate into your current process. Contact us today about your manufacturing needs

Flexible Web handling
  • Faster speeds
  • Replace roller ball bearings for precision rotary motion
Automobiles
  • No contact means no wear on parts
  • Less maintenance
Custom Air Spindles
  • Low synchronous and zero asynchronous error motion
  • Easy to assemble and Inexpensive

Thrust Bushing Product Line

Thrust bushings come in 5 imperial sizes to fit your applications. Reach out to New Way today to find out how our Porous Media Technology can transform your manufacturing process.

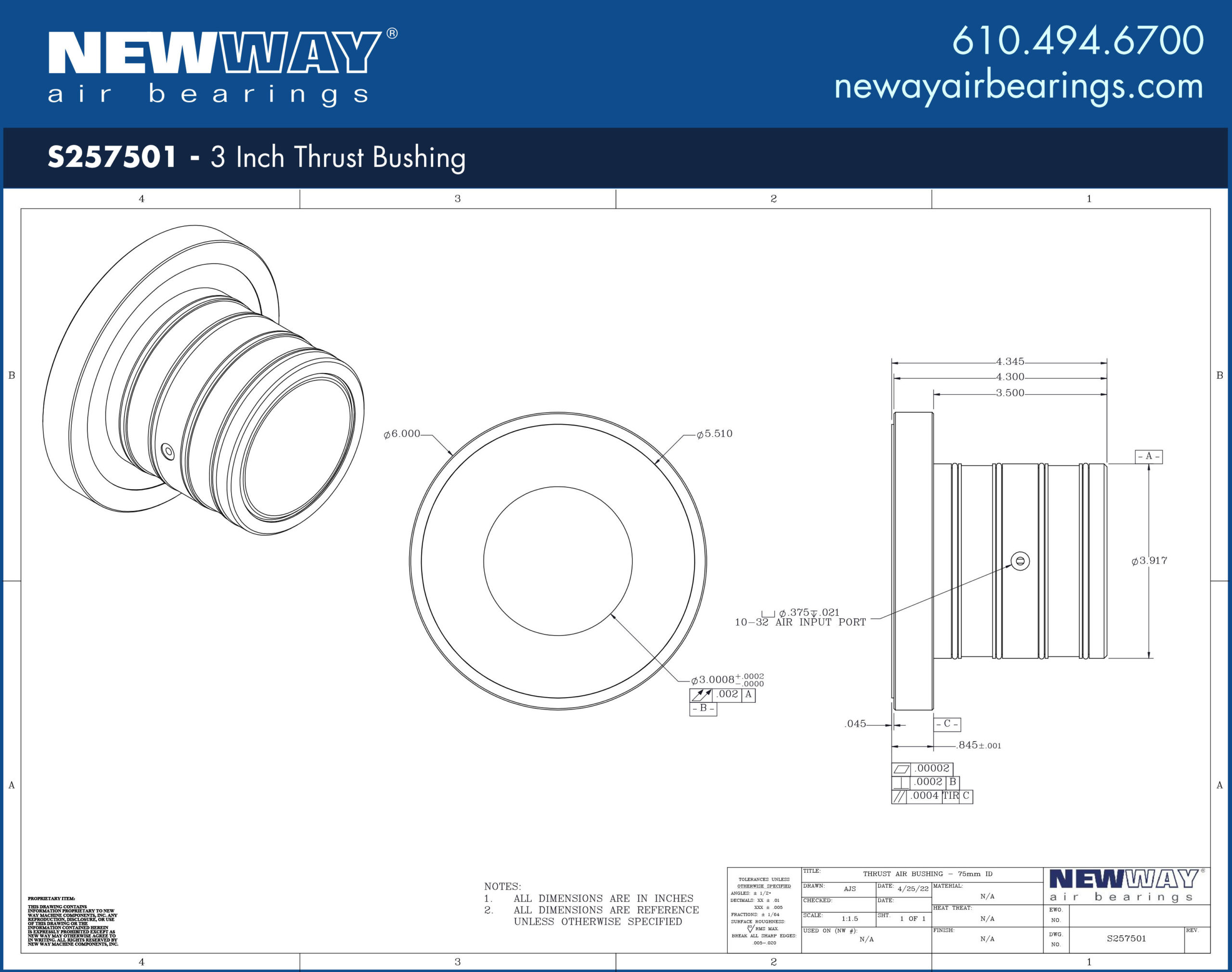

S257501S257501 - 3 Inch Thrust Bushing
thrust bushings
S257501S257501 - 3 Inch Thrust Bushing

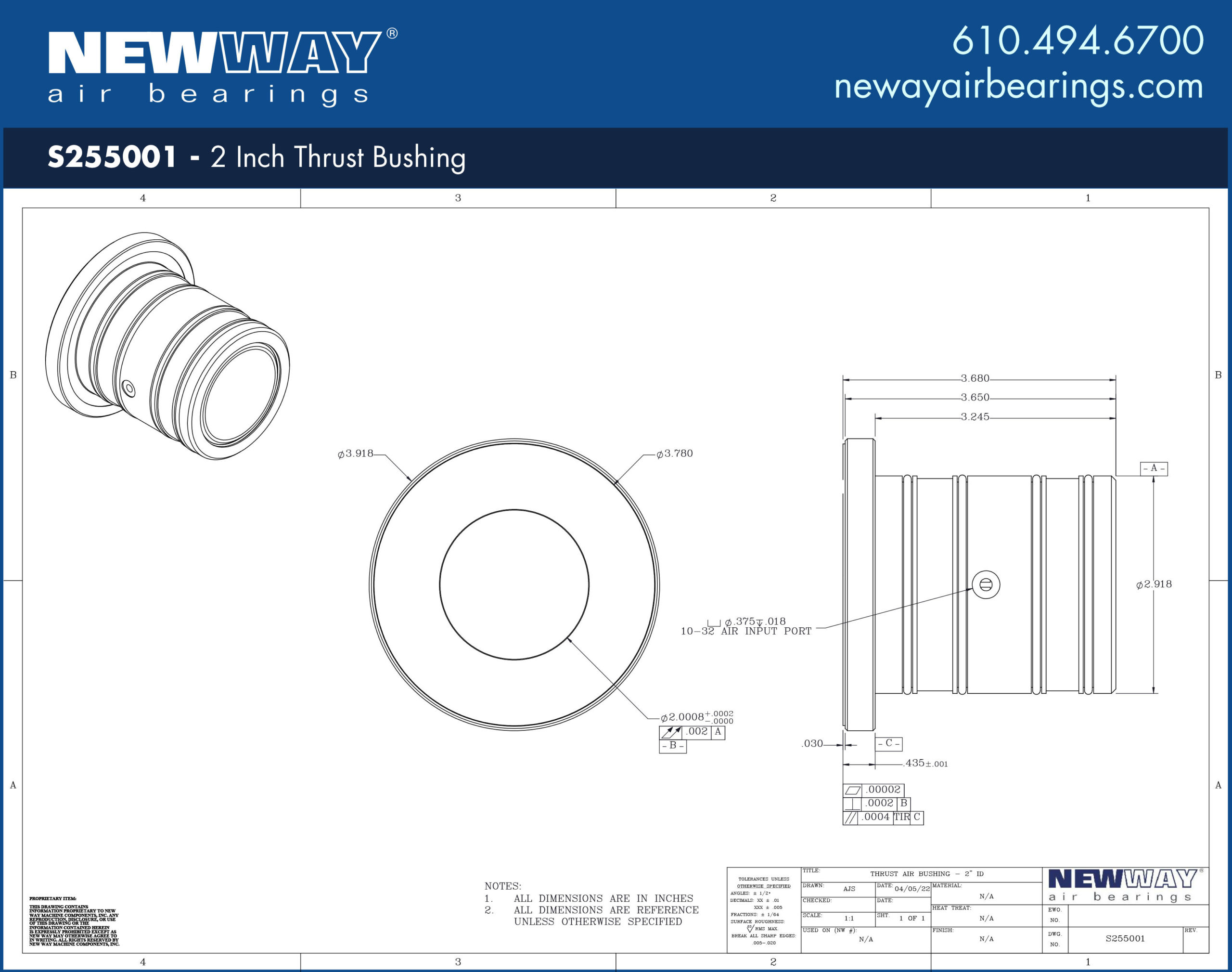

S255001S255001 - 2 Inch Thrust Bushing
thrust bushings
S255001S255001 - 2 Inch Thrust Bushing

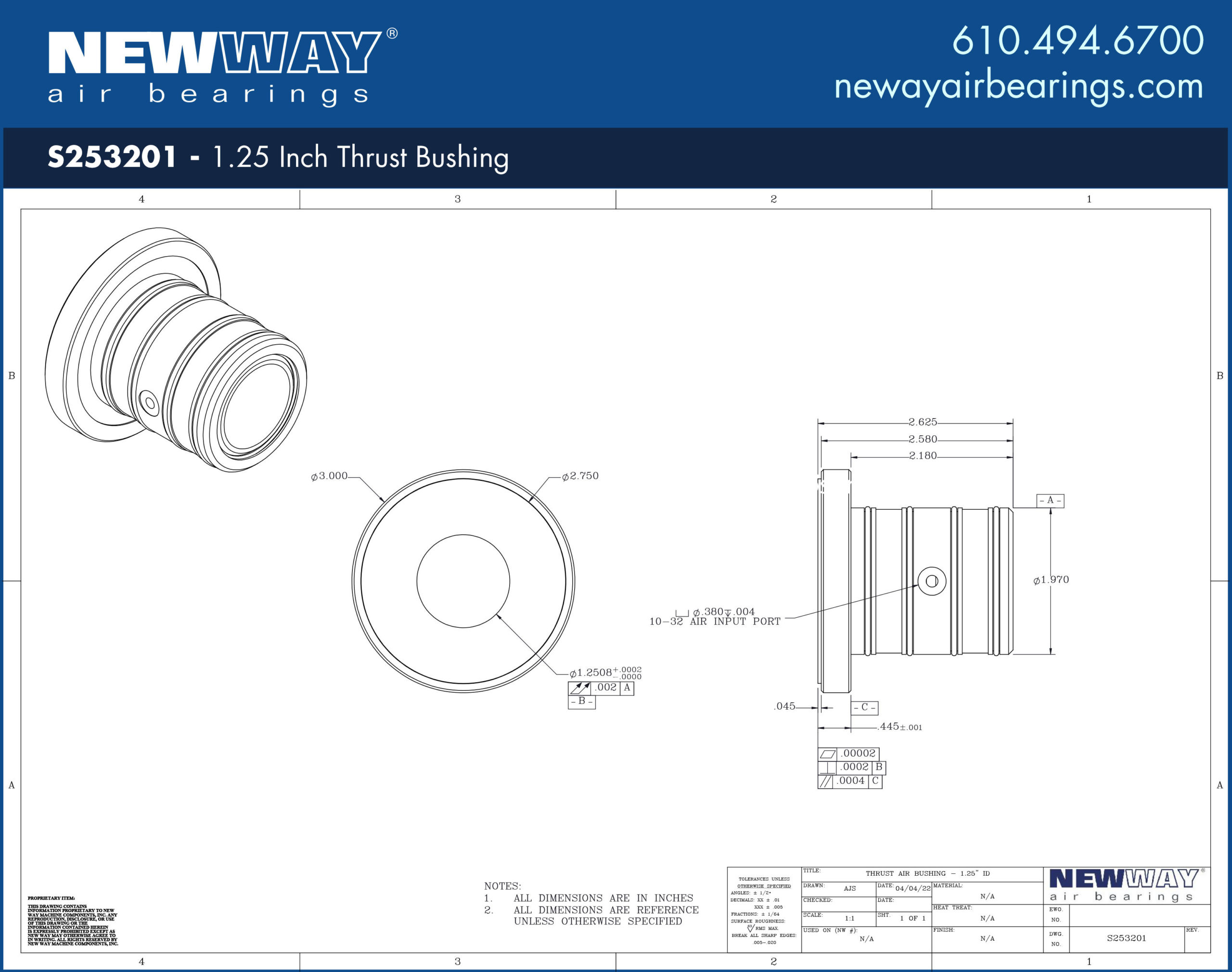

S253201S253201 - 1.25 Inch Thrust Bushing
thrust bushings
S253201S253201 - 1.25 Inch Thrust Bushing

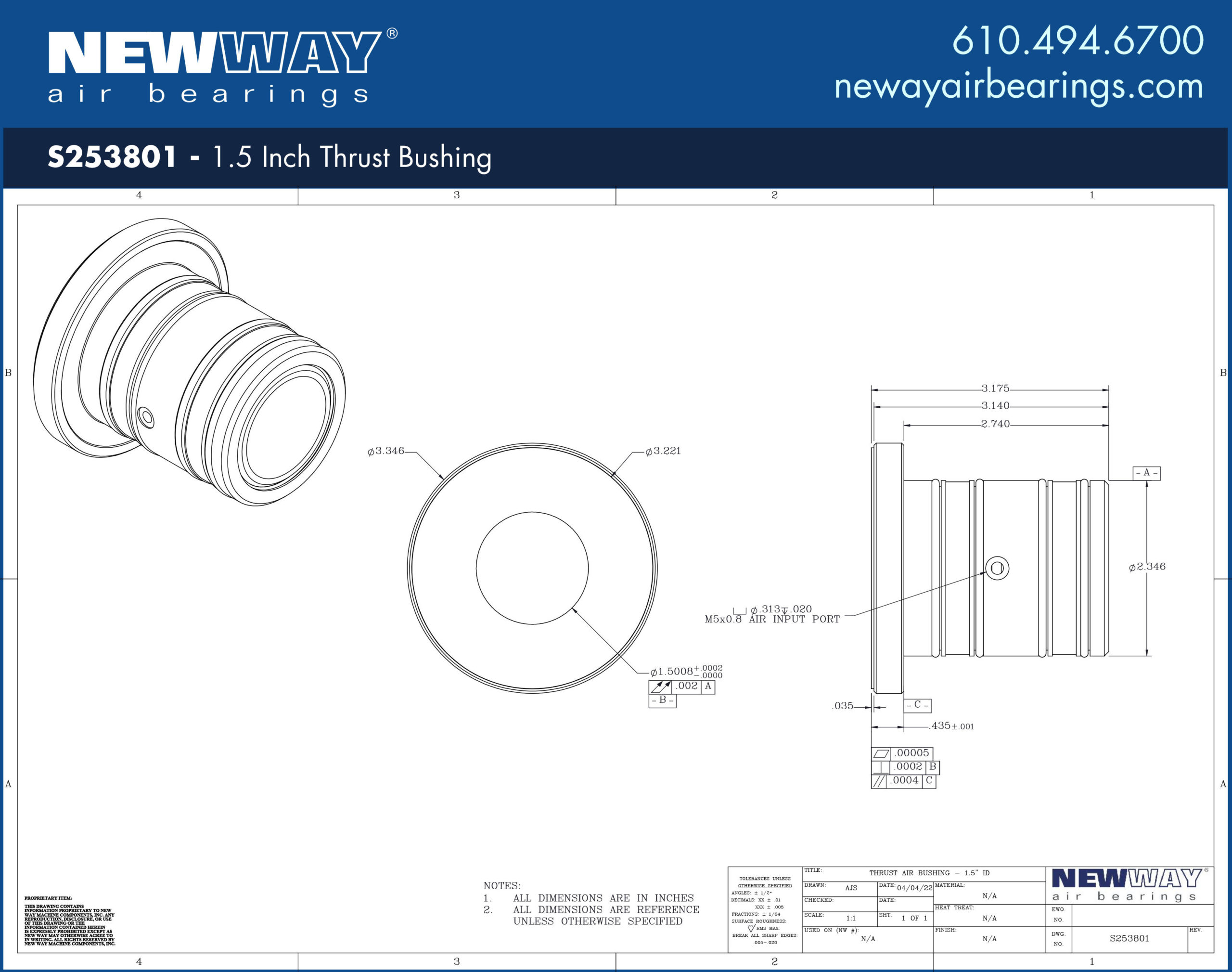

S253801S253801 - 1.5 Inch Thrust Bushing
thrust bushings
S253801S253801 - 1.5 Inch Thrust Bushing

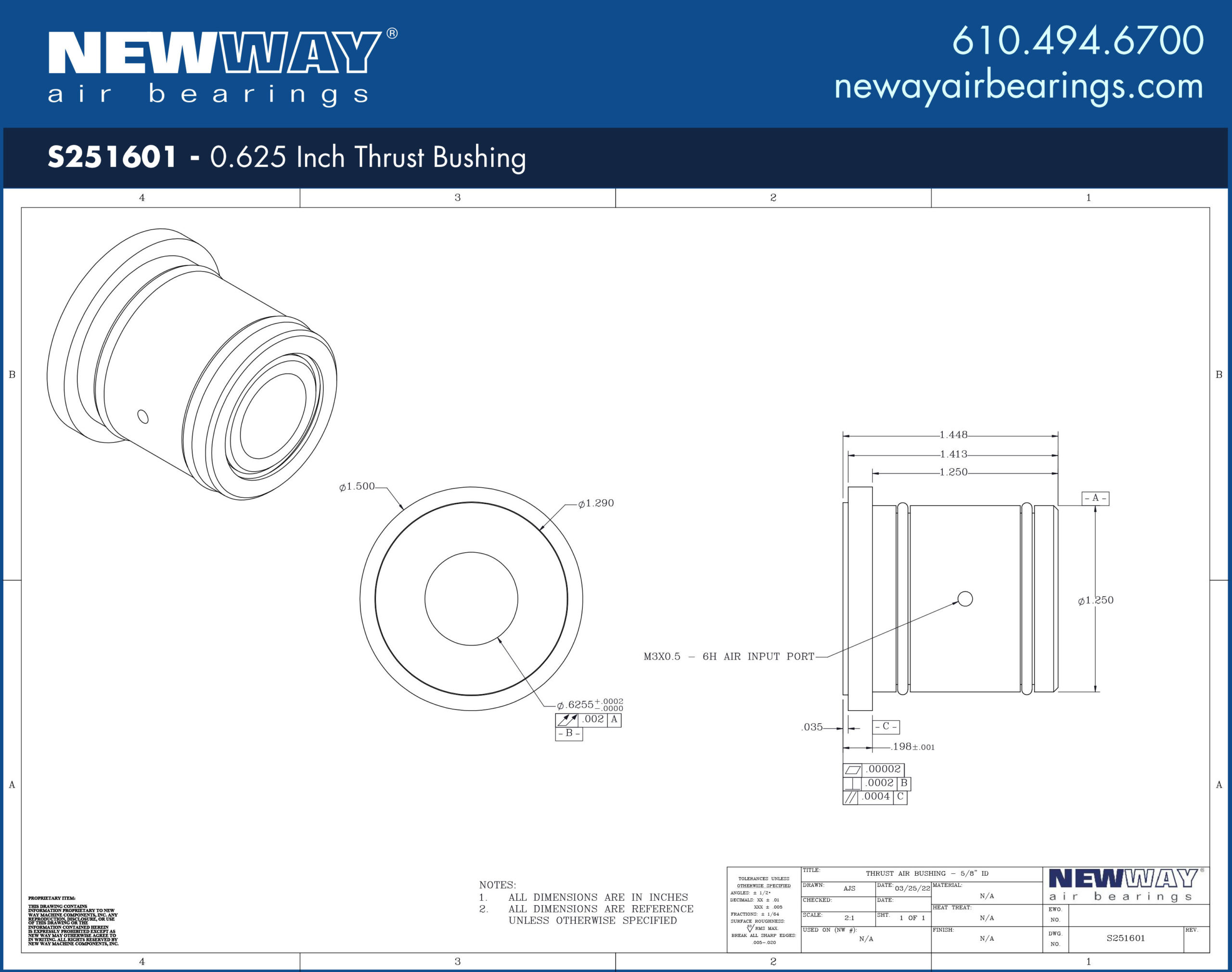

S251601S251601 - 0.625 Inch Thrust Bushing
thrust bushings
S251601S251601 - 0.625 Inch Thrust Bushing

Units: US METRIC

Comparision Table

Size Part # Input Pressure Inside Diameter (ID) Outside Diameter (OD) Face Outside Diameter (OD) Length Weight
3.00 Inch ID3.00 Inch ID
S257501S257501 60 psi0.41 MPa 3.0008 in +.0002/-.000076.220 +0.005/-0.000 mm 3.9 in99 mm N/AN/A 4.35 in110.5 mm N/AN/A
2.00 Inch ID2.00 Inch ID
S255001S255001 60 psi0.41 MPa 2.0008 in +.0002/-.000050.820 +0.005/-0.000 mm 2.9 in74 mm N/AN/A 3.680 in93.5 mm N/AN/A
1.25 Inch ID1.25 Inch ID
S253201S253201 60 psi0.41 MPa 1.2508 in +.0002/-.000031.770 + 0.005 /-0.000 mm 1.970 in50mm 0.50 lbs/μ in87 N/μ m 2.625 in66.675mm 8.40 oz238 grams
1.50 Inch ID1.50 Inch ID
S253801S253801 60 psi0.41 MPa 1.5008 in +.0002/-.000038.120 +0.005/-0.000 mm 2.3 in58 mm N/AN/A 3.175 in81 mm N/AN/A
0.625 in ID0.625 in ID
S251601S251601 60 psi0.41 MPa 0.6255 in +.0002/-.000015.888 + 0.005 /-0.000 mm 1.250 in31.75mm N/AN/A 1.448 in36.78mm 1.80 oz51 grams
