Nut Housings



Nut Housings

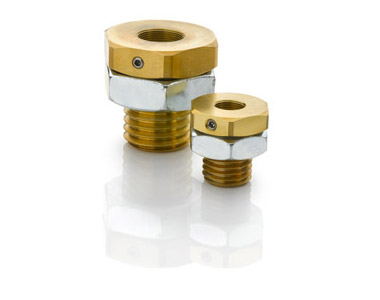

New Way® offers several standard-sized nut housing components as an optional subcomponent for use with New Way ball mounting screws. These nut housing components can simplify the installation of flat round and flat rectangular air bearings.

Check out our selections of nut housing components below, and contact our engineering support staff with questions or to learn more!

  • Easy to install
  • Simple to adjust
  • Multiple sizes

Applications

New Way Nut Housings simplify the installation of ball mounting screws with flat round and rectangular air bearings.

Versatile Design
  • Accommodates both round and flat-end ball mounting screws.
Wide Range of Configurations
  • Can be used in setups not limited in Z height as well as those which are space-constrained.

Product Line

New Way Nut Housing components are available in standard metric sizes.


S8040H01S8040H01 - M30 x 0.75 ID / M42 x 4.5 OD Nut Housing Assembly
S8040H01S8040H01 - M30 x 0.75 ID / M42 x 4.5 OD Nut Housing Assembly

S8020H01S8020H01 - M16 x 0.75 ID / M24 x 3 OD Nut Housing Assembly
S8020H01S8020H01 - M16 x 0.75 ID / M24 x 3 OD Nut Housing Assembly

S8013H03S8013H03 - M10 x 0.75 ID / M16x 2 OD Nut Housing Assembly
S8013H03S8013H03 - M10 x 0.75 ID / M16x 2 OD Nut Housing Assembly

S8013H04S8013H04 - M10 x 0.50 ID / M16 x 2 OD Nut Housing Assembly
S8013H04S8013H04 - M10 x 0.50 ID / M16 x 2 OD Nut Housing Assembly



Questions

If you have questions about using our nut housing components, please contact our team of engineer consultants today!
