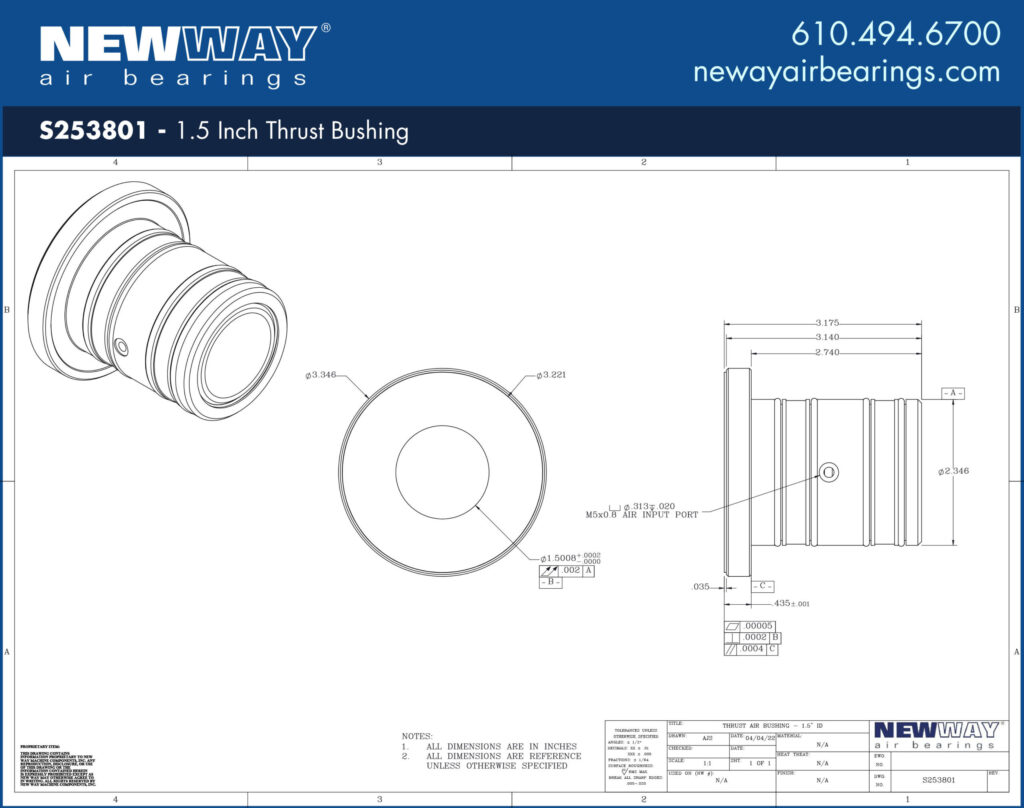

S253801S253801 – 1.5 Inch Thrust Bushing


1.5 Inch Thrust Bushing

1.5 Inch Thrust Bushing
S253801S253801

S253801 Thrust Bushings makes air bearing technology readily available to engineers who require radial motion with axial constraint. The S253801 runs on a standard imperial precision machined steel shaft.
Contact us today to start improving your rotary applications!

Units: US METRIC
TitleSpecifications
Size1.50 Inch ID1.50 Inch ID
SKUS253801S253801
Input Pressure60 psi0.41 MPa
Radial Load Max145 lbs645 N
Thrust Load Max180 lbs800 N
Axial StiffnessN/AN/A
Radial Stiffness0.41 lb/μin72 N/μm
Flowrate on ShaftN/AN/A
Air Gap150 micro-inches3.81 microns
Thrust Bushing1.5008 in +.0002/-.000038.120 +0.005/-0.000 mm
Bushing Outside2.3 in58 mm
Thrust Face3.35 in85 mm
Thrust Bushing Length3.175 in81 mm
Thrust Bushing WeightN/AN/A
Housing Material/FinishAluminum/AnodizedAluminum/Anodized
Porous Media MaterialCarbonCarbon
Recommended Shaft1.5000 in -.0004/-.0010 in (g6)38.100 mm -9/-25 μm (g6)
Recommended Mounting Bore2.375 in +.002/-.00260.33 mm +.05/-.05
Maximum Allowable Pressure Supply100 psi0.689 MPa
ResolutionInfiniteInfinite
Maximum Speed164 ft/s50 m/sec
Common Shaft MaterialsAnodized aluminum, stainless steel, nickel plated steel, ceramics, glassAnodized aluminum, stainless steel, nickel plated steel, ceramics, glass
