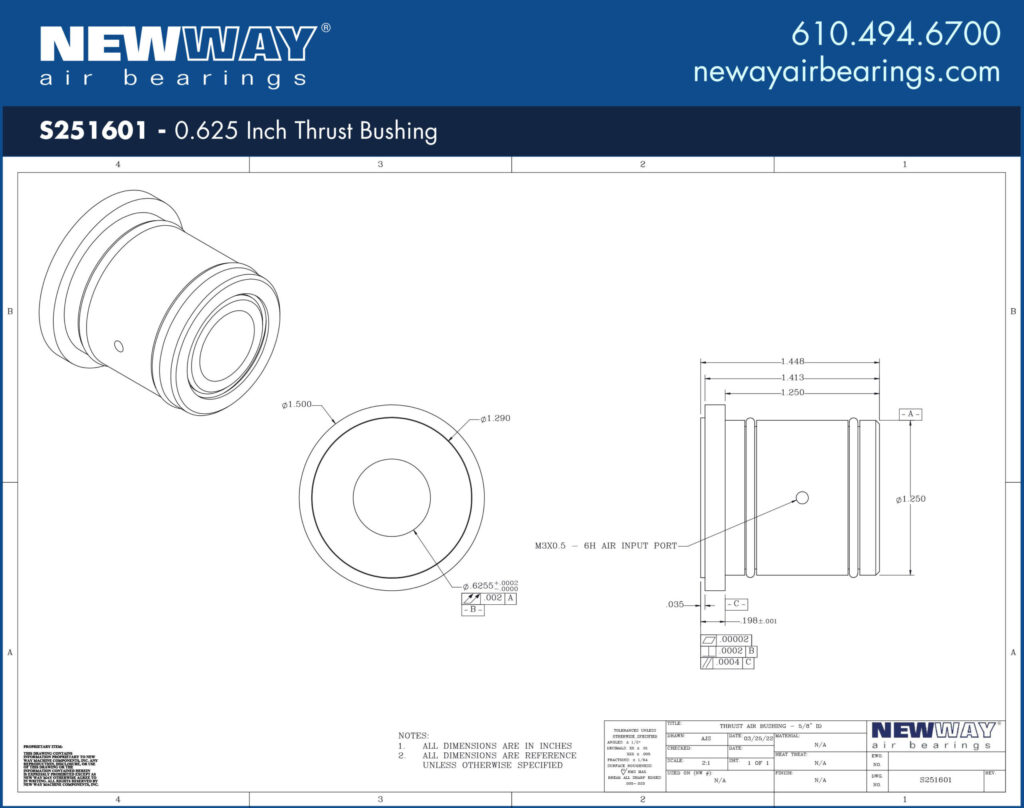

S251601S251601 – 0.625 Inch Thrust Bushing


0.625 Inch Thrust Bushing

0.625 Inch Thrust Bushing
S251601S251601

S2561601 Thrust Bushings makes air bearing technology readily available to engineers who require radial motion with axial constraint. The S2561601 runs on an imperial/metric precision machined steel shaft.
Contact us today to start improving your rotary applications!

Units: US METRIC
TitleSpecifications
Size0.625 in ID0.625 in ID
SKUS251601S251601
Input Pressure60 psi0.41 MPa
Radial Load Max5 lbs22 N
Thrust Load Max30 lbs133 N
Axial StiffnessN/AN/A
Radial StiffnessN/AN/A
Flowrate on Shaft4.5 - 7.0 SCFH2.12 - 3.30 NLPM
Air Gap150 micro-inches3.81 microns
Thrust Bushing0.6255 in +.0002/-.000015.888 + 0.005 /-0.000 mm
Bushing Outside1.250 in31.75mm
Thrust Face1.500 in38.1mm
Thrust Bushing Length1.448 in36.78mm
Thrust Bushing Weight1.80 oz51 grams
Housing Material/FinishAluminum/AnodizedAluminum/Anodized
Porous Media MaterialCarbonCarbon
Recommended Shaft0.6250 in +.0000 / -.000315.875 +0.000 /-0.005 mm
Recommended Mounting Bore1.270 in +.003 / -.00032.3 +0.076 / -0.000 mm
Maximum Allowable Pressure Supply100 psi0.689 MPa
ResolutionInfiniteInfinite
Maximum Speed164 ft/s50 m/sec
Common Shaft MaterialsAnodized aluminum, stainless steel, nickel plated steel, ceramics, glassAnodized aluminum, stainless steel, nickel plated steel, ceramics, glass
