Old Machines Get a Modern Update with Porous Media™

New Way® has a long, established history of working to upgrade and retrofit Sheffield coordinate measuring machines. Finding a perfect match for old precision machines can be a painstaking process. That’s why New Way does the work for you!

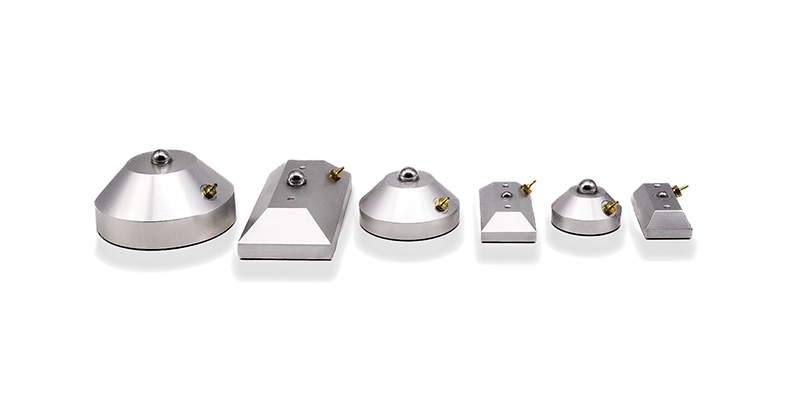

Beyond the benefits to your business, the process of upgrading Sheffield machines is as simple as inserting the new bearing. Our bearings act as drop in replacements, requiring no modification or remachining of the bearing housings, allowing for a seamless upgrade with minimal downtime.

Our simple chart cross-references New Way part numbers against the most common Sheffield (now Hexagon) CMM’s, providing you with a comprehensive resource allowing you to easily determine which bearings you need. With retrofit bearings, the power is in your hands to bring your machine back up to its full potential, and even increase performance.

Sheffield CMM Measurement Meets Frictionless Motion™

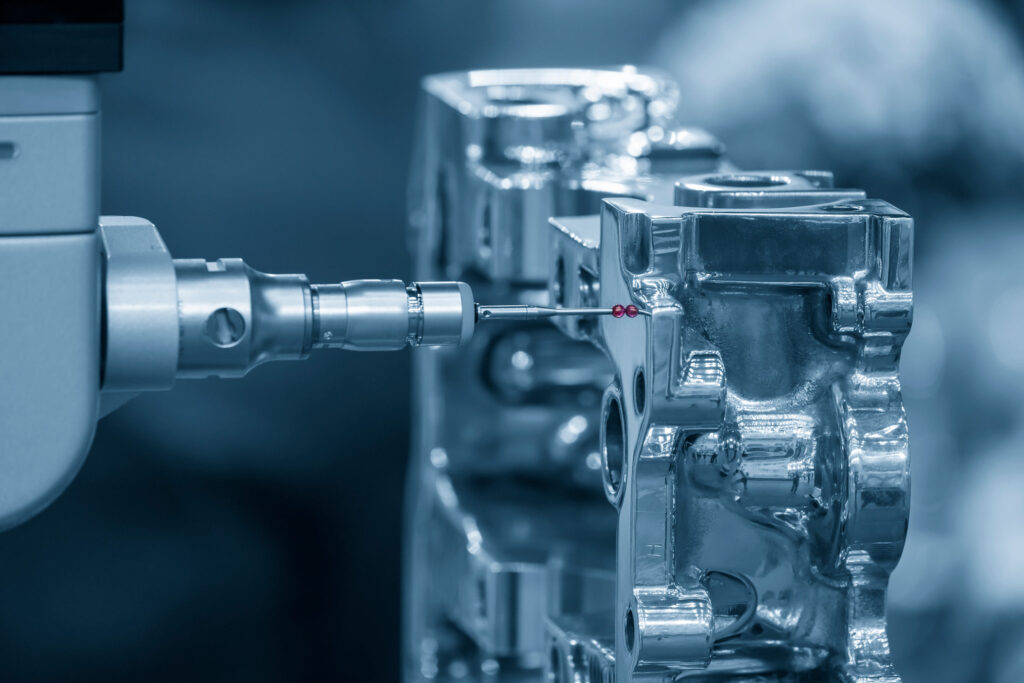

Multi-axis CMM machine checking the aluminum cylinder block parts.When it comes to CMM measurement and inspection, only the best components will suffice. Accurate measurement requires smooth, vibration-free action with ultra-high resolution, and New Way air bearings are leading the industry. However, we know that purchasing a new CMM machine can be extremely costly. That’s why New Way offers a comprehensive library of Sheffield CMM service and retrofit bearings to bring the power of Porous Media Technology™ to older machines.

With New Way, older and rebuilt machines can see astonishing results, and we are dedicated to making the retrofit process as easy as possible. Simply look at our special part numbering system to cross-reference the original Sheffield bearing to the New Way retrofit bearing. Our drop-in bearings come in a huge range of sizes to replace obsolete conventional bearings, orifice bearings, and even other porous graphite bearings from any Sheffield CMM machine.

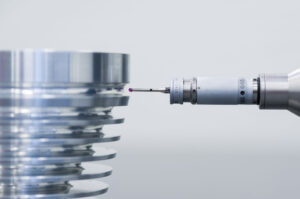

Automated dimension inspection of metal parts by CMM after machining process.So whether you are a technician looking to service old CMM bearings or a rebuilder providing new life to an old machine, you can experience the power of contactless, zero-hysteresis, crash-resistant air bearings. To learn more about how air bearings are changing industries across the spectrum, download our eBook.

Retrofit Your Machine With Custom Parts from New Way

Want to supercharge your CMM measurement system with Porous Media air bearings, but need a custom size? We will work with you to retrofit or rebuild your machine with the benefit of contactless motion. Contact us anytime to discuss your custom application.

Product Line

New Way bearings are readily compatible with the following Sheffield models:


5800069058000690 - Sheffield Retrofit Bearings 50x100mm 1808
5800069058000690 - Sheffield Retrofit Bearings 50x100mm 1808

5800871458008714 - Sheffield Retrofit Bearing 50x100mm Apollo R670
5800871458008714 - Sheffield Retrofit Bearing 50x100mm Apollo R670

5800105858001058 - Sheffield Retrofit Bearing 30x60mm 1808
5800105858001058 - Sheffield Retrofit Bearing 30x60mm 1808

5800069158000691 - Sheffield Retrofit Bearing 25x50mm R25/35
5800069158000691 - Sheffield Retrofit Bearing 25x50mm R25/35

5800069158000691 - Sheffield Retrofit Bearing 25x50mm R5
5800069158000691 - Sheffield Retrofit Bearing 25x50mm R5

5800069158000691 - Sheffield Retrofit Bearing 25x50mm 1808
5800069158000691 - Sheffield Retrofit Bearing 25x50mm 1808

5800569458005694 - Sheffield Retrofit Bearing 5x10mm Apollo R670
5800569458005694 - Sheffield Retrofit Bearing 5x10mm Apollo R670

5800569458005694 - Sheffield Retrofit Bearing 5x10mm Apollo R170/280
5800569458005694 - Sheffield Retrofit Bearing 5x10mm Apollo R170/280

5800569558005695 - Sheffield Retrofit Bearing 5x7.5mm Apollo R670
5800569558005695 - Sheffield Retrofit Bearing 5x7.5mm Apollo R670

5800569558005695 - Sheffield Retrofit Bearing 5x7.5mm Apollo R170/280
5800569558005695 - Sheffield Retrofit Bearing 5x7.5mm Apollo R170/280

4200224642002246 - Sheffield Retrofit Bearing 5x6.5mm Horizon 15.10.7-30.15.9
4200224642002246 - Sheffield Retrofit Bearing 5x6.5mm Horizon 15.10.7-30.15.9

5700063957000639 - Sheffield Retrofit Bearing 4DIA R25/35
5700063957000639 - Sheffield Retrofit Bearing 4DIA R25/35

4200265942002659 - Sheffield Retrofit Bearing 4DIA Progage H25/38
4200265942002659 - Sheffield Retrofit Bearing 4DIA Progage H25/38

5800339658003396 - Sheffield Retrofit Bearing 4DIA Apollo R30
5800339658003396 - Sheffield Retrofit Bearing 4DIA Apollo R30

5800339858003398 - Sheffield Retrofit Bearing 4.75DIA Horizon 15.10.7-30.15.9
5800339858003398 - Sheffield Retrofit Bearing 4.75DIA Horizon 15.10.7-30.15.9

5800339858003398 - Sheffield Retrofit Bearing 4.75DIA Apollo R50-220
5800339858003398 - Sheffield Retrofit Bearing 4.75DIA Apollo R50-220

5800339758003397 - Sheffield Retrofit Bearing 4.5DIA Apollo R50-220
5800339758003397 - Sheffield Retrofit Bearing 4.5DIA Apollo R50-220

5900005059000050 - Sheffield Retrofit Bearing 3x6mm Progage H25/38
5900005059000050 - Sheffield Retrofit Bearing 3x6mm Progage H25/38

5700007157000071 - Sheffield Retrofit Bearing 3DIA R25/35
5700007157000071 - Sheffield Retrofit Bearing 3DIA R25/35

5900513359005133 - Sheffield Retrofit Bearing 3DIA R5
5900513359005133 - Sheffield Retrofit Bearing 3DIA R5

5900513359005133 - Sheffield Retrofit Bearing 3DIA Progage H25/38
5900513359005133 - Sheffield Retrofit Bearing 3DIA Progage H25/38

5800339558003395 - Sheffield Retrofit Bearing 3DIA Apollo R670
5800339558003395 - Sheffield Retrofit Bearing 3DIA Apollo R670

5800339558003395 - Sheffield Retrofit Bearing 3DIA Apollo R170/280
5800339558003395 - Sheffield Retrofit Bearing 3DIA Apollo R170/280

5800339558003395 - Sheffield Retrofit Bearing 3DIA Apollo R50-220
5800339558003395 - Sheffield Retrofit Bearing 3DIA Apollo R50-220

5800339558003395 - Sheffield Retrofit Bearing 3DIA Apollo R30
5800339558003395 - Sheffield Retrofit Bearing 3DIA Apollo R30

5800339458003394 - Sheffield Retrofit Bearing 2.25DIA R25/35
5800339458003394 - Sheffield Retrofit Bearing 2.25DIA R25/35

5800339458003394 - Sheffield Retrofit Bearing 2.25DIA R5
5800339458003394 - Sheffield Retrofit Bearing 2.25DIA R5

4200265642002656 - Sheffield Retrofit Bearing 2.25DIA Progage H25/38
4200265642002656 - Sheffield Retrofit Bearing 2.25DIA Progage H25/38

5800339458003394 - Sheffield Retrofit Bearing 2.25DIA Horizon 15.10.7-30.15.9
5800339458003394 - Sheffield Retrofit Bearing 2.25DIA Horizon 15.10.7-30.15.9

5800339458003394 - Sheffield Retrofit Bearing 2.25DIA Apollo R670
5800339458003394 - Sheffield Retrofit Bearing 2.25DIA Apollo R670

5800339458003394 - Sheffield Retrofit Bearing 2.25DIA Apollo R170/280
5800339458003394 - Sheffield Retrofit Bearing 2.25DIA Apollo R170/280

5800339458003394 - Sheffield Retrofit Bearing 2.25DIA Apollo R50-220
5800339458003394 - Sheffield Retrofit Bearing 2.25DIA Apollo R50-220

5800339458003394 - Sheffield Retrofit Bearing 2.25DIA Apollo R30
5800339458003394 - Sheffield Retrofit Bearing 2.25DIA Apollo R30

4200211042002110 - Sheffield Retrofit Bearing 1.5x3mm Progage H25/38
4200211042002110 - Sheffield Retrofit Bearing 1.5x3mm Progage H25/38

4200211042002110 - Sheffield Retrofit Bearing 1.5x3mm Horizon 15.10.7-30.15.9
4200211042002110 - Sheffield Retrofit Bearing 1.5x3mm Horizon 15.10.7-30.15.9

5800339358003393 - Sheffield Retrofit Bearing 1.5DIA Progage H25/38
5800339358003393 - Sheffield Retrofit Bearing 1.5DIA Progage H25/38

5800339358003393 - Sheffield Retrofit Bearing 1.5DIA Apollo R50-220
5800339358003393 - Sheffield Retrofit Bearing 1.5DIA Apollo R50-220

5800339358003393 - Sheffield Retrofit Bearing 1.5DIA Apollo R30
5800339358003393 - Sheffield Retrofit Bearing 1.5DIA Apollo R30



Questions

Do you have questions about the process of retrofitting a Sheffield CMM, or don’t see your specific machines listed here? Please contact us so we can get started on identifying the right products for you!
