Gauges, Regulators, and Filters



Gauges, Regulators, and Filters

While our air bearings products are engineered to the highest standards possible, an air bearing is only as good as the air you provide it. To that end, New Way® is pleased to be your supplier for all of the regulators, gauges, and filters you need in order to supply your air bearings with an air supply conducive to optimal performance.

Per our Care and Air guidelines, our air bearings should be supplied with Clean Dry Air (CDA) at 60 psi of pressure. The quality of the air the bearing runs off of greatly affects the lifespan of the bearing. For this reason, we highly recommend investing in your filtration system just as you’ve chosen to invest in our noncontact products.

Our officially recommended specifications state that in lieu of already purified shop air, your air supply should be filtered and regulated through a four-step process which includes:

  1. A general-purpose filter which removes particulates down to 25 microns and protects the coalescing filter.
  2. A coalescing filter to remove oil, liquid, and particles down to 0.1 microns.
  3. A desiccant dryer to reduce the air’s vapor point by 40°.
  4. A regulator valve to ensure the air supply is consistent at 60 psi.

In addition to providing all the individual components you may need (as well as replacement filters and desiccant), New Way also offers an all in one Air Filter and Dryer Kit (99-0284), providing you with a plug-and-play option that encompasses all four steps needed to properly regulate and filter your bearing’s air supply.

Gauges, Regulators and Filters Product Line

Everything you need in order to properly filter and regulate your air supply, as well as replacement filters and desiccants, are all available directly through New Way.


S90L008S90L008 - Replacement Filter Kit
S90L008S90L008 - Replacement Filter Kit

S90L009S90L009 - Replacement Desiccant
S90L009S90L009 - Replacement Desiccant

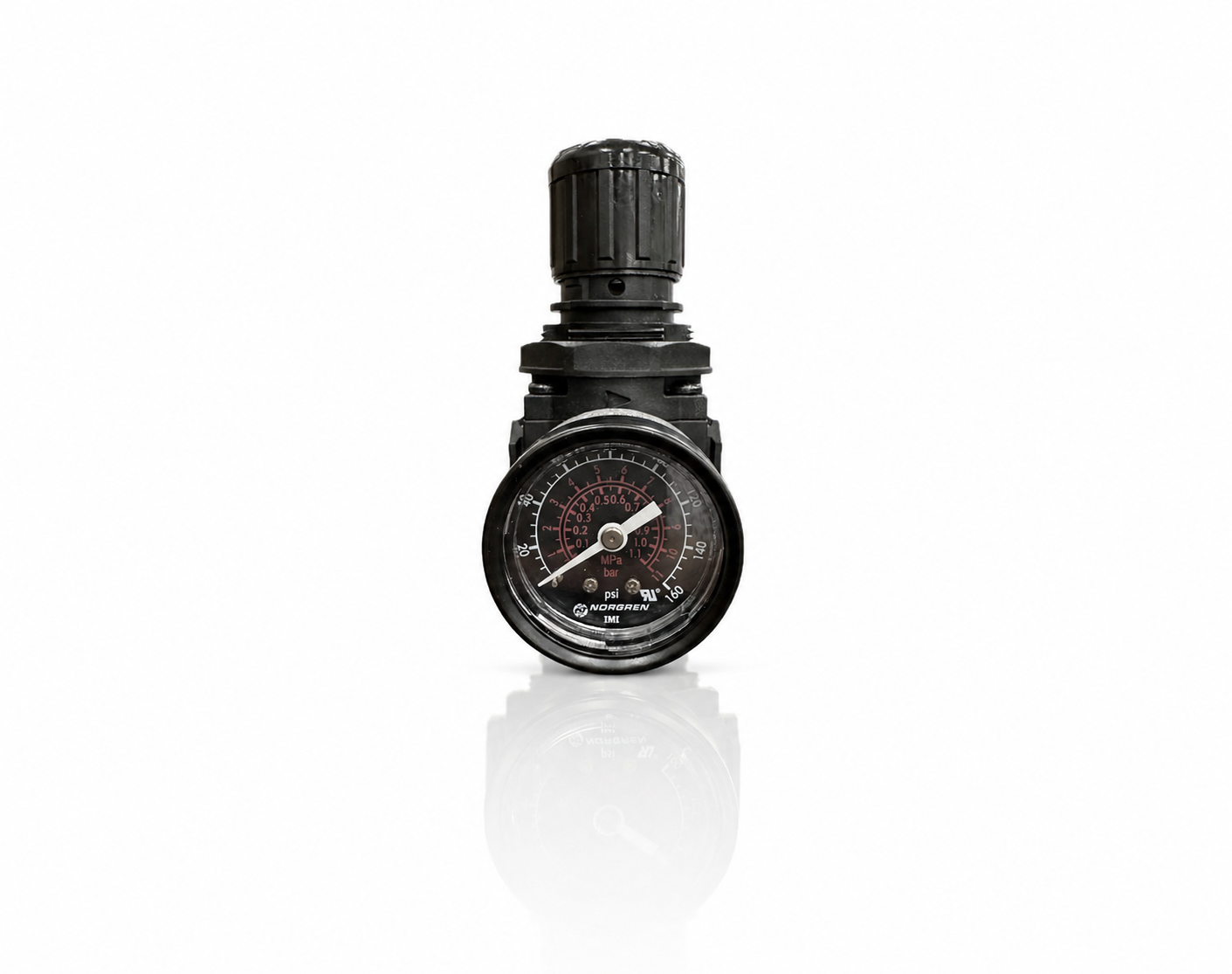

S90R002S90R002 - Regulator with Gauge and Mounting Bracket
S90R002S90R002 - Regulator with Gauge and Mounting Bracket

99-028499-0284 - Air Filter and Dryer Kit
99-028499-0284 - Air Filter and Dryer Kit

S90L006S90L006 - Air Filter - Two-Stage Coalescing
S90L006S90L006 - Air Filter - Two-Stage Coalescing

S90L007S90L007 - Air Dryer - Desiccant-Based
air dryer dessicant based
S90L007S90L007 - Air Dryer - Desiccant-Based



Applications

These are the following gauges, regulators, and filters applications:

Bespoke Regulation

Not at all air bearings have the same needs, and our regulators offer you the flexibility to tune your air supply to match your bearing or work environment’s needs.

Environmental Considerations

Not at all work environments offer air with a sufficiently low-vapor point; our desiccant filters offset this issue.

Product Lifespan

The best way to care for your air bearings in the long term is through preventative maintenance, and that starts with ensuring a clean, dry air supply.
