Bonded Bearings



Bonded Bearings

Rectangular Bonded Air Bearings

New Way® Air Bearings’ Bonded Bearings offers a low-profile version of our flat rectangular bearings that can be adhered in place using our signature vacuum replication process. They’re an essential component to our linear slides that we now sell separately to incorporate into those space constrained linear applications.

The nature of our bonded bearings allows for the use of vacuum pressure to provide accurate positioning of the bearing before bonding into place with epoxy. Once the bearings are secured, you will switch from vacuum to airflow through the porous carbon substrate that makes our bearings truly frictionless.

Air is forced through the millions of submicron holes that are naturally present in our Porous Media Technology™. The passageways constrain the air so that when it reaches the surface, a uniform, stiff cushion forms between the bearing and the opposing surface. This creates no contact motion and is cleanroom compliant since the Porous Media™ also acts as a filter.

Heat and noise are essentially eliminated since parts are never in contact. Crashes are a thing of the past due to the resiliency of porous media and its ability to continue to create stiff air cushions even when the surface is damaged.

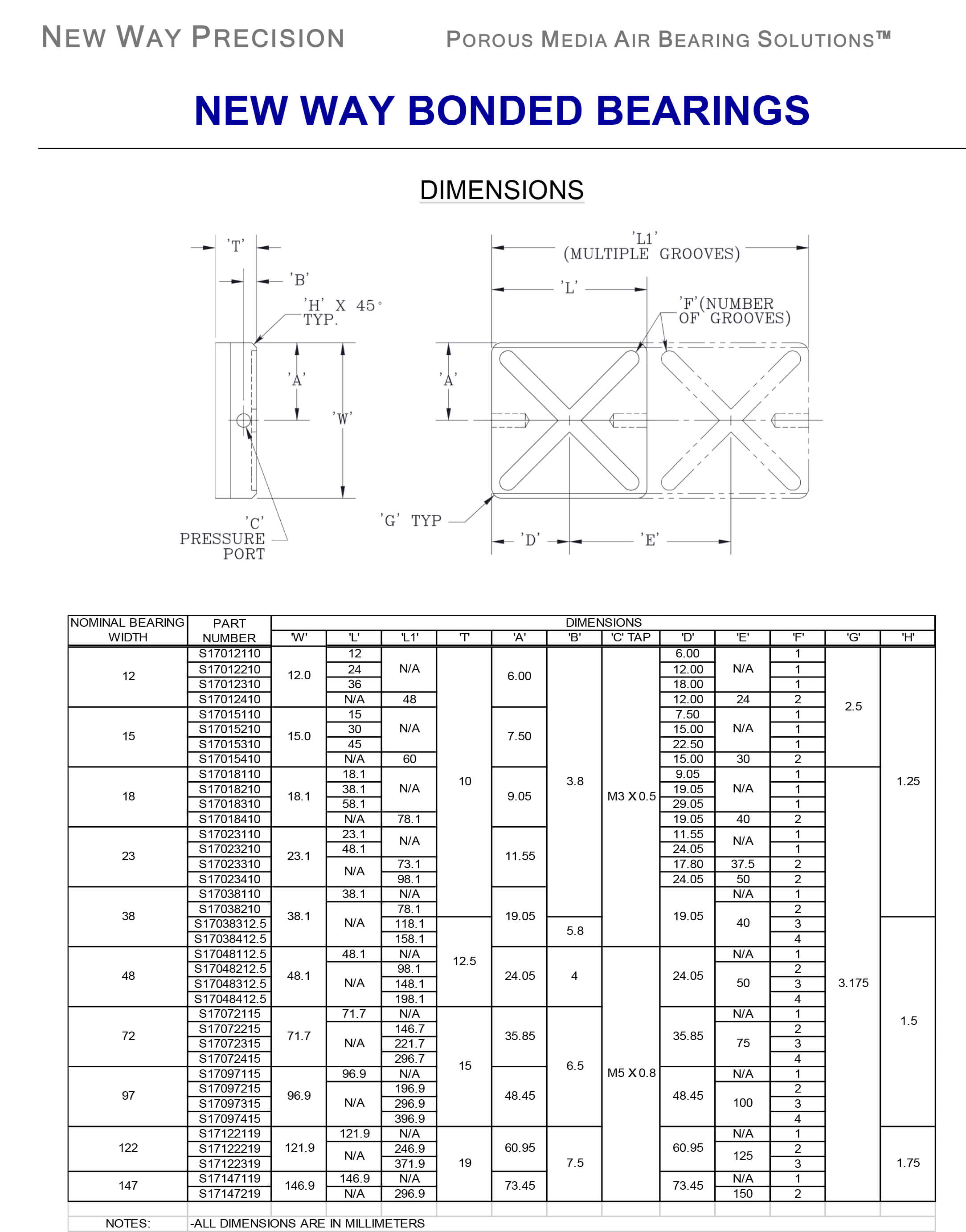

Bonded Bearings Data Sheet

Bonded bearings are available in many sizes to fit your specific application. New Way’s customer support team is standing by 24/7 to discuss your options

Product Line

Our bonded air bearings are perfect for tight spaces and come in a variety of sizes to fit into any manufacturing production line. Contact us today to tell us more about your specific needs.


S17147219S17147219 - S17147219 — 147mm X 297mm Bonded Bearing
Bonded Bearing
S17147219S17147219 - S17147219 — 147mm X 297mm Bonded Bearing

S17147119S17147119 - S17147119 — 147mm X 147mm Bonded Bearing
Bonded Bearing
S17147119S17147119 - S17147119 — 147mm X 147mm Bonded Bearing

S17122319S17122319 - S17122319 — 122mm X 372mm Bonded Bearing
Bonded Bearing
S17122319S17122319 - S17122319 — 122mm X 372mm Bonded Bearing

S17122219S17122219 - S17122219 — 122mm X 247mm Bonded Bearing
Bonded Bearing
S17122219S17122219 - S17122219 — 122mm X 247mm Bonded Bearing

S17122119S17122119 - S17122119 — 122mm X 122mm Bonded Bearing
Bonded Bearing
S17122119S17122119 - S17122119 — 122mm X 122mm Bonded Bearing

S17097415S17097415 - S17097415 — 97mm X 397mm Bonded Bearing
Bonded Bearing
S17097415S17097415 - S17097415 — 97mm X 397mm Bonded Bearing

S17097315S17097315 - S17097315 — 97mm X 297mm Bonded Bearing
Bonded Bearing
S17097315S17097315 - S17097315 — 97mm X 297mm Bonded Bearing

S17097215S17097215 - S17097215 — 97mm X 197mm Bonded Bearing
Bonded Bearing
S17097215S17097215 - S17097215 — 97mm X 197mm Bonded Bearing

S17097115S17097115 - S17097115 — 97mm X 97mm Bonded Bearing
Bonded Bearing
S17097115S17097115 - S17097115 — 97mm X 97mm Bonded Bearing

S17072415S17072415 - S17072415 — 72mm X 297mm Bonded Bearing
Bonded Bearing
S17072415S17072415 - S17072415 — 72mm X 297mm Bonded Bearing

S17072315S17072315 - S17072315 — 72mm X222mm Bonded Bearing
Bonded Bearing
S17072315S17072315 - S17072315 — 72mm X222mm Bonded Bearing

S17072215S17072215 - S17072215 — 72mm X147mm Bonded Bearing
Bonded Bearing
S17072215S17072215 - S17072215 — 72mm X147mm Bonded Bearing

S17072115S17072115 - S17072115 — 72mm X 72mm Bonded Bearing
Bonded Bearing
S17072115S17072115 - S17072115 — 72mm X 72mm Bonded Bearing

S17048412.5S17048412.5 - S17048412.5 — 48mm X 198mm Bonded Bearing
Bonded Bearing
S17048412.5S17048412.5 - S17048412.5 — 48mm X 198mm Bonded Bearing

S17048312.5S17048312.5 - S17048312.5 — 48mm X 148mm Bonded Bearing
Bonded Bearing
S17048312.5S17048312.5 - S17048312.5 — 48mm X 148mm Bonded Bearing

S17048212.5S17048212.5 - S17048212.5 — 48mm X 98mm Bonded Bearing
Bonded Bearing
S17048212.5S17048212.5 - S17048212.5 — 48mm X 98mm Bonded Bearing

S17048112.5S17048112.5 - S17048112.5 — 48mm X 48mm Bonded Bearing
Bonded Bearing
S17048112.5S17048112.5 - S17048112.5 — 48mm X 48mm Bonded Bearing

S17038412.5S17038412.5 - S17038412.5 — 38mm X 158mm Bonded Bearing
Bonded Bearing
S17038412.5S17038412.5 - S17038412.5 — 38mm X 158mm Bonded Bearing

S17038312.5S17038312.5 - S17038312.5 — 38mm X 118mm Bonded Bearing
Bonded Bearing
S17038312.5S17038312.5 - S17038312.5 — 38mm X 118mm Bonded Bearing

S17038210S17038210 - S17038210 — 38mm X 78mm Bonded Bearing
Bonded Bearing
S17038210S17038210 - S17038210 — 38mm X 78mm Bonded Bearing

S17038110S17038110 - S17038110 — 38mm X 38mm Bonded Bearing
Bonded Bearing
S17038110S17038110 - S17038110 — 38mm X 38mm Bonded Bearing

S17023410S17023410 - S17023410 — 23mm X 98mm Bonded Bearing
Bonded Bearing
S17023410S17023410 - S17023410 — 23mm X 98mm Bonded Bearing

S17023310S17023310 - S17023310 — 23mm X 73mm Bonded Bearing
Bonded Bearing
S17023310S17023310 - S17023310 — 23mm X 73mm Bonded Bearing

S17023210S17023210 - S17023210 — 23mm X 48mm Bonded Bearing
Bonded Bearing
S17023210S17023210 - S17023210 — 23mm X 48mm Bonded Bearing

S17023110S17023110 - S17023110 — 23mm X 23mm Bonded Bearing
Bonded Bearing
S17023110S17023110 - S17023110 — 23mm X 23mm Bonded Bearing

S17018410S17018410 - S17018410 — 18mm X 78mm Bonded Bearing
Bonded Bearing
S17018410S17018410 - S17018410 — 18mm X 78mm Bonded Bearing

S17018310S17018310 - S17018310 — 18mm X 58mm Bonded Bearing
Bonded Bearing
S17018310S17018310 - S17018310 — 18mm X 58mm Bonded Bearing

S17018210S17018210 - S17018210 — 18mm X 38mm Bonded Bearing
Bonded Bearing
S17018210S17018210 - S17018210 — 18mm X 38mm Bonded Bearing

S17018110S17018110 - S17018110 — 18mm X 18mm Bonded Bearing
Bonded Bearing
S17018110S17018110 - S17018110 — 18mm X 18mm Bonded Bearing

S17015410S17015410 - S17015410 — 15mm X 60mm Bonded Bearing
Bonded Bearing
S17015410S17015410 - S17015410 — 15mm X 60mm Bonded Bearing

S17015310S17015310 - S17015310 — 15mm X 45mm Bonded Bearing
Bonded Bearing
S17015310S17015310 - S17015310 — 15mm X 45mm Bonded Bearing

S17015210S17015210 - S17015210 — 15mm X 30mm Bonded Bearing
Bonded Bearing
S17015210S17015210 - S17015210 — 15mm X 30mm Bonded Bearing

S17015110S17015110 - S17015110 — 15mm X 15mm Bonded Bearing
Bonded Bearing
S17015110S17015110 - S17015110 — 15mm X 15mm Bonded Bearing

S17012410S17012410 - S17012410 — 12mm X 48mm Bonded Bearing
Bonded Bearing
S17012410S17012410 - S17012410 — 12mm X 48mm Bonded Bearing

S17012310S17012310 - S17012310 — 12mm X 36mm Bonded Bearing
Bonded Bearing
S17012310S17012310 - S17012310 — 12mm X 36mm Bonded Bearing

S17012210S17012210 - S17012210 — 12mm X 24mm Bonded Bearing
Bonded Bearing
S17012210S17012210 - S17012210 — 12mm X 24mm Bonded Bearing

S17012110S17012110 - S17012110 — 12mm X 12 mm Bonded Bearing
Bonded Bearing
S17012110S17012110 - S17012110 — 12mm X 12 mm Bonded Bearing

Units: US METRIC

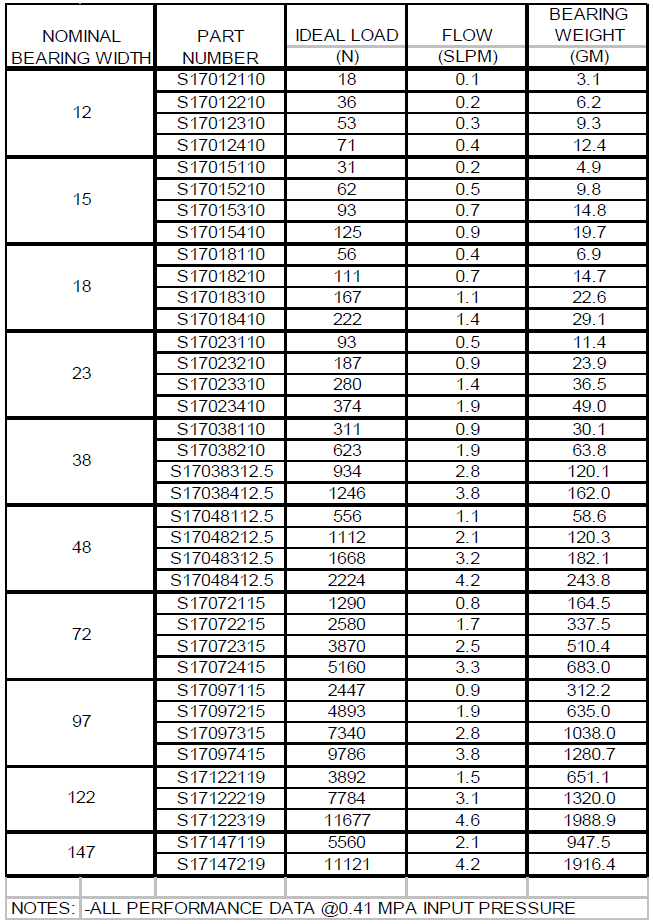

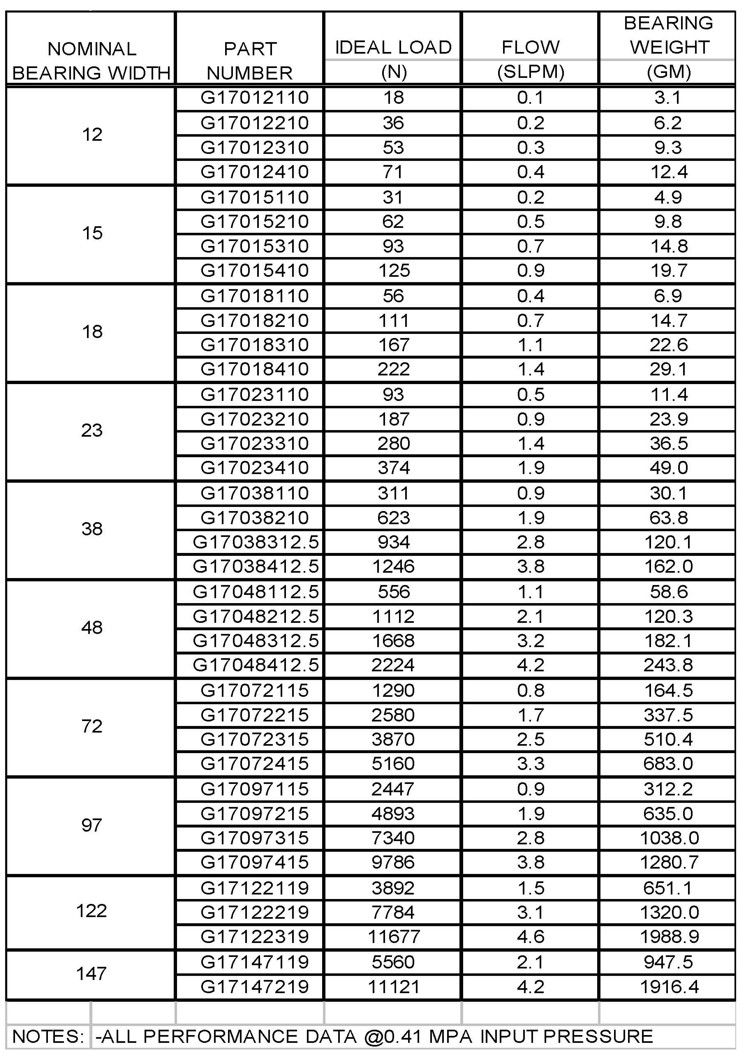

Comparision Table

SKU All performance data @ 0.41 MPA input pressure Width Length Height Ideal Load Flow Bearing Weight # of Grooves Pressure Port Thread
S17147219S17147219
146.9 mm5.78 in. 296.9 mm11.69 in. 19 mm0.75 in. 11121 N2500.1 lbs. 4.2 SLPM0.15 SCFM 1916.4 gm67.6 oz. 22 M5 x 0.8M5 x 0.8
S17147119S17147119
146.9 mm5.78 in. 146.9 mm5.78 in. 19 mm0.75 in. 5560 N1250.0 lbs. 2.1 SLPM0.07 SCFM 947.5 gm33.4 oz. 11 M5 x 0.8M5 x 0.8
S17122319S17122319
121.9 mm4.80 in. 371.9 mm14.64 in. 19 mm0.75 in. 11677 N2625.1 lbs. 4.6 SLPM0.16 SCFM 1988.9 gm70.2 oz. 33 M5 x 0.8M5 x 0.8
S17122219S17122219
121.9 mm4.80 in. 246.9 mm9.72 in. 19 mm0.75 in. 7784 N1749.9 lbs. 3.1 SLPM0.11 SCFM 1320.0 gm46.6 oz. 22 M5 x 0.8M5 x 0.8
S17122119S17122119
121.9 mm4.80 in. 121.9 mm4.80 in. 19 mm0.75 in. 3892 N875.0 lbs. 1.5 SLPM0.05 SCFM 651.1 gm23.0 oz. 11 M5 x 0.8M5 x 0.8
S17097415S17097415
96.9 mm3.81 in. 396.9 mm15.63 in. 15 mm0.59 in. 9786 N2200.0 lbs. 3.8 SLPM0.13 SCFM 1280.7 gm45.2 oz. 44 M5 x 0.8M5 x 0.8
S17097315S17097315
96.9 mm3.81 in. 296.9 mm11.69 in. 15 mm0.59 in. 7340 N1650.1 lbs. 2.8 SLPM0.10 SCFM 1038.0 gm36.6 oz. 33 M5 x 0.8M5 x 0.8
S17097215S17097215
96.9 mm3.81 in. 196.9 mm7.75 in. 15 mm0.59 in. 4893 N1100.0 lbs. 1.9 SLPM0.07 SCFM 635.0 gm22.4 oz. 22 M5 x 0.8M5 x 0.8
S17097115S17097115
96.9 mm3.81 in. 96.9 mm3.81 in. 15 mm0.59 in. 2447 N550.1 lbs. 0.9 SLPM0.03 SCFM 312.2 gm11.0 oz. 11 M5 x 0.8M5 x 0.8
S17072415S17072415
71.7 mm2.82 in. 296.7 mm11.68 in. 15 mm0.59 in. 5160 N1160.0 lbs. 3.3 SLPM0.12 SCFM 683.0 gm24.1 oz. 44 M5 x 0.8M5 x 0.8
S17072315S17072315
71.7 mm2.82 in. 221.7 mm8.73 in. 15 mm0.59 in. 3870 N870.0 lbs. 2.5 SLPM0.09 SCFM 510.4 gm18.0 oz. 33 M5 x 0.8M5 x 0.8
S17072215S17072215
71.7 mm2.82 in. 146.7 mm5.78 in. 15 mm0.59 in. 2580 N580.0 lbs. 1.7 SLPM0.06 SCFM 337.5 gm11.9 oz. 22 M5 x 0.8M5 x 0.8
S17072115S17072115
71.7 mm2.82 in. 71.7 mm2.82 in. 15 mm0.59 in. 1290 N290.0 lbs. 0.8 SLPM0.03 SCFM 164.5 gm5.80 oz. 11 M5 x 0.8M5 x 0.8
S17048412.5S17048412.5
48.1 mm1.89 in. 198.1 mm7.80 in. 12.5 mm0.49 in. 2224 N500.0 lbs. 4.2 SLPM0.15 SCFM 243.8 gm8.60 oz. 44 M5 x 0.8M5 x 0.8
S17048312.5S17048312.5
48.1 mm1.89 in. 148.1 mm5.83 in. 12.5 mm0.49 in. 1668 N375.0 lbs. 3.2 SLPM0.11 SCFM 182.1 gm6.42 oz. 33 M5 x 0.8M5 x 0.8
S17048212.5S17048212.5
48.1 mm1.89 in. 98.1 mm3.86 in. 12.5 mm0.49 in. 1112 N250.0 lbs. 2.1 SLPM0.07 SCFM 120.3 gm4.24 oz. 22 M5 x 0.8M5 x 0.8
S17048112.5S17048112.5
48.1 mm1.89 in. 48.1 mm1.89 in. 12.5 mm0.49 in. 556 N125.0 lbs. 1.1 SLPM0.04 SCFM 58.6 gm2.07 oz. 11 M5 x 0.8M5 x 0.8
S17038412.5S17038412.5
38.1 mm1.5 in. 158.1 mm6.22 in. 12.5 mm0.49 in. 1246 N280.1 lbs. 3.8 SLPM0.13 SCFM 162.0 gm5.71 oz. 44 M3 x 0.5M3 x 0.5
S17038312.5S17038312.5
38.1 mm1.5 in. 118.1 mm4.65 in. 12.5 mm0.49 in. 934 N210.0 lbs. 2.8 SLPM0.1 SCFM 120.1 gm4.24 oz. 33 M3 x 0.5M3 x 0.5
S17038210S17038210
38.1 mm1.5 in. 78.1 mm3.07 in. 10 mm0.39 in. 623 N140.1 lbs. 1.9 SLPM0.07 SCFM 63.8 gm2.25 oz. 22 M3 x 0.5M3 x 0.5
S17038110S17038110
38.1 mm1.5 in. 38.1 mm1.5 in. 10 mm0.39 in. 311 N69.9 lbs. 0.9 SLPM0.03 SCFM 30.1 gm1.06 oz. 11 M3 x 0.5M3 x 0.5
S17023410S17023410
23.1 mm0.91 in. 98.1 mm3.86 in. 10 mm0.39 in. 374 N84.1 lbs. 1.9 SLPM0.07 SCFM 49.0 gm1.73 oz. 22 M3 x 0.5M3 x 0.5
S17023310S17023310
23.1 mm0.91 in. 73.1 mm2.88 in. 10 mm0.39 in. 280 N62.9 lbs. 1.4 SLPM0.05 SCFM 36.5 gm1.29 oz. 22 M3 x 0.5M3 x 0.5
S17023210S17023210
23.1 mm0.91 in. 48.1 mm1.89 in 10 mm0.39 in. 187 N42.0 lbs. 0.9 SLPM0.03 SCFM 23.9 gm0.84 oz. 11 M3 x 0.5M3 x 0.5
S17023110S17023110
23.1 mm0.91 in. 23.1 mm0.91 in. 10 mm0.39 in. 93 N20.9 lbs. 0.5 SLPM0.02 SCFM 11.4 gm0.40 oz. 11 M3 x 0.5M3 x 0.5
S17018410S17018410
18.1 mm0.71 in. 78.1 mm3.07 in. 10 mm0.39 in. 222 N49.9 lbs. 1.4 SLPM0.5 SCFM 29.1 gm1.03 oz. 22 M3 x 0.5M3 x 0.5
S17018310S17018310
18.1 mm0.71 in. 58.1 mm2.29 in. 10 mm0.39 in. 167 N37.5 lbs. 1.1 SLPM0.04 SCFM 22.6 gm0.80 oz. 11 M3 x 0.5M3 x 0.5
S17018210S17018210
18.1 mm0.71 in. 38.1 mm1.5 in. 10 mm0.39 in. 111 N25.0 lbs. 0.7 SLPM0.025 SCFM 14.7 gm0.52 oz. 11 M3 x 0.5M3 x 0.5
S17018110S17018110
18.1 mm0.71 in. 18.1 mm0.71 in. 10 mm0.39 in. 56 N12.6 lbs. 0.4 SLPM0.014 SCFM 6.9 gm0.24 oz. 11 M3 x 0.5M3 x 0.5
S17015410S17015410
15 mm0.59 in. 60 mm2.36 in. 10 mm0.39 in. 125 N28.1 lbs. 0.9 SLPM0.032 SCFM 19.7 gm0.69 lbs. 22 M3 x 0.5M3 x 0.5
S17015310S17015310
15 mm0.59 in. 45 mm1.77 in. 10 mm0.39 in. 93 N20.91 lbs. 0.7 SLPM0.025 SCFM 14.8 gm0.52 oz. 11 M3 x 0.5M3 x 0.5
S17015210S17015210
15 mm0.59 in. 30 mm1.18 in. 10 mm0.39 in. 62 N13.94 lbs. 0.5 SLPM0.018 SCFM 9.8 gm0.35 oz. 11 M3 x 0.5M3 x 0.5
S17015110S17015110
15 mm0.59 in. 15 mm0.59 in. 10 mm0.39 in. 31 N6.97 lbs. 0.2 SLPM0.007 SCFM 4.9 gm0.17 oz. 11 M3 x 0.5M3 x 0.5
S17012410S17012410
12 mm0.47 in. 48 mm1.89 in. 10 mm0.39 in. 71 N15.96 lbs. 0.4 SLPM0.014 SCFM 12.4 gm0.44 oz. 22 M3 x 0.5M3 x 0.5
S17012310S17012310
12 mm0.47 in. 36 mm1.42 in. 10 mm0.39 in. 53 N11.91 lbs. 0.3 SLPM0.01 SCFM 9.3 gm0.33 oz. 11 M3 x 0.5M3 x 0.5
S17012210S17012210
12 mm0.47 in. 24 mm0.94 in. 10 mm0.39 in. 36 N8.09 lbs. 0.2 SLPM0.007 SCFM 6.2 gm0.22 oz. 11 M3 x 0.5M3 x 0.5
S17012110S17012110
12 mm0.47 in. 12 mm0.47 in. 10 mm0.39 in. 18 N4.05 lbs. 0.1 SLPM0.004 SCFM 3.1 gm0.11 oz. 11 M3 x 0.5M3 x 0.5


  • Nano-precision positioning
  • Low profile
  • Crash resistant
  • Cleanroom compliant
  • No noise
  • Frictionless motion
  • No vibration
  • No wear
