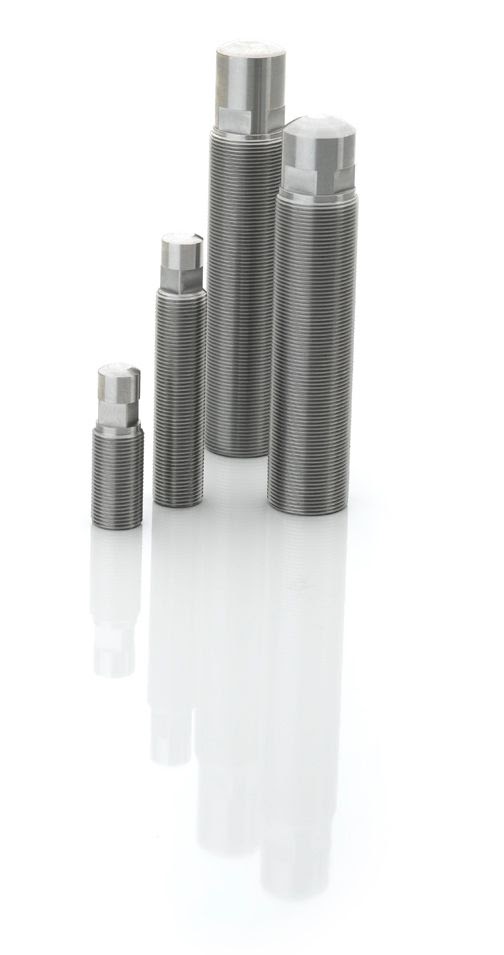

New Way® Ball Mounting Screw Flat Ends allow for precision adjustments in space-constrained systems. Crafted from stainless steel, these components range in size from the 6mm S8006B01 up to the 40mm S8040B01. Ball Mounting Screw Flat Ends are compatible with New Way’s Flat Round Air Bearings and Flat Rectangular Air Bearings via our Nut Housing Assemblies.

Ball mounting screw flat ends allow for versatile height adjustments, even under heavy loads. Since the flat-end diameter is smaller than the thread diameter, it can be threaded into the nut housing or a tapped hole from either end. Adjustable with a hex key at the top, and a wrench flat at the bottom, these components are ideal for processes that require frequent assembly changes.

  • 416-grade stainless steel
  • Fits multiple air bearing products
  • Straightforward installation
  • Robust, Gimballed Design
  • Simple Alignment
  • Easy to Adjust

Applications

New Way Ball Mounting Screw Flat Ends can be applied in a number of ways:

Heavy Loads
  • Point-mounted design easily manages heavy loads without risk of deflection or other performance impacts
Frequent Assembly Changes
  • Small flat end diameter makes replacement quick and painless
  • Rounded design provides excellent flexibility and tolerance
Versatile Height Adjustment
  • Two-point adjustment access allows for quick manipulation in constrained spaces
  • Available in eight standard sizes

Product Line

New Way Ball Mounting Screw Flat Ends are available in eight standard sizes to provide a flexible platform for any air bearing configuration. Don’t see the size you need? Contact us to discuss a custom order!


S8040B01S8040B01 - 40mm Diameter / M30x0.75 x 120mm lg Ball Mounting Screws Flat End
S8040B01S8040B01 - 40mm Diameter / M30x0.75 x 120mm lg Ball Mounting Screws Flat End

S8025B05S8025B05 - 25mm Diameter / M16x0.75 x 84mm lg Ball Mounting Screws Flat End
S8025B05S8025B05 - 25mm Diameter / M16x0.75 x 84mm lg Ball Mounting Screws Flat End

S8020B03S8020B03 - 20mm Diameter / M16x0.75 x 77mm lg Ball Mounting Screws Flat End
S8020B03S8020B03 - 20mm Diameter / M16x0.75 x 77mm lg Ball Mounting Screws Flat End

S8013B11S8013B11 - 13mm Diameter / M10x0.75 x 54mm lg Ball Mounting Screws Flat End
S8013B11S8013B11 - 13mm Diameter / M10x0.75 x 54mm lg Ball Mounting Screws Flat End

S8013B14S8013B14 - 13mm Diameter / M10x0.75 x 32mm lg Ball Mounting Screws Flat End
S8013B14S8013B14 - 13mm Diameter / M10x0.75 x 32mm lg Ball Mounting Screws Flat End

S8013B15S8013B15 - 13mm Diameter / M10x0.50 x 54mm lg Ball Mounting Screws Flat End
S8013B15S8013B15 - 13mm Diameter / M10x0.50 x 54mm lg Ball Mounting Screws Flat End

S8013B16S8013B16 - 13mm Diameter / M10x0.50 x 32mm lg Ball Mounting Screws Flat End
S8013B16S8013B16 - 13mm Diameter / M10x0.50 x 32mm lg Ball Mounting Screws Flat End

S8006B01S8006B01 - 6mm Diameter / M5x0.80 x 27.5mm lg Ball Mounting Screws Flat End
S8006B01S8006B01 - 6mm Diameter / M5x0.80 x 27.5mm lg Ball Mounting Screws Flat End
