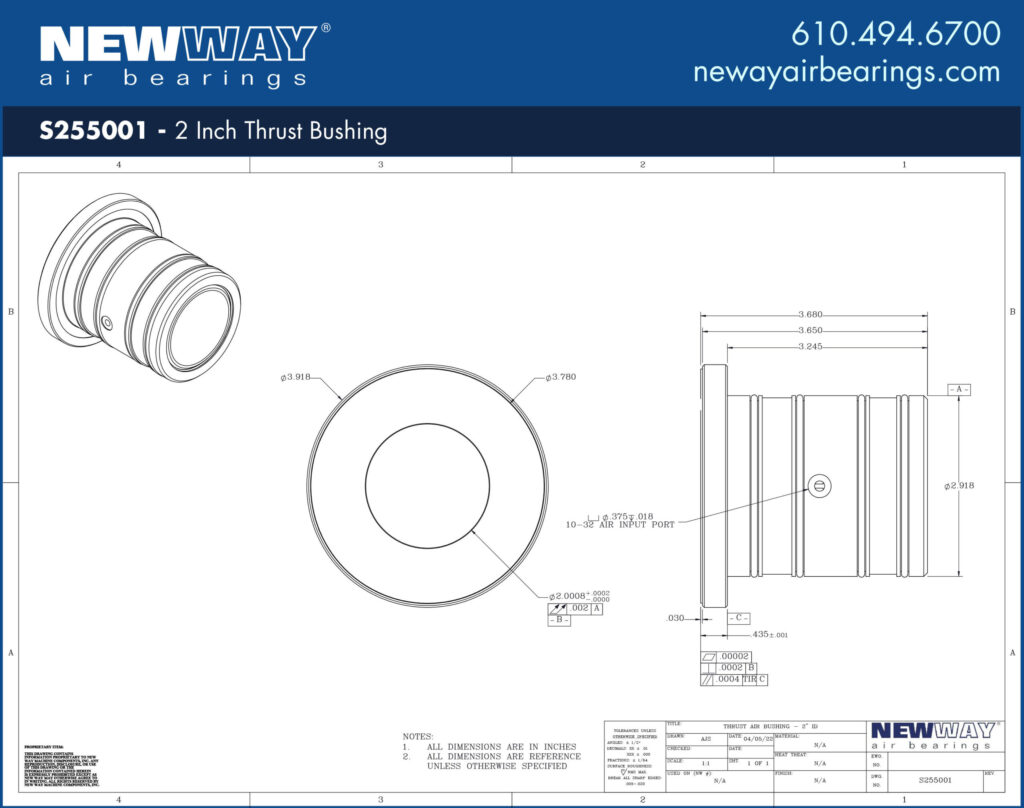

S255001S255001 – 2 Inch Thrust Bushing


2 Inch Thrust Bushing

2 Inch Thrust Bushing
S255001S255001

S255001 Thrust Bushings makes air bearing technology readily available to engineers who require radial motion with axial constraint. The S255001 runs on a standard imperial precision machined steel shaft.
Contact us today to start improving your rotary applications!

Units: US METRIC
TitleSpecifications
Size2.00 Inch ID2.00 Inch ID
SKUS255001S255001
Input Pressure60 psi0.41 MPa
Radial Load Max220 lbs979 N
Thrust Load Max240 lbs1067 N
Axial StiffnessN/AN/A
Radial Stiffness0.63 lb/μin110 N/μm
Flowrate on Shaft19.0 - 30.0 SCFH8.97 - 14.16 NLPM
Air Gap150 micro-inches3.81 microns
Thrust Bushing2.0008 in +.0002/-.000050.820 +0.005/-0.000 mm
Bushing Outside2.9 in74 mm
Thrust Face3.92 in100 mm
Thrust Bushing Length3.680 in93.5 mm
Thrust Bushing WeightN/AN/A
Housing Material/FinishAluminum/AnodizedAluminum/Anodized
Porous Media MaterialCarbonCarbon
Recommended Shaft2.0000 in -.0004/-.0011 in (g6)50.800 mm -10/-29 μm (g6)
Recommended Mounting Bore2.945 in +.005/-.00074.80 mm +.13/-.00
Maximum Allowable Pressure Supply100 psi0.689 MPa
ResolutionInfiniteInfinite
Maximum Speed164 ft/s50 m/sec
Common Shaft MaterialsAnodized aluminum, stainless steel, nickel plated steel, ceramics, glassAnodized aluminum, stainless steel, nickel plated steel, ceramics, glass
