Air Bars



Air Bars

New Way® Air Bars offer an air bearing solution for conveyors. Through the use of our proven Porous Media TechnologyTM, large substrates, such as glass, are conveyed via a thin but stiff, layer of air, making no contact with the bearing surface. This patented technology offers a level of precision unavailable to conventional or orifice-based designs.

Improved Precision

By offering four different product lines, New Way Air Bars are able to provide varying levels of control to meet the needs of a wide range of precision and customer-needs.

Positive Air (PA) Series

The PA-series is our most fundamental air bar conveying substrates with air pressure, ensuring a non-contact experience.

Transition (T) series

The T-series introduces the use of vacuum to flatten and control the glass utilizing a balance of air pressure and a single groove of vacuum holes.

High-Speed (H) series

The H-series improves upon the T-series through the use of four grooves of vacuum holes. The large, attractive forces result in excellent flattening ability that helps maintain control of the glass at high speeds.

Precision Zone

The Precision Zone bar measures up to its name as our highest level of precision for fly height and control range, ideal for inspecting and analyzing specific areas of interest. The design ensures the vacuum pressure and air gaps are the same across the entire bar. This superior stability enables analysis and inspection of a greater percentage of the entire glass sheet.

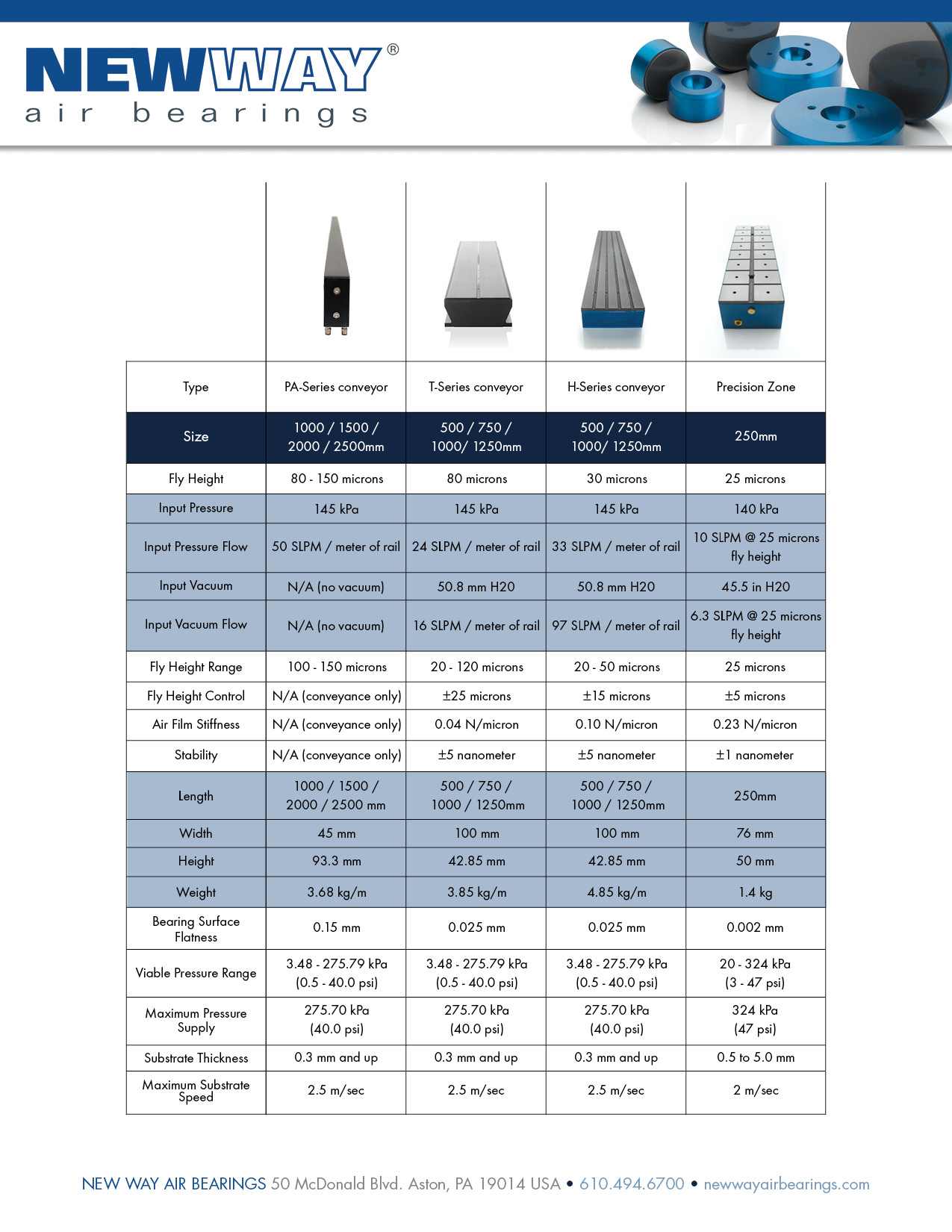

Click to view full-size Conveyor Chart

Non-Contact Conveyors

All four air bar product lines convey without contact making them ideal for products requiring coatings, as well as minimizing concerns of contamination. Even in the event of an air supply loss, the porous media allows for slow diffusing of the air. Coupling this with the soft-features of the carbon face, glass scratching and damage is reduced yielding greater production.

Clean Room Compliant

The unique use of porous media in air bars makes them ideal for clean room use. Not only is less air used in air bars when compared to orifice-based air bearings, but the air is evenly distributed by the porous media. Both of these features minimize the potential of currents or eddies in the clean room and its damaging impacts on production.

Another benefit of the use of porous media is its ability to perform as a sub-micron filter for the air emitted. Testing indicates the bearing satisfies the requirements of Class 1 (ISO class 3) cleanliness, with airborne particulate concentrate limits of less than 1,000 x 0.1μm particles / m3.

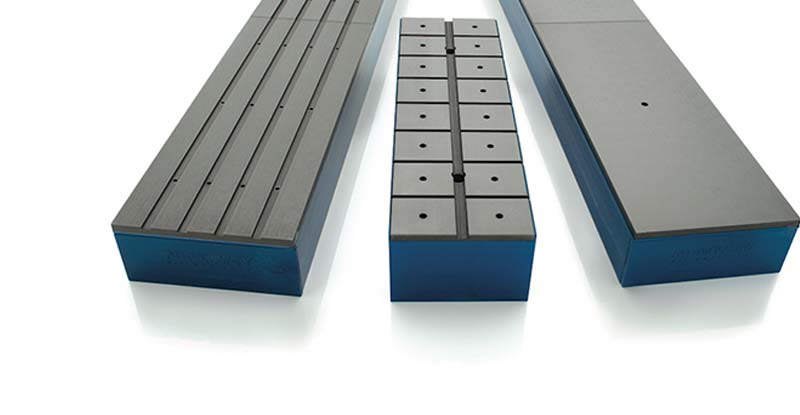

Air Bar Product Line

Non-contact conveyance is offered through four different product lines. Each air bar line is available in several standard sizes as well as any custom size, providing flexibility to arrange the bars as necessary to accommodate a large range of substrate sizes. Often, two or more air bar lines are integrated together to perform an end-to-end system of conveying, processing and/or inspection of the substrate.


S22100T1250S22100T1250 - 1250mm Transition Zone Air Bar
1250mm transition zone air bar
S22100T1250S22100T1250 - 1250mm Transition Zone Air Bar

S22100T1000S22100T1000 - 1000mm Transition Zone Air Bar
1000 transition zone air bar
S22100T1000S22100T1000 - 1000mm Transition Zone Air Bar

S22100T750S22100T750 - 750mm Transition Zone Air Bar
750mm transition zone air bar
S22100T750S22100T750 - 750mm Transition Zone Air Bar

S22100T500S22100T500 - 500mm Transition Zone Air Bar
500mm transition zone air bar
S22100T500S22100T500 - 500mm Transition Zone Air Bar

S2225401S2225401 - 250mm x 76mm - Precision Zone Air Bars
250mm x 76mm precision zone air bars
S2225401S2225401 - 250mm x 76mm - Precision Zone Air Bars

Units: US METRIC

Comparision Table

Size Part # Input Pressure Air Firm Stiffness Length Width Height Weight
1250mm1250mm
S22100T1250S22100T1250 21.0 psi145 kPa 0.21 lbs/μ in0.04 N/micron 49.21 in1250 mm 3.94 in100 mm 1.69 in42.85 mm 11.9 lbs5.39 kg
1000mm1000mm S22100T1000S22100T1000 21.0 psi145 kPa 0.21 lbs/μ in0.04 N/micron 39.57 in1005 mm 3.94 in100 mm 1.69 in42.85 mm 9.5 lbs4.31 kg
750mm750mm S22100T750S22100T750 21.0 psi145 kPa 0.21 lbs/μ in0.04 N/micron 29.53 in750 mm 3.94 in100 mm 1.69 in42.85 mm 7.10 lbs3.23 kg
500mm500mm S22100T500S22100T500 21.0 psi145 kPa 0.21 lbs/μ in0.04 N/micron 19.88 in505 mm 3.94 in100 mm 1.69 in42.85 mm 4.70 lbs2.15 kg
250mm250mm
S2225401S2225401 20 psi0.14 MPa 1.31 lbs/µ in0.23 N/micron 9.84 in250 mm 3.0 in76 mm 1.97 in50 mm 3.08 lbs1.4 kg


  • No Contact
  • Clean Room Class 1 compliant
  • No wear
  • Superior stiffness
  • Excellent substrate control
  • No Contamination
  • High-precision fly height
  • Low airflow
  • No vibration
  • High-speed

Applications

Non-contact conveyance is offered through four different product lines. Each air bar line is available in several standard sizes as well as any custom size, providing flexibility to arrange the bars as necessary to accommodate a large range of substrate sizes. Often, two or more air bar lines are integrated together to perform an end-to-end system of conveying, processing and/or inspection of the substrate.

Flat Panel Display
  • The evenness presented through Porous Media Technology reduces glass scratching and breakage
  • High-precision controlled operations with repeatable stability improve glass production yield and quality
Solar Modules
  • An industry driven by precision, the use of air bars minimizes contamination and damage to the solar cells.
  • Stable, controlled operation permits non-contact and precision handling of large sheets of cells.
Inspection
  • Use of vacuum permits greater control of the substrate enabling greater confidence in the inspection process to avoid defective products making it to market
  • Precision Zone Air Bars are ideal for areas requiring ultra-high precision across a larger portion of the substrate
Developmental Concepts

In our high-tech world, not only are customers looking for a high-speed linear conveyor with ultra-precision, but more customers are utilizing coatings. New Way prides itself on the ability to work directly with customers to adapt our non-contact, frictionless products like air bars to a customer’s particular problem set.
