S90R002S90R002 – Regulator with Gauge and Mounting Bracket

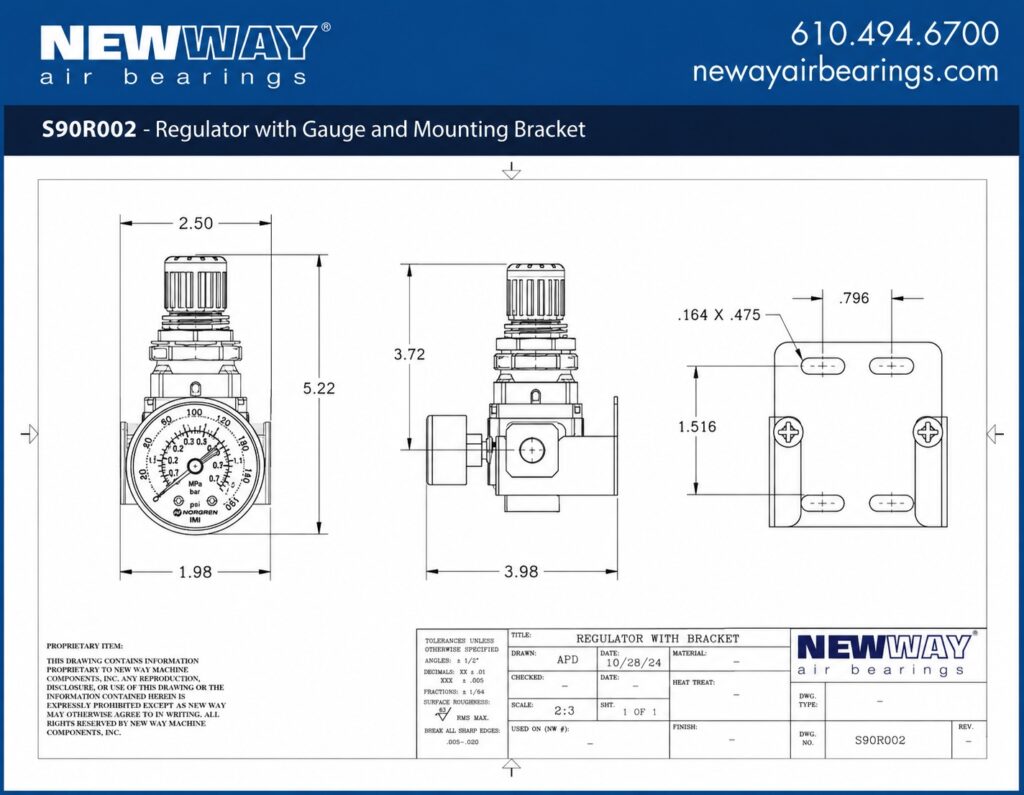

Regulator with Gauge and Mounting Bracket

Regulator with Gauge and Mounting Bracket
S90R002S90R002

For applications without access to ‘Shop Air,’ or those for which the compressed air available at a facility is not Clean Dry Air (CDA), New Way offers the regulator, gage and filter components necessary to build an appropriate air supply. This regulator, gage and bracket allows for the adjustment of air pressure to your air bearings by means of a simple control knob. Typically New Way Air Bearings use compressed air at 60psi, but different products and applications often call for different air supply pressures.

Units: US METRIC
Title Specifications
SKU S90R002S90R002
Inlet Pressure Maximum 300 PSIG21 BAR
Outlet Pressure Range 5-150 PSIG0.3-10 BAR
Operating Temperature Maximum 150 F65 C

Attachments:
