SS-150SS-150 – 150mm “T” Series Air Spindle

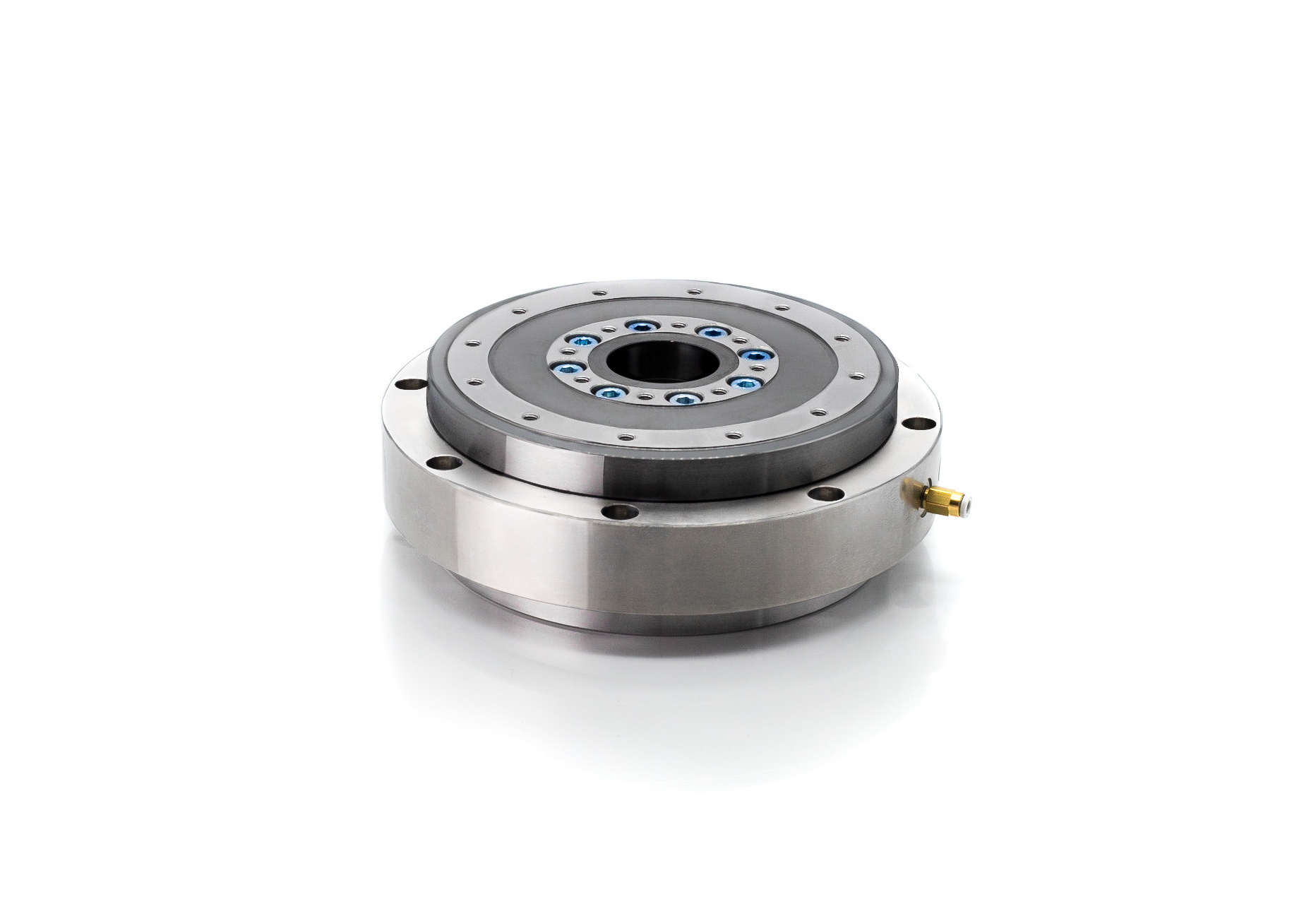

150mm "T" Series Air Spindle
SS-150SS-150

The “T-Series” Spindles are an ideal assembly for building frictionless rotary motion, New Way spindles provide a fast, effective, precision out of the box solution. In either square or round stator configurations, this new product line gives you all the differential advantages of New Way porous media technology.

For Specifications contact New Way Technical Support at: 610.364.3465.

Units: US METRIC
TitleSpecifications
Size5.9 in150 mm
SKUSS-150SS-150
Input Pressure60psi0.41 MPa
Axial Load312 lbs1387 (N)
Radial Load89 lbs396 (N)
Axial and Radial Error Motion3.9 μin0.1 (uM)
Max. Speed6586 (RPM)6586 (RPM)
Average No Load Flow51.0 SCFH24.1 NLPM

Attachments:
