SS-100SS-100 – 100mm “T” Series Air Spindle

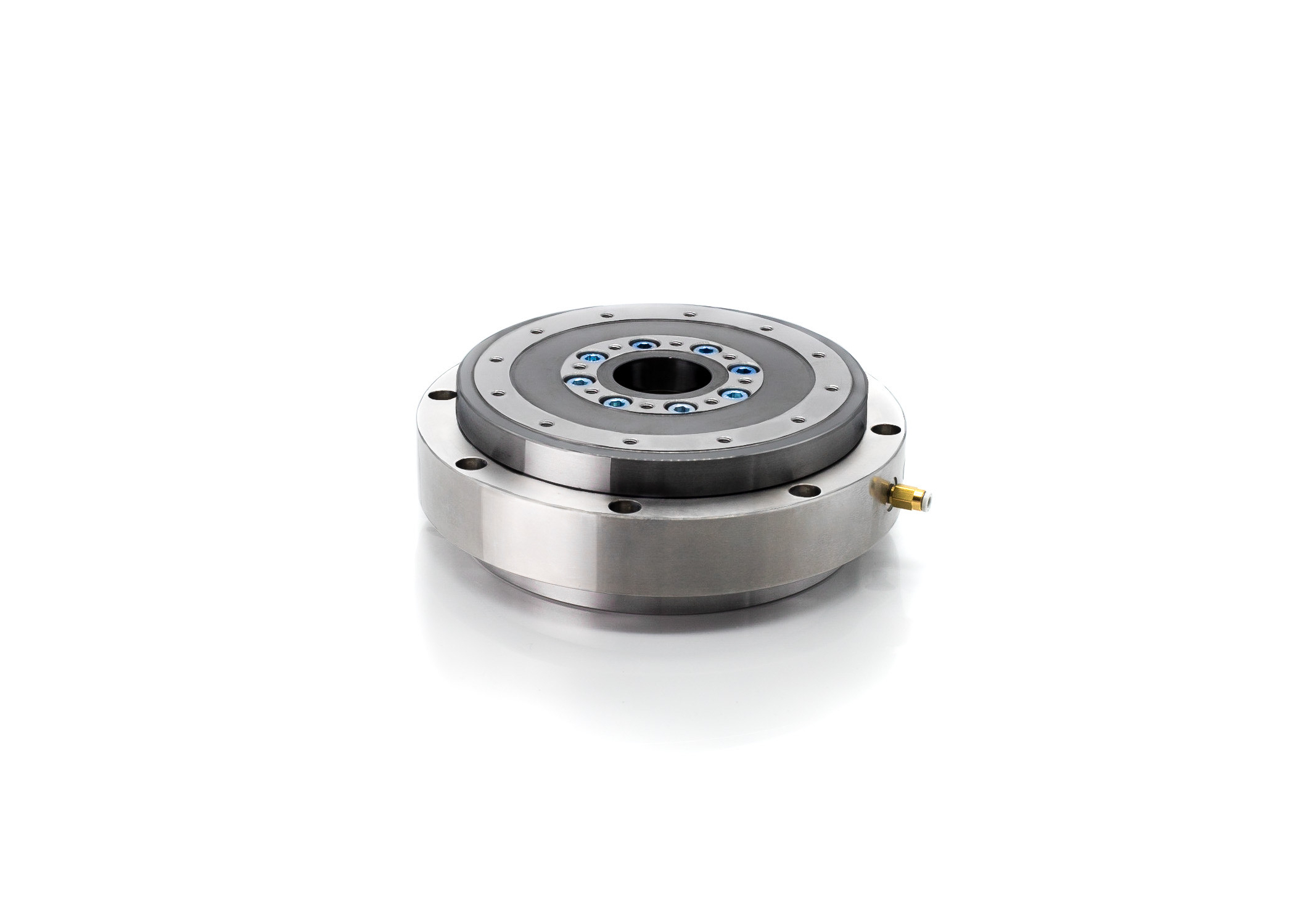

100mm “T” Series Air Spindle

100mm "T" Series Air Spindle
SS-100SS-100

The “T-Series” Spindles are an ideal assembly for building frictionless rotary motion, New Way spindles provide a fast, effective, precision out of the box solution. In either square or round stator configurations, this new product line gives you all the differential advantages of New Way porous media technology.

For Specifications contact New Way Technical Support at: 610.364.3465.

Units: US METRIC
Title Specifications
Size 3.9 in100 mm
SKU SS-100SS-100
Input Pressure 60 psi0.41 MPa
Axial Load 132 lbs585 (N)
Radial Load 49 lbs216 (N)
Axial and Radial Error Motion 3.9 μin0.1 (uM)
Max. Speed 9554 (RPM)9554 (RPM)
Average No Load Flow 34.0 SCFH14.70 NLPM

Attachments:

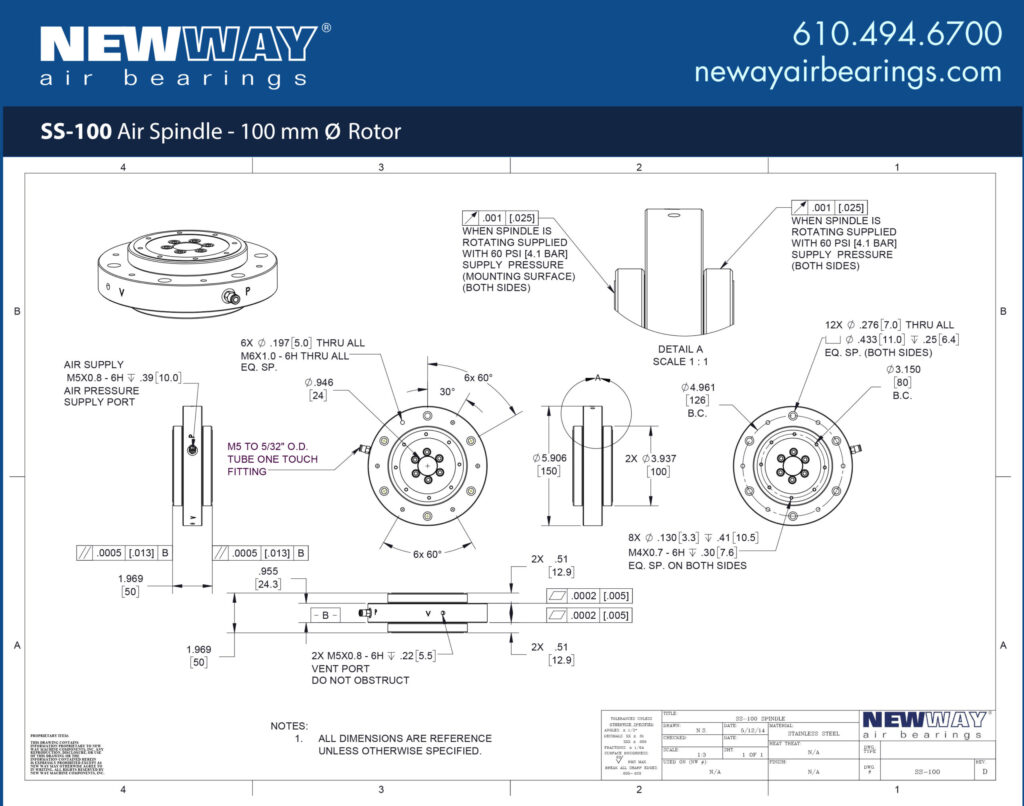

SS-100 Drawing
