S17012110S17012110 – 12mm X 12 mm Bonded Bearing

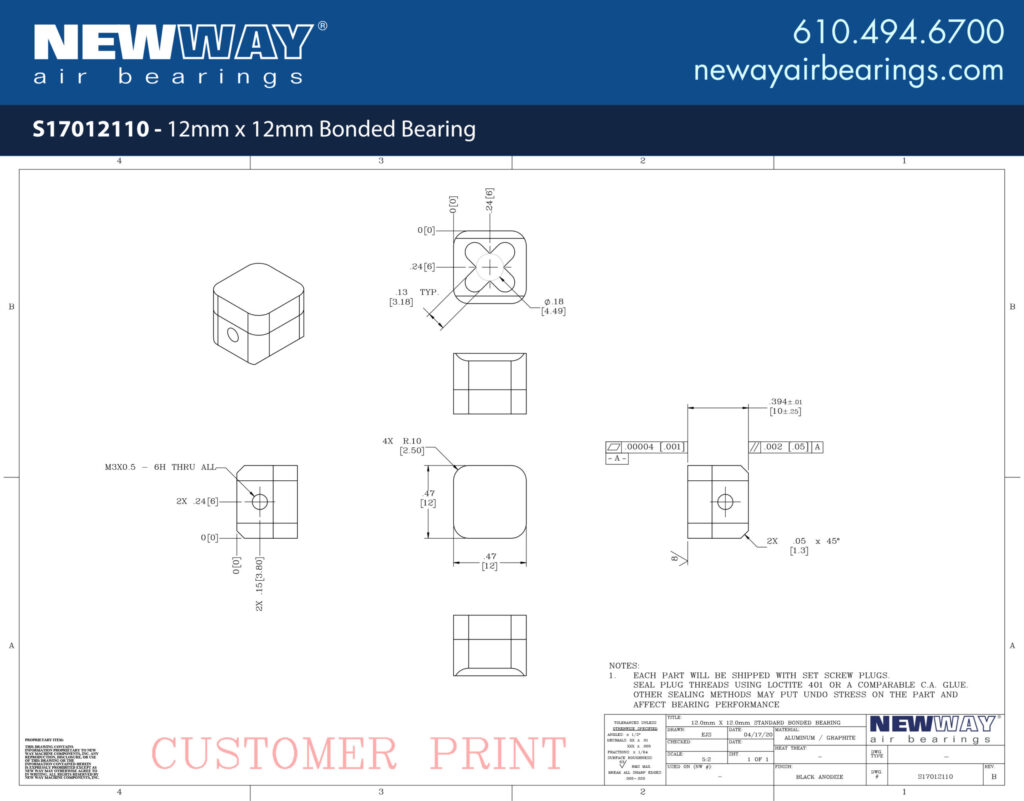

12mm X 12 mm Bonded Bearing

12mm X 12 mm Bonded Bearing
S17012110S17012110

New Way’s 12mm x 12mm Bonded Bearing offers a solution for space-constrained linear applications. Bonded bearings are a low-profile version of our flat rectangular bearings as well as a critical component of our popular Linear Slides. Sold as a standalone component, bonded bearings are able to be positioned accurately through the use of vacuum replication prior to bonding the bearing into place.

Contact us today at 610.494.6700 for more information on using bonded bearings in your application!

Units: US METRIC
TitleSpecifications
SKUS17012110S17012110
Width12 mm0.47 in.
Length12 mm0.47 in.
Height10 mm0.39 in.
Ideal Load18 N4.05 lbs.
Flow0.1 SLPM0.004 SCFM
Bearing Weight3.1 gm0.11 oz.
# of Grooves11
Pressure Port ThreadM3 x 0.5M3 x 0.5
