S17012410S17012410 – 12mm X 48mm Bonded Bearing

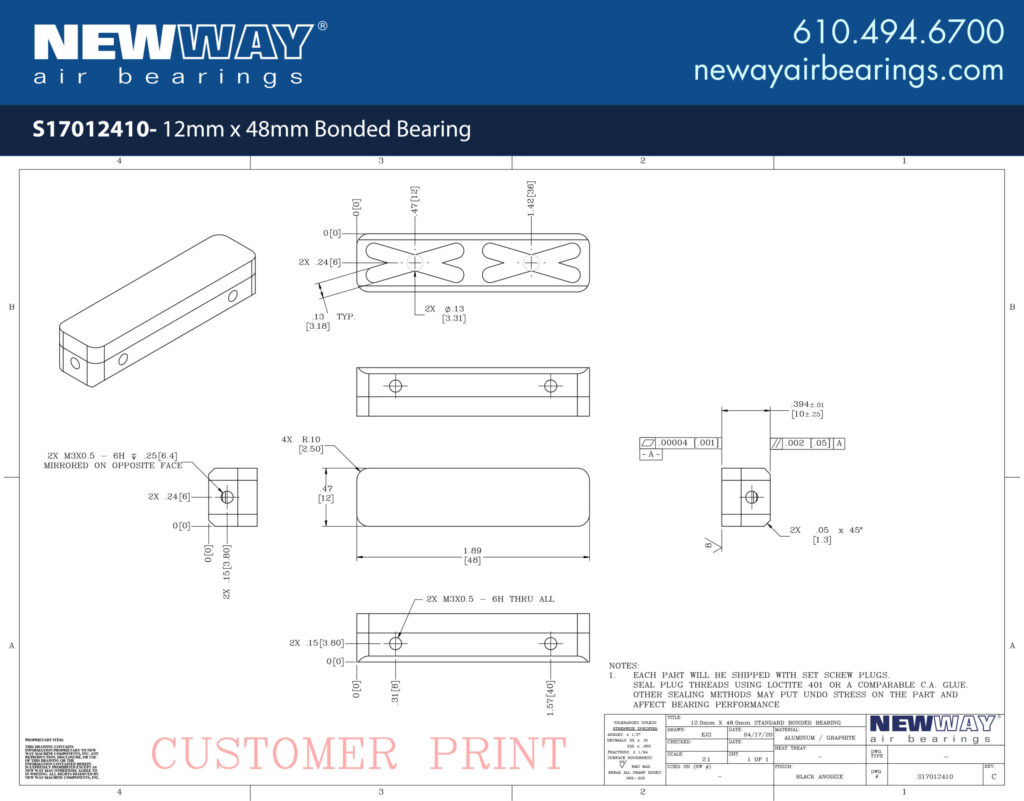

12mm X 48mm Bonded Bearing

12mm X 48mm Bonded Bearing
S17012410S17012410

New Way’s 12mm x 48mm Bonded Bearing offers a solution for space-constrained linear applications. Bonded bearings are a low-profile version of our flat rectangular bearings as well as a critical component of our popular Linear Slides. Sold as a standalone component, bonded bearings are able to be positioned accurately through the use of vacuum replication prior to bonding the bearing into place. The large length size relative to the width is accommodated through an additional set of air grooves to ensure even distribution of air for optimum performance.

Contact us today at 610.494.6700 for more information on using bonded bearings in your application!

Units: US METRIC
TitleSpecifications
SKUS17012410S17012410
Width12 mm0.47 in.
Length48 mm1.89 in.
Height10 mm0.39 in.
Ideal Load71 N15.96 lbs.
Flow0.4 SLPM0.014 SCFM
Bearing Weight12.4 gm0.44 oz.
# of Grooves22
Pressure Port ThreadM3 x 0.5M3 x 0.5
