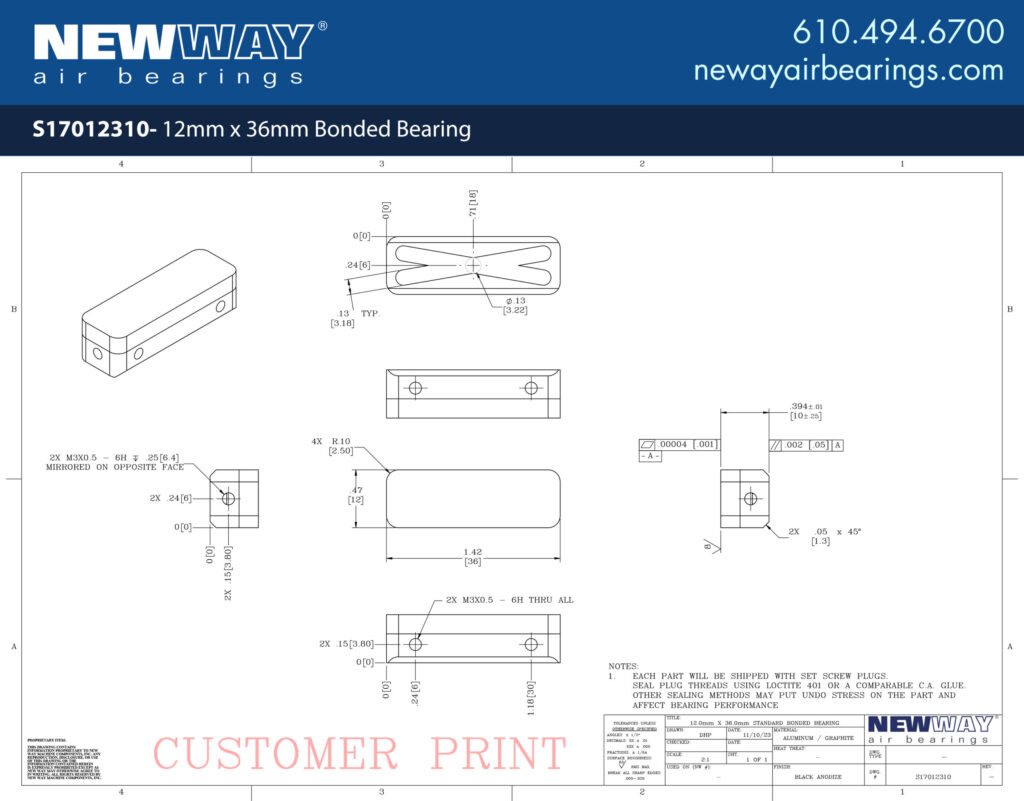

S17012310S17012310 – 12mm X 36mm Bonded Bearing


12mm X 36mm Bonded Bearing

12mm X 36mm Bonded Bearing
S17012310S17012310

New Way’s 12mm x 36mm Bonded Bearing offers a solution for space-constrained linear applications. Bonded bearings are a low-profile version of our flat rectangular bearings as well as a critical component of our popular Linear Slides. Sold as a standalone component, bonded bearings are able to be positioned accurately through the use of vacuum replication prior to bonding the bearing into place.

Contact us today at 610.494.6700 for more information on using bonded bearings in your application!

Units: US METRIC
TitleSpecifications
SKUS17012310S17012310
Width12 mm0.47 in.
Length36 mm1.42 in.
Height10 mm0.39 in.
Ideal Load53 N11.91 lbs.
Flow0.3 SLPM0.01 SCFM
Bearing Weight9.3 gm0.33 oz.
# of Grooves11
Pressure Port ThreadM3 x 0.5M3 x 0.5
