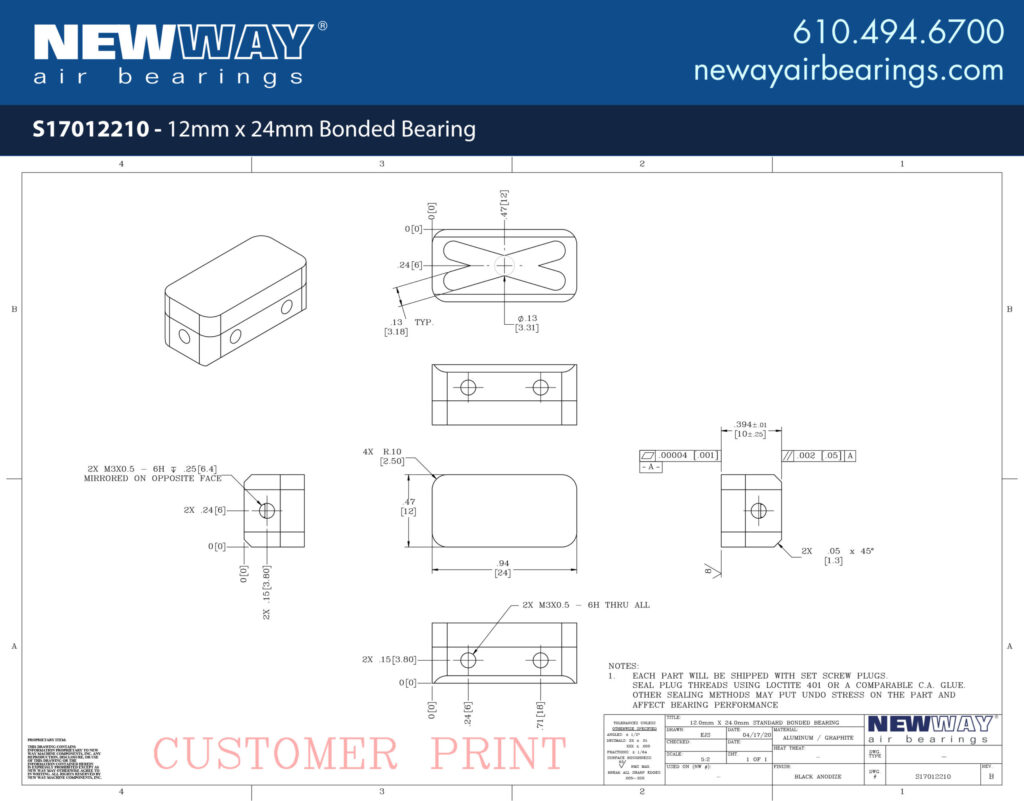

S17012210S17012210 – 12mm X 24mm Bonded Bearing


12mm X 24mm Bonded Bearing

12mm X 24mm Bonded Bearing
S17012210S17012210

New Way’s 12mm x 24mm Bonded Bearing offers a solution for space-constrained linear applications. Bonded bearings are a low-profile version of our flat rectangular bearings as well as a critical component of our popular Linear Slides. Sold as a standalone component, bonded bearings are able to be positioned accurately through the use of vacuum replication prior to bonding the bearing into place.

Contact us today at 610.494.6700 for more information on using bonded bearings in your application!

Units: US METRIC
TitleSpecifications
SKUS17012210S17012210
Width12 mm0.47 in.
Length24 mm0.94 in.
Height10 mm0.39 in.
Ideal Load36 N8.09 lbs.
Flow0.2 SLPM0.007 SCFM
Bearing Weight6.2 gm0.22 oz.
# of Grooves11
Pressure Port ThreadM3 x 0.5M3 x 0.5
