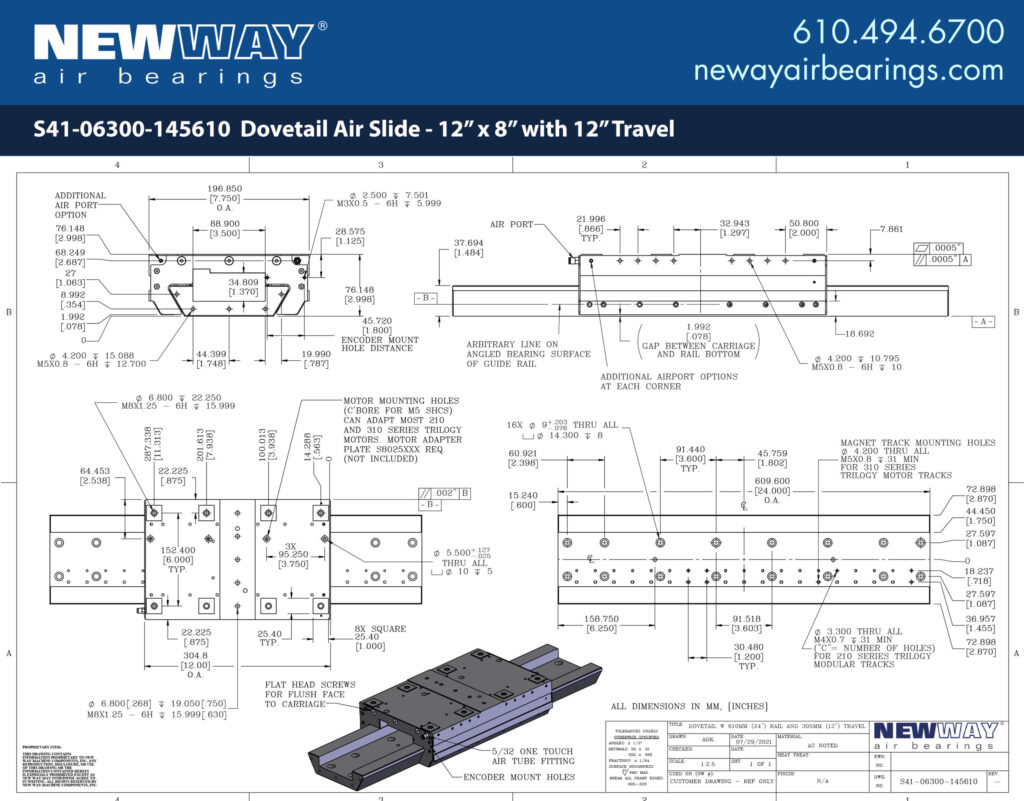

Dovetail Air Slides 12x8 12" Travel Dovetail Air Slides
S41-06300-145610S41-06300-145610

This standard New Way® assembly arrives ready for continuously-supported or end-supported installation. The 12″ x 8″ Truck is ideal for larger, heavier applications, while the accurate, paired guidebar provides a longer 12″ of travel.

Units: US METRIC
Title Specifications
Part # S41-06300-145610S41-06300-145610
Input Pressure 60 psi0.41 MPa
Flow 20 - 30 SCFH8.65 - 12.97 NLPM
Stage Area 8 x 12203 x 305
Stage Travel 12305
Stage Length 12305
Guidebar Length 24610
Stage Width 8203
Guidebar Width 5.7145
Stage Height 375
Guidebar Height 1.538
Travel Length 12305
Stage Weight 13.10 lbs5.942 kg
Guidebar Weight 11.79 lbs5.348 kg
Total Weight 24.89 lbs11.290 kg
