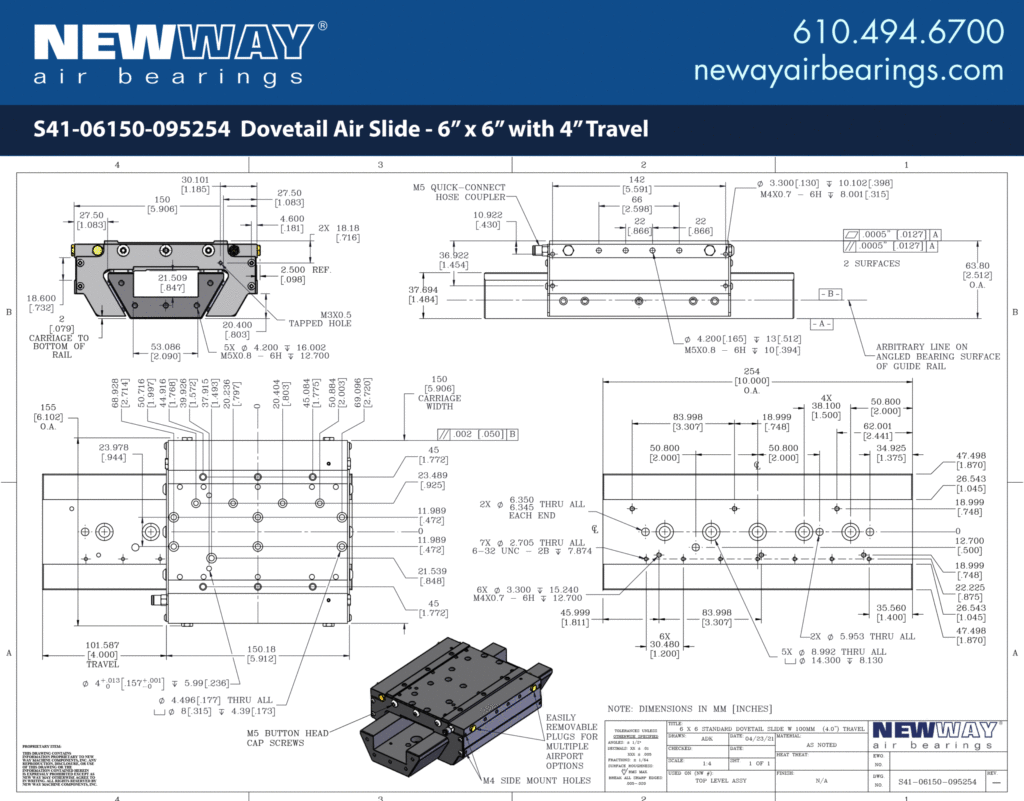

Dovetail Air Slides 6x6 4" Travel Dovetail Air Slides
S41-06150-095254S41-06150-095254

This standard New Way® assembly arrives ready for continuously-supported or end-supported installation. The 6″ x 6″ Truck is ideal for smaller, lighter applications, while the accurate, paired guidebar provides 4″ of travel.

Units: US METRIC
Title Specifications
Part # S41-06150-095254S41-06150-095254
Input Pressure 60 psi0.41 MPa
Flow 10 - 15 SCFH4.32 - 6.49 NLPM
Stage Area 6 x 6152 x 152
Stage Travel 4102
Stage Length 6152
Guidebar Length 10254
Stage Width 6152
Guidebar Width 3.74 95
Stage Height 2.564
Travel Length 4102
Guidebar Height 1.538
Stage Weight 4.8 lb2.177 kg
Guidebar Weight 3.0 lb1.361 kg
Total Weight 7.8 lb3.538 kg
