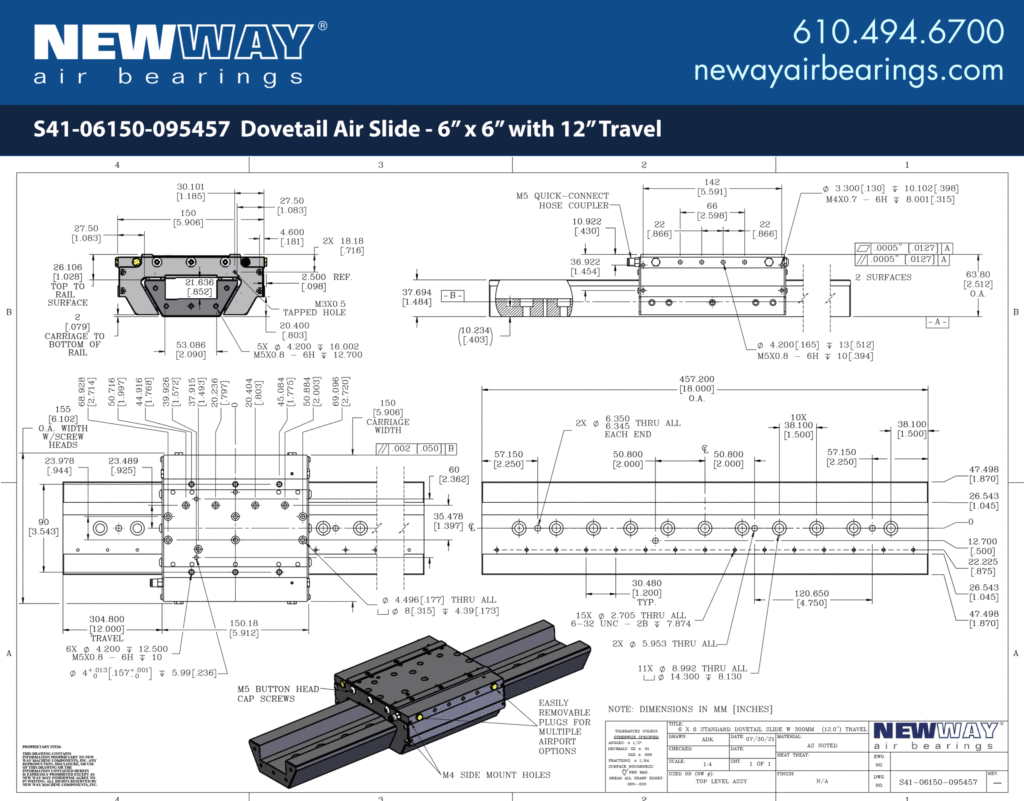

Dovetail Air Slides 6x6 12" Travel Dovetail Air Slides
S41-06150-095457S41-06150-095457

This standard New Way® assembly arrives ready for continuously-supported or end-supported installation. The 6″ x 6″ Truck is ideal for smaller, lighter applications, while the accurate, paired guidebar provides a longer 12″ of travel.

Units: US METRIC
Title Specifications
Part # S41-06150-095457S41-06150-095457
Input Pressure 60 psi0.41 MPa
Flow 10 - 15 SCFH4.32 - 6.49 NLPM
Stage Area 6 x 6152 x 152
Stage Travel 12305
Stage Length 6152
Guidebar Length 18457
Stage Width 6152
Guidebar Width 3.7495
Stage Height 2.564
Travel Length 12305
Guidebar Height 1.538
Stage Weight 4.8 lb2.177 kg
Guidebar Weight 5.4 lb2.449 kg
Total Weight 10.2 lb4.627 kg
