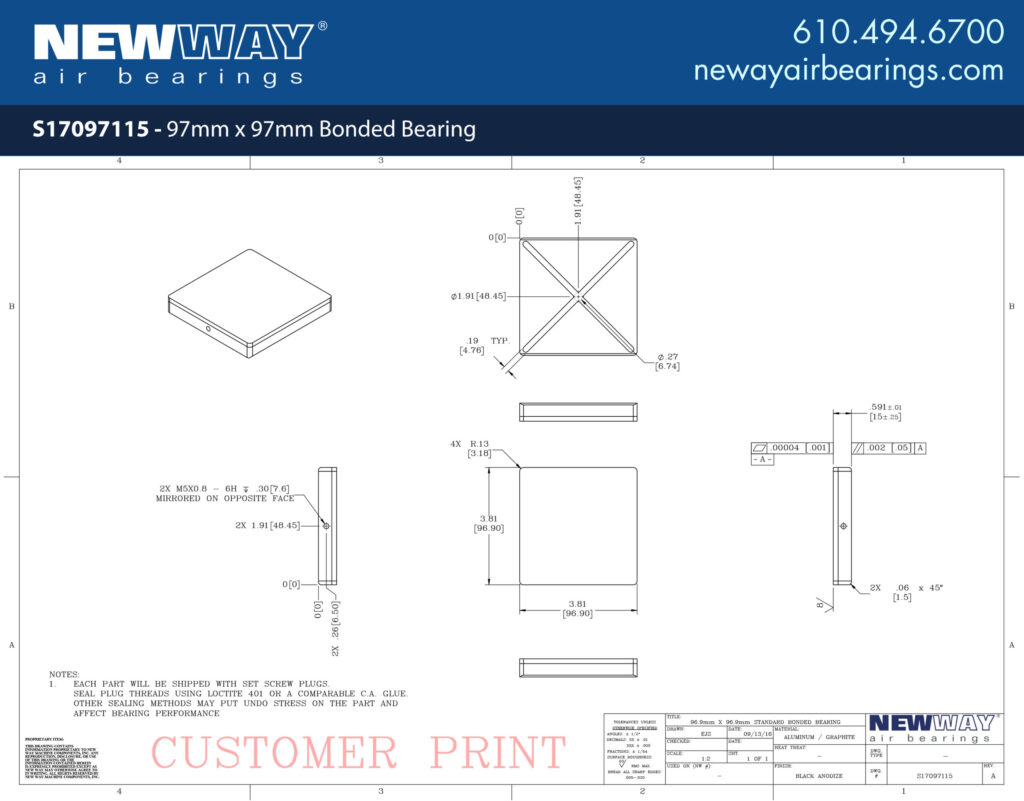

S17097115S17097115 – 97mm X 97mm Bonded Bearing


97mm X 97mm Bonded Bearing

97mm X 97mm Bonded Bearing
S17097115S17097115

New Way’s 97mm x 97mm Bonded Bearing offers a solution for space-constrained linear applications. Bonded bearings are a low-profile version of our flat rectangular bearings as well as a critical component of our popular Linear Slides. Sold as a standalone component, bonded bearings are able to be positioned accurately through the use of vacuum replication prior to bonding the bearing into place.

Contact us today at 610.494.6700 for more information on using bonded bearings in your application!

Units: US METRIC
TitleSpecifications
SKUS17097115S17097115
Width96.9 mm3.81 in.
Length96.9 mm3.81 in.
Height15 mm0.59 in.
Ideal Load2447 N550.1 lbs.
Flow0.9 SLPM0.03 SCFM
Bearing Weight312.2 gm11.0 oz.
# of Grooves11
Pressure Port ThreadM5 x 0.8M5 x 0.8

Learn More About the Porous Media Difference
