S17097215S17097215 – 97mm X 197mm Bonded Bearing

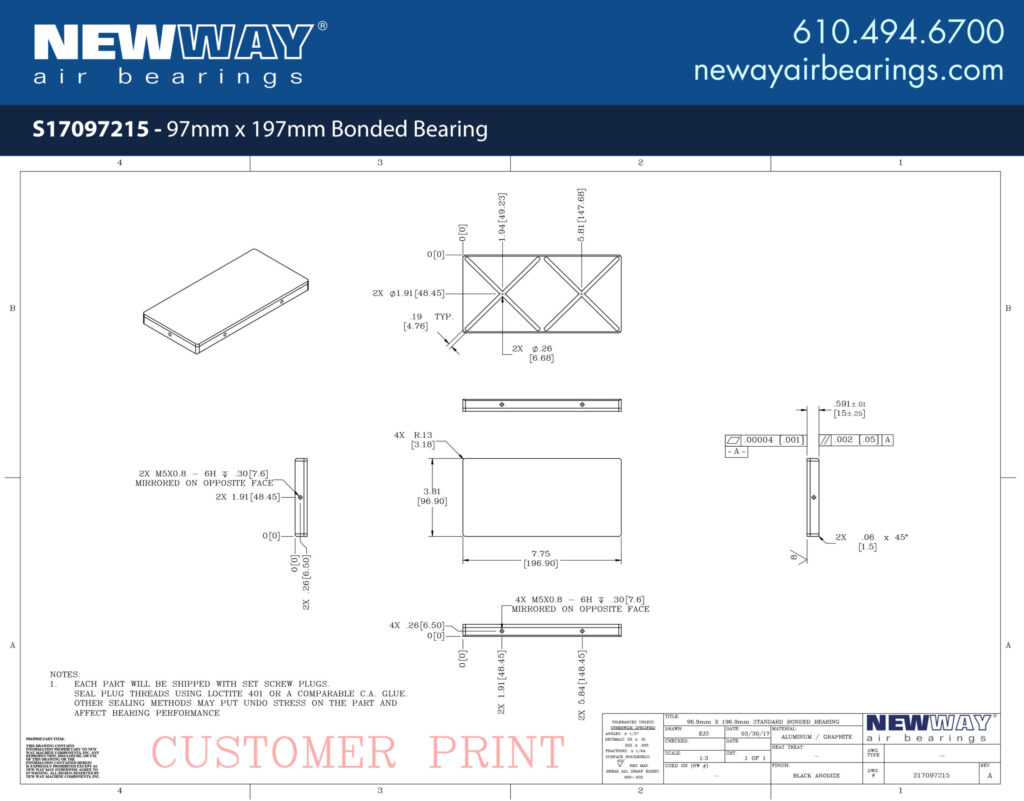

97mm X 197mm Bonded Bearing

97mm X 197mm Bonded Bearing
S17097215S17097215

New Way’s 97mm x 197mm Bonded Bearing offers a solution for space-constrained linear applications. Bonded bearings are a low-profile version of our flat rectangular bearings as well as a critical component of our popular Linear Slides. Sold as a standalone component, bonded bearings are able to be positioned accurately through the use of vacuum replication prior to bonding the bearing into place. The large length size relative to the width is accommodated through an additional set of air grooves to ensure even distribution of air for optimum performance.

Contact us today at 610.494.6700 for more information on using bonded bearings in your application!

Units: US METRIC
TitleSpecifications
SKUS17097215S17097215
Width96.9 mm3.81 in.
Length196.9 mm7.75 in.
Height15 mm0.59 in.
Ideal Load4893 N1100.0 lbs.
Flow1.9 SLPM0.07 SCFM
Bearing Weight635.0 gm22.4 oz.
# of Grooves22
Pressure Port ThreadM5 x 0.8M5 x 0.8
