S17097415S17097415 – 97mm X 397mm Bonded Bearing

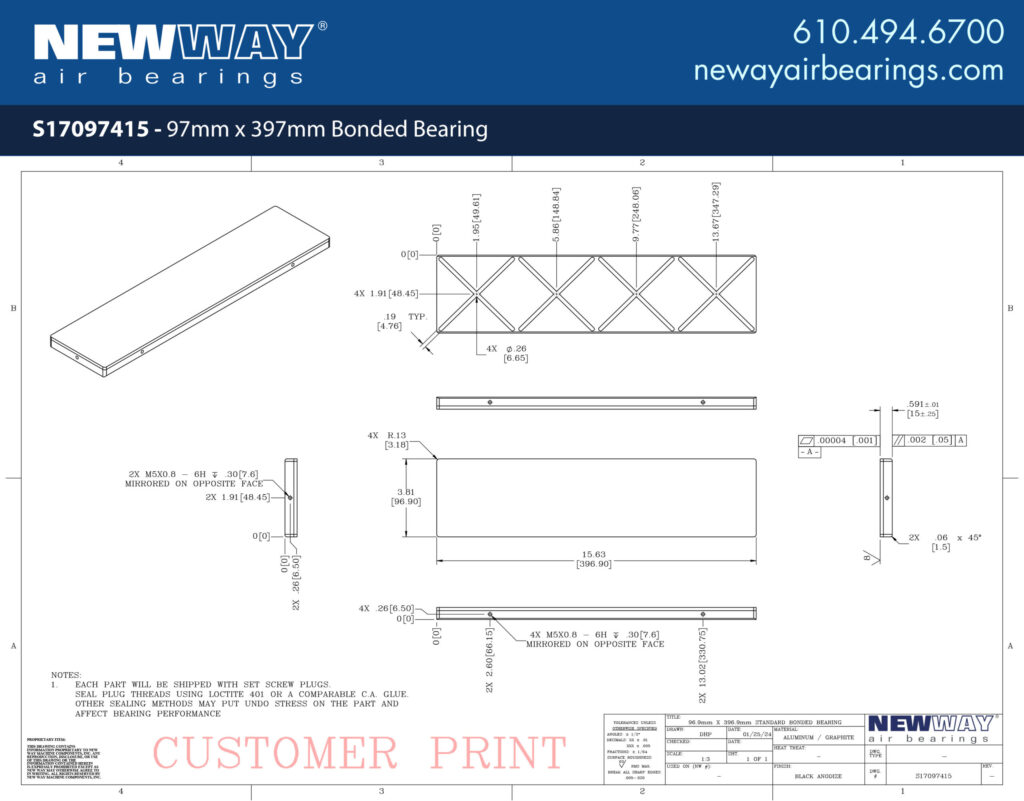

97mm X 397mm Bonded Bearing

97mm X 397mm Bonded Bearing
S17097415S17097415

New Way’s 97mm x 397mm Bonded Bearing offers a solution for space-constrained linear applications. Bonded bearings are a low-profile version of our flat rectangular bearings as well as a critical component of our popular Linear Slides. Sold as a standalone component, bonded bearings are able to be positioned accurately through the use of vacuum replication prior to bonding the bearing into place. The large length size relative to the width is accommodated through additional sets of air grooves to ensure even distribution of air for optimum performance.

Contact us today at 610.494.6700 for more information on using bonded bearings in your application!

Units: US METRIC
TitleSpecifications
SKUS17097415S17097415
Width96.9 mm3.81 in.
Length396.9 mm15.63 in.
Height15 mm0.59 in.
Ideal Load9786 N2200.0 lbs.
Flow3.8 SLPM0.13 SCFM
Bearing Weight1280.7 gm45.2 oz.
# of Grooves44
Pressure Port ThreadM5 x 0.8M5 x 0.8
