S32150W***S32150W*** – 150mm x 300mm Radial Air Bearings Concave W Profile



150mm x 300mm Radial Air Bearings Concave W Profile
S32150W***S32150W***

Largest of the New Way Concave Radial Air Bearing product line, the 150mm x 300mm size provides the scale necessary for more significant load-carrying capability. For rotary or linear motion, these radial air bearings compare favorably with conventional rolling element bearings across virtually every performance characteristic. They are also easy to apply, maintain, and change.

Units: US METRIC
Title Specifications
Size 150 x 300 mm150 x 300 mm
SKU S32150W***S32150W***
Input Pressure 60 psi0.41 MPa
Ideal Load at 5um Fly Height 2,350 lb10,453 N
Stiffness 9.39 lb/μin1645 N/μm
Flow 26.0 - 30.0 SCFH11.24 - 12.97 NLPM
Fly Height 0.0002 in5 microns
Bearing Size 5.91 x 11.81 in150 x 300 mm
Bearing Height 3.94 in100 mm
Bearing Weight 26.06 lb11,822 g
Housing Material/Finish Aluminum/AnodizedAluminum/Anodized
Porous Media Material CarbonCarbon
Ball Socket Size 25 mm25 mm
Pressure Port Thread M5 x 0.8M5 x 0.8
Viable Pressure Range 60 - 80 psi0.414 - 0.552 MPa
Maximum Allowable Pressure Supply 100 psi0.689 MPa
Resolution InfiniteInfinite
Maximum Speed 164.04 ft/s50 m/s
Common Guide Surfaces Granite, hard-coated aluminum,ceramics, glass, stainless steel, plated steelGranite, hard-coated aluminum,ceramics, glass, stainless steel, plated steel
Suggested Guide Surface Finish 16 RMS16 RMS

Attachments:

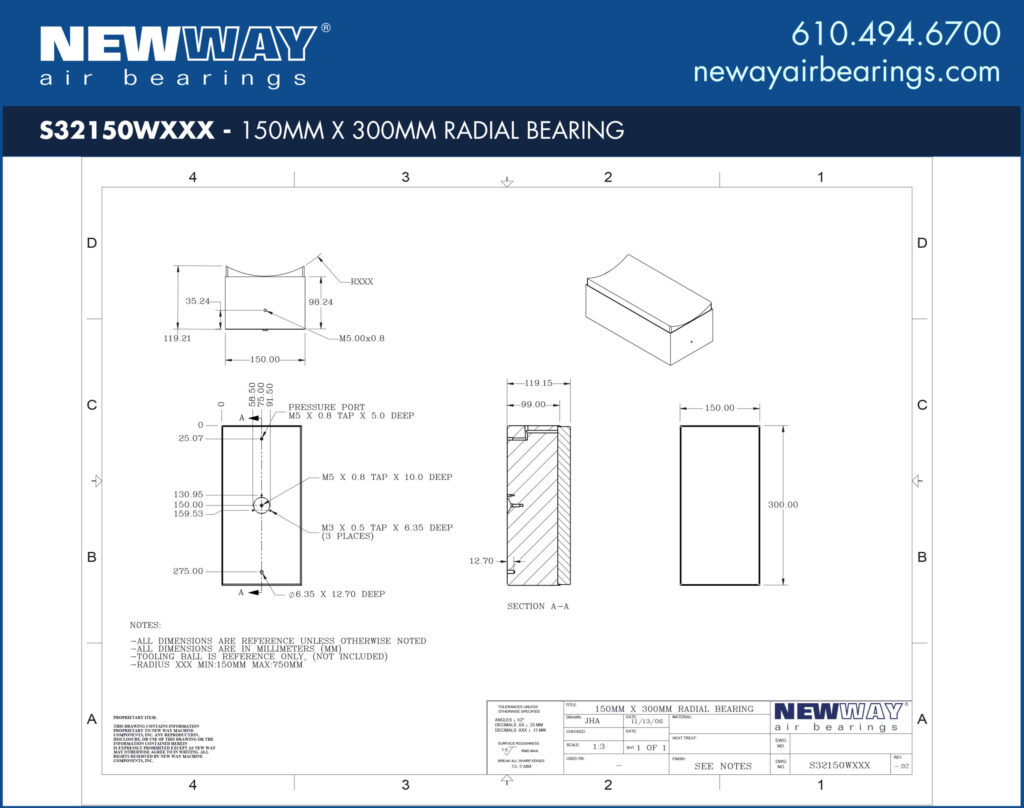

Mounting Details for 150mm x 300mm Radial Air Bearings Concave W Profile with Flat End Ball Mounting Screw

flat end nut housing s1215001 new way air bearings

Ball Mounting Screw – Flat End
S8040B01 – 40mm Diameter / M30 x 0.75 x 120mm lg

Nut Housing Assembly
S8040H01 – M30 x 0.75 I.D. / M42 x 4.5 O.D.

Air Fittings
All M5 Thread Size Air Fittings
