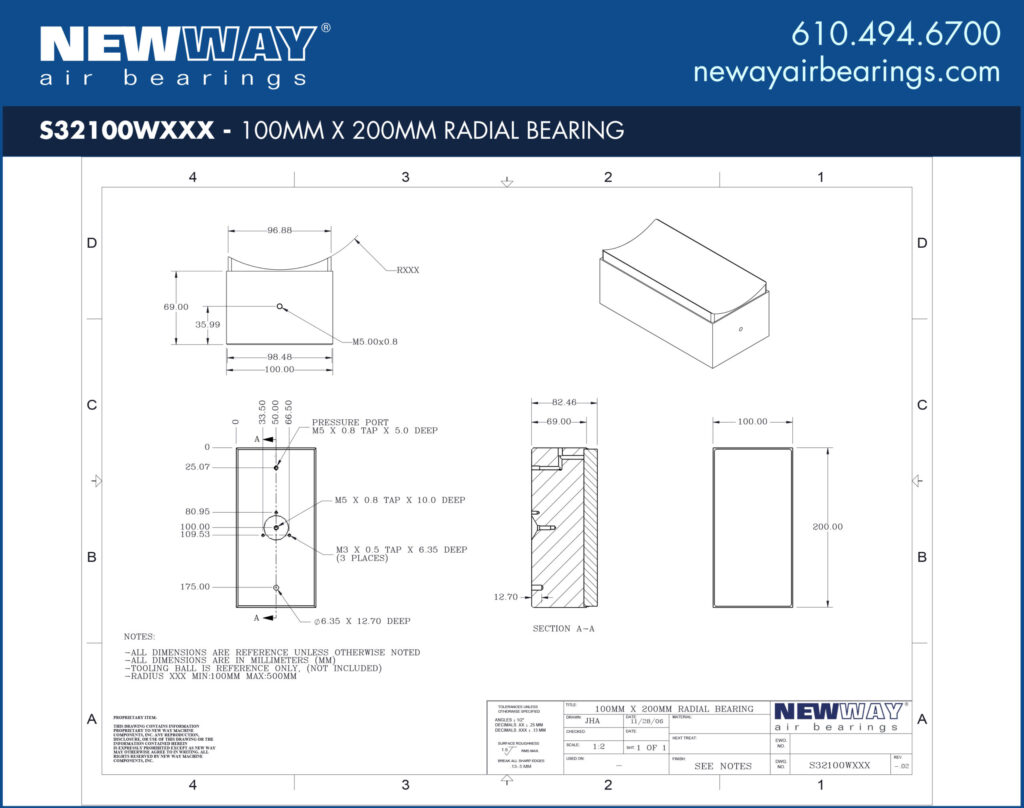

100mm x 200mm Radial Air Bearings Concave W Profile

100mm x 200mm Radial Air Bearings Concave W Profile
S32100WS32100W

Third-largest of the New Way Concave Radial Air Bearing product line, the 100mm x 200mm size provides the scale necessary for more significant load-carrying capability. For rotary or linear motion, these radial air bearings compare favorably with conventional rolling element bearings across virtually every performance characteristic. They are also easy to apply, maintain, and change.

Units: US METRIC

Title	Specifications
Size	100 x 200 mm100 x 200 mm
SKU	S32100W*S32100W*
Input Pressure	60 psi0.41 MPa
Ideal Load at 5um Fly Height	900 lb4003 N
Stiffness	3.80 lb/μin665 N/μm
Flow	10.0 - 12.0 SCFH4.32 - 5.19 NLPM
Fly Height	0.0002 in5 microns
Bearing Size	3.94 x 7.87 in100 x 200 mm
Bearing Height	2.76 in70 mm
Bearing Weight	7.99 lb3628 g
Housing Material/Finish	Aluminum/AnodizedAluminum/Anodized
Porous Media Material	CarbonCarbon
Ball Socket Size	25 mm25 mm
Pressure Port Thread	M5 x 0.8M5 x 0.8
Viable Pressure Range	60 - 80 psi0.414 - 0.552 MPa
Maximum Allowable Pressure Supply	100 psi0.689 MPa
Resolution	InfiniteInfinite
Maximum Speed	164.04 ft/s50 m/s
Common Guide Surfaces	Granite, hard-coated aluminum,ceramics, glass, stainless steel, plated steelGranite, hard-coated aluminum,ceramics, glass, stainless steel, plated steel
Suggested Guide Surface Finish	16 RMS16 RMS
