S32125W***S32125W*** – 125mm x 250mm Radial Air Bearings Concave W Profile

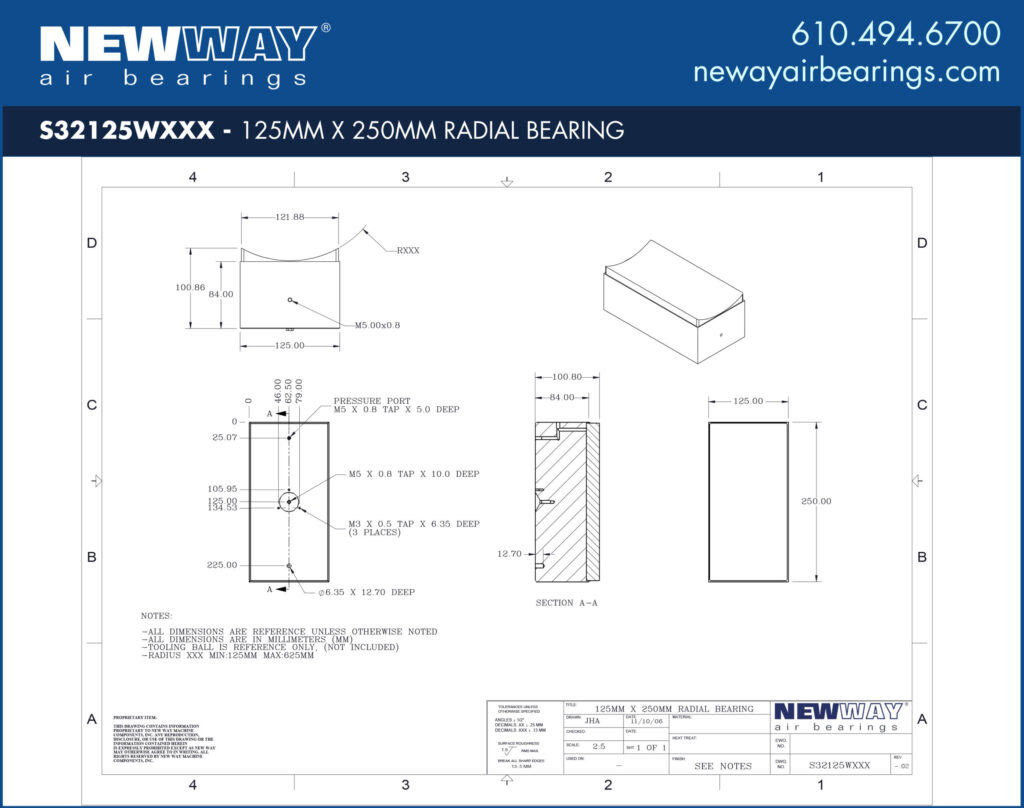

125mm x 250mm Radial Air Bearings Concave W Profile
S32125W***S32125W***

Second-largest of the New Way Concave Radial Air Bearing product line, the 125mm x 250mm size provides the scale necessary for more significant load-carrying capability. For rotary or linear motion, these radial air bearings compare favorably with conventional rolling element bearings across virtually every performance characteristic. They are also easy to apply, maintain, and change.

Units: US METRIC
TitleSpecifications
Size125 x 250 mm125 x 250 mm
SKUS32125W***S32125W***
Input Pressure60 psi0.41 MPa
Ideal Load at 5um Fly Height1500 lb6672 N
Stiffness5.76 lb/μin1009 N/μm
Flow4.96 NLPM4.96 NLPM
Fly Height0.0002 in5 microns
Bearing Size4.92 x 9.84 in125 x 250 mm
Bearing Height2.95 in75 mm
Bearing Weight15.29 lb6937 g
Housing Material/FinishAluminum/AnodizedAluminum/Anodized
Porous Media MaterialCarbonCarbon
Ball Socket Size25 mm25 mm
Pressure Port ThreadM5 x 0.8M5 x 0.8
Viable Pressure Range60 - 80 psi0.414 - 0.552 MPa
Maximum Allowable Pressure Supply100 psi0.689 MPa
ResolutionInfiniteInfinite
Maximum Speed164.04 ft/s50 m/s
Common Guide SurfacesGranite, hard-coated aluminum,ceramics, glass, stainless steel, plated steelGranite, hard-coated aluminum,ceramics, glass, stainless steel, plated steel
Suggested Guide Surface Finish16 RMS16 RMS
