S90F054S90F054 – M3/0.078 Air Fittings T Style

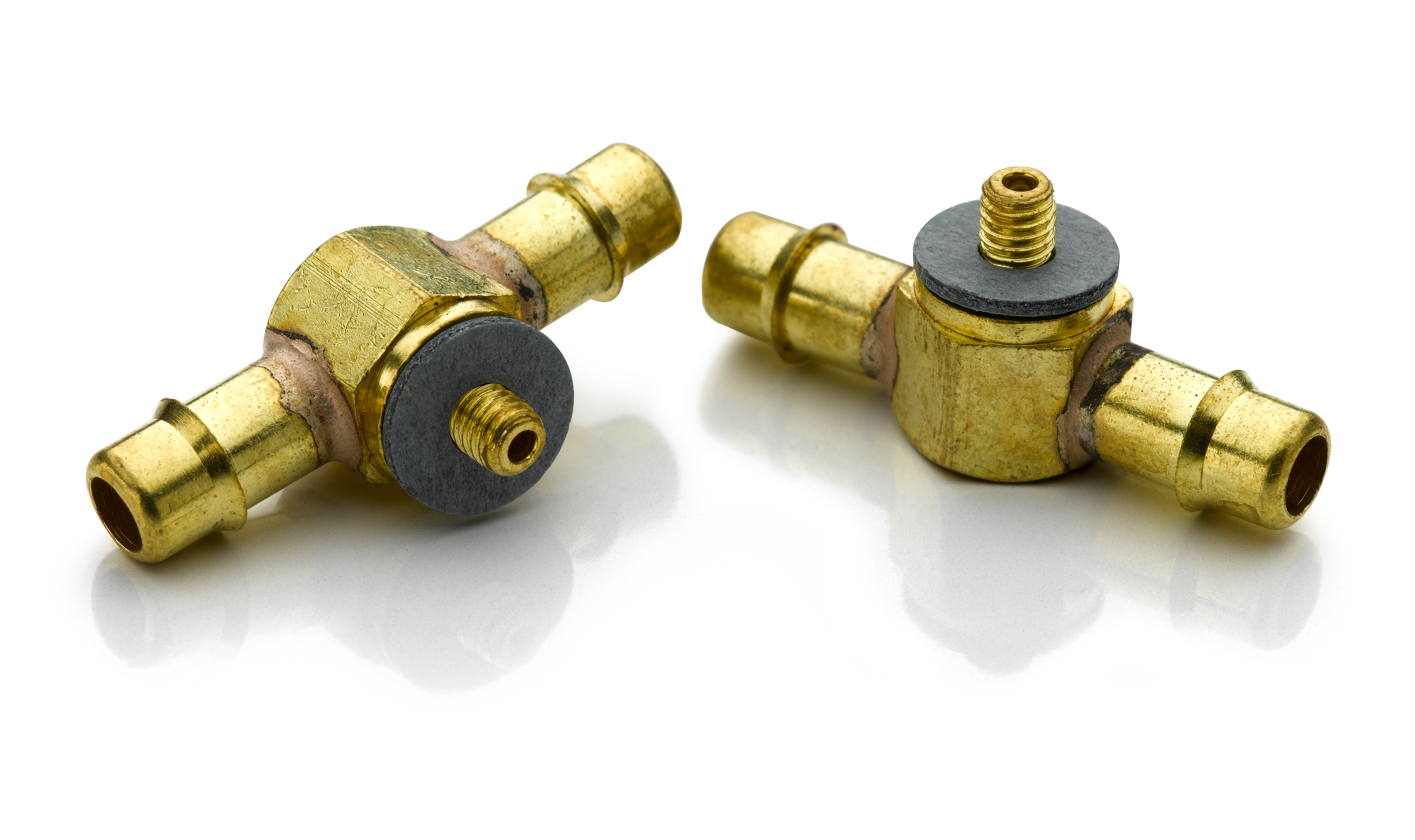

M3/0.078 Air Fittings T Style

M3/0.078 Air Fittings T Style
S90F054S90F054

Size: Thread Size/ Tube I.D. – M3/ 0.078″

Compatible With: Clear Polyurethane Tubing
S90T002 – I.D./ O.D. – 0.078/ 0.156

Compatible With: Flat Round Air Bearing
S102501 – 25mm Diameter

Compatible With: Air Bushings, Metric
S302502 – 25mm I.D.
S302001 – 20mm I.D.
S301301 – 13mm I.D.

Compatible With: Air Bushings, English
S302501 – 1.00″ I.D.
S301901 – 0.75″ I.D.
S301201 – 0.50″ I.D.
S300601 – 0.25″ I.D.

Units: US METRIC
Title Specifications
Part # S90F054S90F054
Mating Tube ID "A" .078"2.0 mm
Thread Size M3M3
Fitting Hex Size 3/16"4.8 mm
Overall Length 5/8"17.5 mm
Thread Depth 5/32"4 mm
Hex Depth 13/64"5.2 mm
