S90F059S90F059 – M5/0.170 Air Fittings T Style

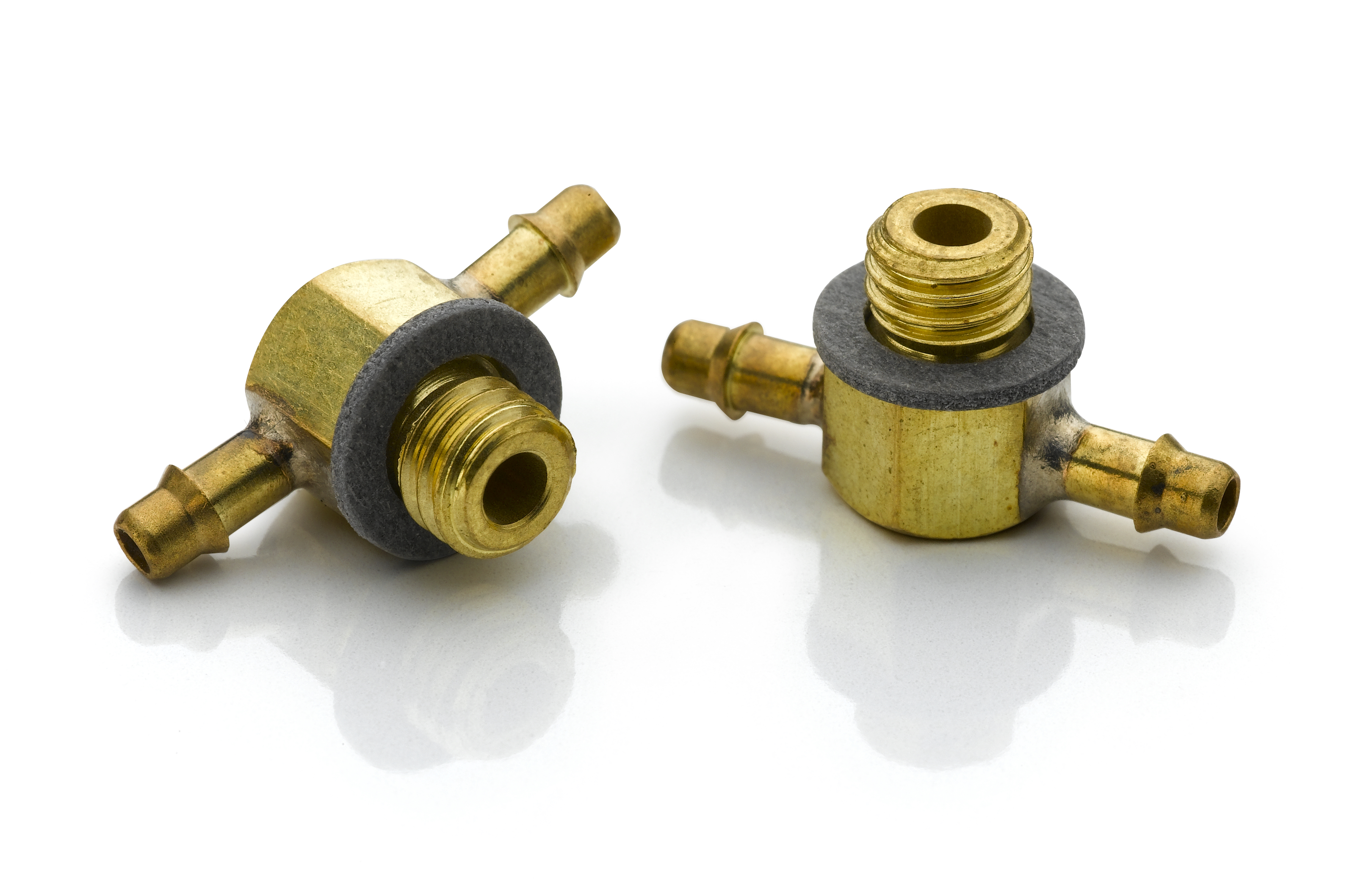

M5/0.170 Air Fittings T Style

M5/0.170 Air Fittings T Style
S90F059S90F059

Size: Thread Size/ Tube I.D. – M5/ 0.170″

Compatible With: Clear Polyurethane Tubing
S90T004 – I.D./ O.D. – 0.170/ 0.250

Compatible With: All Flat Round Air Bearings
(except S102501 – 25mm Diameter)

Compatible With: All Flat Rectangular Air Bearings
(except S122501 – 25mm x 50mm)
(except S122001 – 20mm x 40mm)
(except S121501 – 15mm x 30mm)
(except S121201 – 12mm x 24mm)

Compatible With: Air Bushings, Metric
S307502 – 75mm I.D.
S305002 – 50mm I.D.
S304002 – 40mm I.D.

Compatible With: All Vacuum Pre-Loaded Air Bearings (VPLs)

Compatible With: All Precision Zone Air Bars

Compatible With: All Mounting Blocks

Units: US METRIC
TitleSpecifications
Part #S90F059S90F059
Mating Tube ID "A".170”4.3 mm
Thread SizeM5M5
Fitting Hex Size5/16"7.9 mm
Overall Length1"25.4 mm
Thread Depth5/32"4 mm
Hex Depth9/32"7.1 mm
