NW-RB-03-01



NW-RB-03-01

Introducing the Future of Turbomachinery Bearings: The Externally Pressurized Porous Media Turbomachinery Radial Bearing

Unlock unparalleled performance and reliability with our Externally Pressurized Porous Media Turbo Machinery Radial Bearing – the cutting-edge solution that redefines the way you approach high-speed machinery. The NW-RB-03-01 radial bearing is the midline offering in this product line, supporting 3 inch shafts at speeds up to 20,000 RPM. Designed to meet the most demanding industrial applications, this innovative radial bearing technology is the key to smoother operations, reduced maintenance, and enhanced productivity.

Contact us today to start improving your Turbomachinery Radial Motion!

Units: US METRIC
Title Specifications
Model # NW-RB-03-01NW-RB-03-01
Shaft Size 3.00 in. +.0000/-.000576.2 mm +0.00/-0.013
Maximum Speed 20,000 RPM20,000 RPM
Supply Pressure 60 - 140 PSIG413.7 - 965.3 KPA
Flow Consumption @ 60 PSIG (413.7 KPA) 34.5 - 55 SCFH15.4 - 24.6 NLPM
Stator Bore Requirement 6.000 in. +.002/-.000 152.4 mm +0.05/-0.00
Max. Angular Misalignment 2.5°2.5°
Porous Media Material Carbon GraphiteCarbon Graphite
Housing Material 316 Stainless Steel316 Stainless Steel
O-ring Materials Viton 75AViton 75A
Max. Operating Temp. 212 F100 C

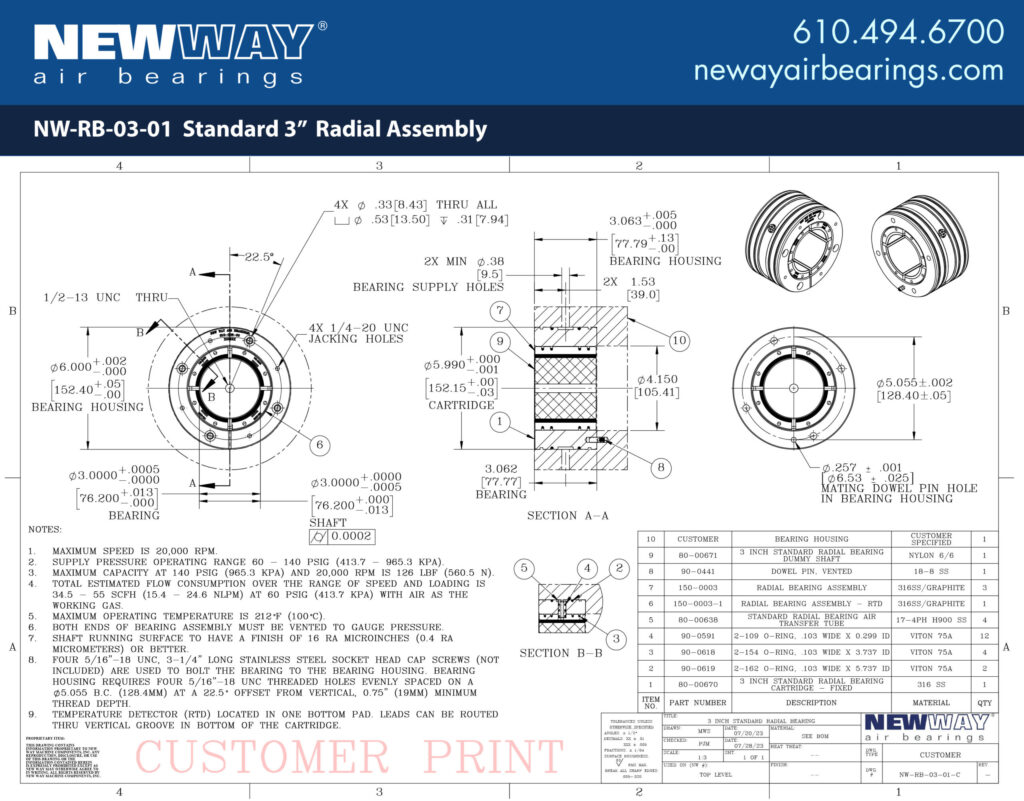

Attachments:
