S90F049S90F049 – M5/0.125 Air Fittings Right Angle

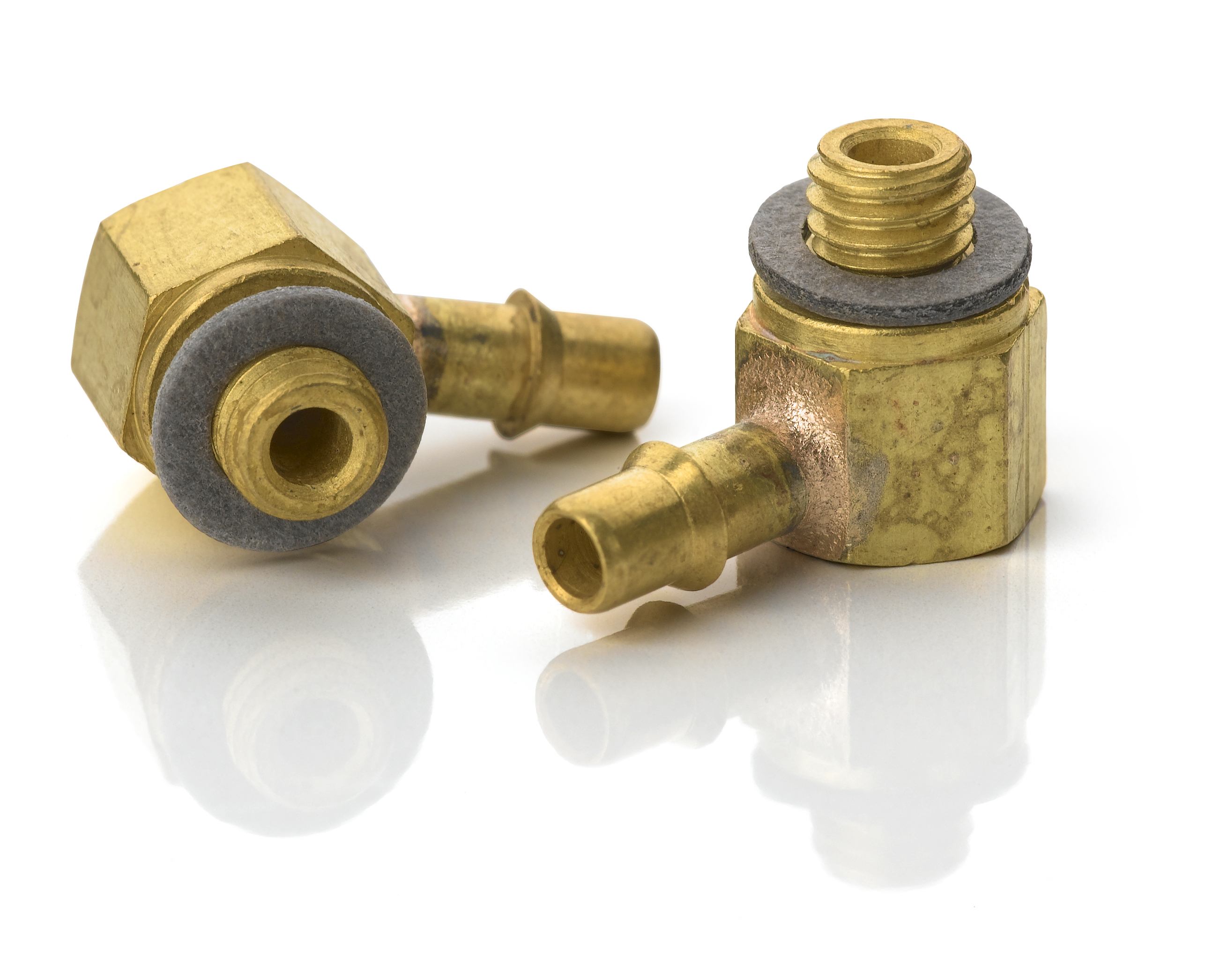

M5/0.125 Air Fittings Right Angle

M5/0.125 Air Fittings Right Angle
S90F049S90F049

Size: Thread Size/ Tube I.D. – M5/ 0.125″

Compatible With: Clear Polyurethane Tubing
S90T003 – I.D./ O.D. – 0.125/ 0.250

Compatible With: All Flat Round Air Bearings
(except S102501 – 25mm Diameter)

Compatible With: All Flat Rectangular Air Bearings
(except S122501 – 25mm x 50mm)
(except S122001 – 20mm x 40mm)
(except S121501 – 15mm x 30mm)
(except S121201 – 12mm x 24mm)

Compatible With: Air Bushings, Metric
S307502 – 75mm I.D.
S305002 – 50mm I.D.
S304002 – 40mm I.D.

Compatible With: All Vacuum Pre-Loaded Air Bearings (VPLs)

Compatible With: All FPD Precision Chuck

Compatible With: All Mounting Blocks

Units: US METRIC
Title Specifications
Part # S90F049S90F049
Mating Tube ID .125"3.2 mm
Thread Size M5M5
Fitting Hex 5/16"7.9 mm
Hex Depth 9/32"7.1 mm
Thread Depth 5/32"4 mm
Thread CL to Barb End 15/32"11.9 mm
