40mm ID Air Bushing

40mm ID Air Bushing

Third largest of the New Way metric air bushing line, the 40mm ID size provides a good balance of size and load-carrying capability on metric shafting. These porous media bushings are an inexpensive way to achieve frictionless linear motion, and compare favorably with conventional rolling element bearings across virtually every performance characteristic. They are also easy to apply, replace or change.

Title Specifications
Size 40 mm40 mm
SKU S304002S304002
Input Pressure 60 psi0.41 MPa
Radial Load Max 145 lb645 N
Radial Stiffness 0.41 lb/μin72 N/μm
Pitch Moment Max 28 lb-in3.1 N-m
Pitch Stiffness 101 lb-in/mil rad11 N-m/mil rad
Flowrate on Shaft 15.00 - 19.80 SCFH6.49 - 8.56 NLPM
Air Gap at maximum recommended load 150 micro-inches4 microns
Bushing Inside Diameter (ID) 1.5748 in +.0002/-.00040.020 mm +0.005/-0.000
Bushing Outside Diameter (OD) 2.4 in60 mm
Bushing Length 3.0 in76 mm
Bushing Weight 7.2 oz204 g
Housing Material/Finish Aluminum/AnodizedAluminum/Anodized
Porous Media Material CarbonCarbon
Recommended Shaft Outside Diameter (OD) 1.5748 in40.000 mm
Recommended Shaft Tolerance -.0004/-.0010 in (g6)-9/-25 μm (g6)
Recommended Mounting Bore Diameter 2.375 in +.002/-.00260.33 mm +.05/-.05
Pressure Port Threads M5 x 0.8M5 x 0.8
Maximum Allowable Pressure Supply 100 psi0.689 MPa
Bushing ID Speed 25,000 rpm25,000 rpm
Resolution InfiniteInfinite
Maximum Speed 164.04 ft/s50 m/s
Common Shaft Materials Anodized aluminum, stainless steel, nickel plated steel, ceramics, glassAnodized aluminum, stainless steel, nickel plated steel, ceramics, glass


Mounting Details for 40mm ID Air Bushing

Stainless Steel Shaft
S90S020-xxx – 40mm Diameter

End Mounts
S8040E02 – 40mm Diameter

Mounting Blocks
S8038P02 – 40mm I.D.

Replacement “O” Rings for Bushings
S90RG2-139 – 40mm

Air Fittings
All M5 Thread Size Air Fittings

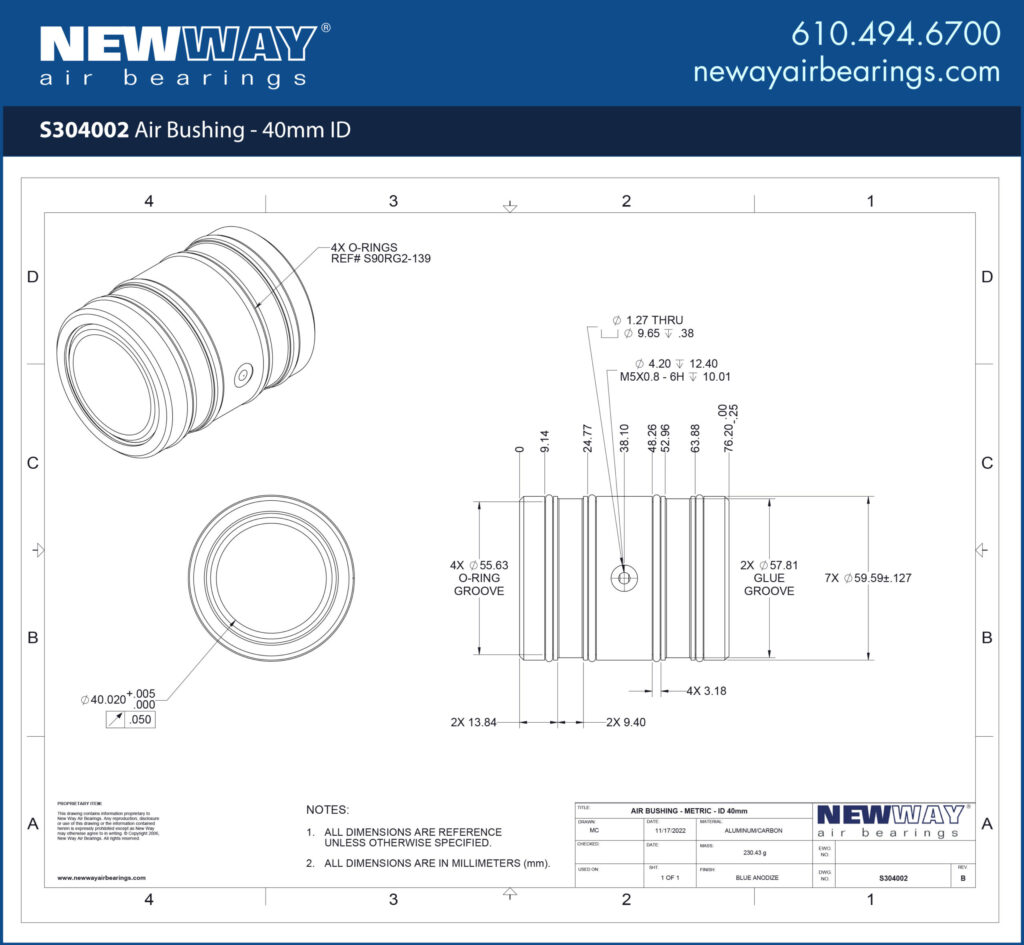

S304002 Engineering Drawing
