S209001S209001 – 90mm VPL Air Bearing

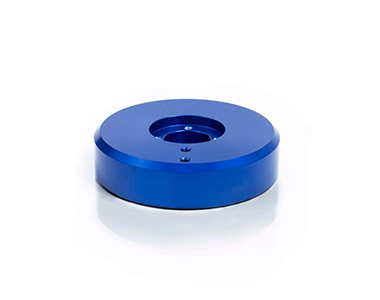

90mm VPL Air Bearing
S209001S209001

Largest of the New Way vacuum preloaded air bearing line, the 90mm size provides the scale necessary for more significant load-carrying capability. Because both the “x” and “y” axes can be supported by a single bearing plane, this VPL offers advantages that conventional air bearings cannot touch. It is also easy to apply, replace or change.

Units: US METRIC
Title Specifications
Size 90mm90mm
SKU S209001S209001
Input Pressure 0.41 MPa (60 psi)0.41 MPa
Input Vacuum 15 in Hg15 in Hg
Ideal Load 34 lbs150 N
Stiffness 0.25 lbs/μ in43 N/micron
Maximum Hold-Down Force at 68kPa 58.5 lb260 N
Flow 3.15 SCFH1.48 NLPM
Fly Height 5 microns5 microns
Bearing Size 90mm90mm
Bearing Height 0.866 in22 mm
Bearing Weight 0.69 lbs306 grams
Housing Material/Finish Aluminum/AnodizedAluminum/Anodized
Porous Media Material CarbonCarbon
Bearing Face Surface Size - Carbon 62.4mm ID x 88.2mm OD62.4mm ID x 88.2mm OD
Flatness 0.001 mm (0.00004 in)0.001 mm
Mounting FlexureFlexure
Pressure Port M5M5
Vacuum Port M5M5
Viable Pressure Range 0.414 - 0.552 MPa (60 - 80 psi)0.414 - 0.552 MPa
Maximum Allowable Pressure Supply 0.689 MPa (100 psi)0.689 MPa
Resolution InfiniteInfinite
Maximum Speed 50m/sec50m/sec
Common Guide Surfaces Granite, hard-coated aluminum, ceramics, glass, stainless steel, plated steelGranite, hard-coated aluminum, ceramics, glass, stainless steel, plated steel
Suggested Guide Surface Finish 16 RMS16 RMS

Attachments:

Mounting Details for 90mm Vacuum Preloaded Air Bearing

S209001 – 90mm Diameter
S8010F01 – #3/8-80 THD
S8010F02 – #3/8-40 THD
