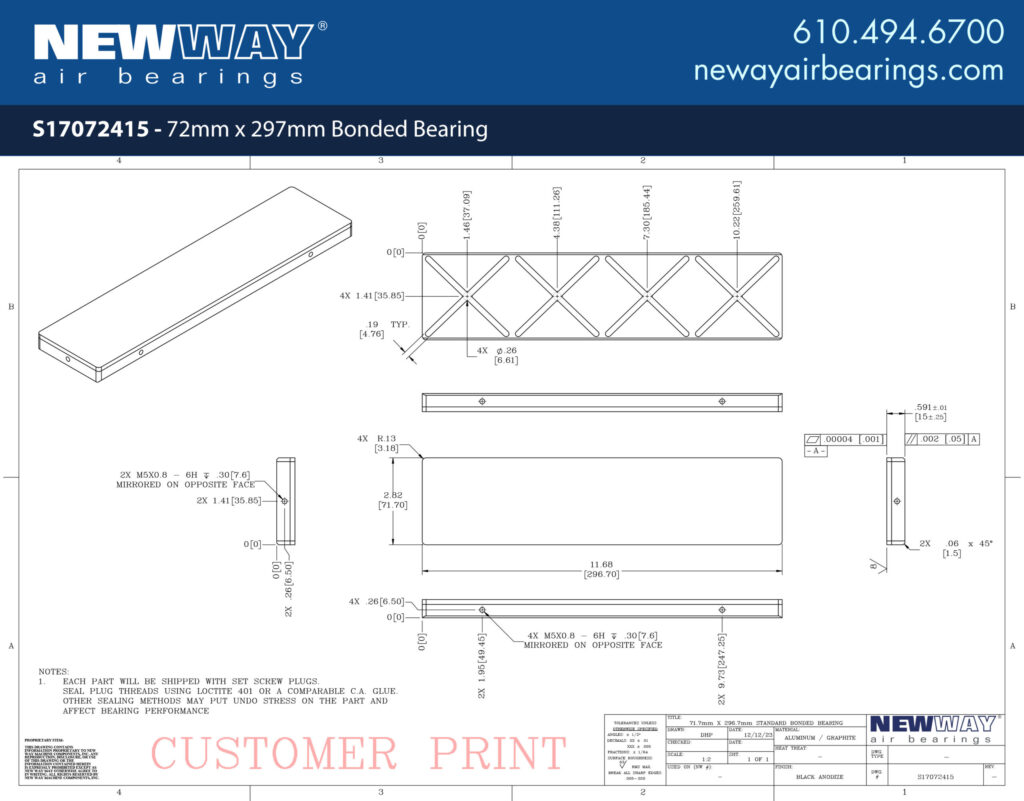

S17072415S17072415 – 72mm X 297mm Bonded Bearing


72mm X 297mm Bonded Bearing

72mm X 297mm Bonded Bearing
S17072415S17072415

New Way’s 72mm x 297mm Bonded Bearing offers a solution for space-constrained linear applications. Bonded bearings are a low-profile version of our flat rectangular bearings as well as a critical component of our popular Linear Slides. Sold as a standalone component, bonded bearings are able to be positioned accurately through the use of vacuum replication prior to bonding the bearing into place. The large length size relative to the width is accommodated through additional sets of air grooves to ensure even distribution of air for optimum performance.

Contact us today at 610.494.6700 for more information on using bonded bearings in your application!

Units: US METRIC
TitleSpecifications
SKUS17072415S17072415
Width71.7 mm2.82 in.
Length296.7 mm11.68 in.
Height15 mm0.59 in.
Ideal Load5160 N1160.0 lbs.
Flow3.3 SLPM0.12 SCFM
Bearing Weight683.0 gm24.1 oz.
# of Grooves44
Pressure Port ThreadM5 x 0.8M5 x 0.8
