40mm x 80mm Radial Air Bearings Convex W Profile
S3340W***S3340W***

Fifth-smallest of the New Way Convex Radial Air Bearing product line, the 40mm x 80mm size provides a good balance of scale and load-carrying capability. For rotary or linear motion, these radial air bearings compare favorably with conventional rolling element bearings across virtually every performance characteristic. They are also easy to apply, maintain, and change.

Units: US METRIC
Title Specifications
Size 40 x 80 mm40 x 80 mm
SKU S3340W***S3340W***
Input Pressure 60 psi0.41 MPa
Ideal Load at 5um Fly Height 100 lb445 N
Stiffness 0.33 lb/μin58 N/μm
Flow 6.0 - 9.0 SCFH2.59 - 3.89 NLPM
Fly Height 0.0002 in5 microns
Bearing Size 1.57 x 3.15 in40 x 80 mm
Bearing Height 0.79 in20 mm
Bearing Weight 0.32 lb145 g
Housing Material/Finish Aluminum/AnodizedAluminum/Anodized
Porous Media Material CarbonCarbon
Ball Socket Size 13 mm13 mm
Pressure Port Thread M5 x 0.8M5 x 0.8
Viable Pressure Range 60 - 80 psi0.414 - 0.552 MPa
Maximum Allowable Pressure Supply 100 psi0.689 MPa
Resolution InfiniteInfinite
Maximum Speed 164.04 ft/s50 m/s
Common Guide Surfaces Granite, hard-coated aluminum,ceramics, glass, stainless steel, plated steelGranite, hard-coated aluminum,ceramics, glass, stainless steel, plated steel
Suggested Guide Surface Finish 16 RMS16 RMS

Attachments:

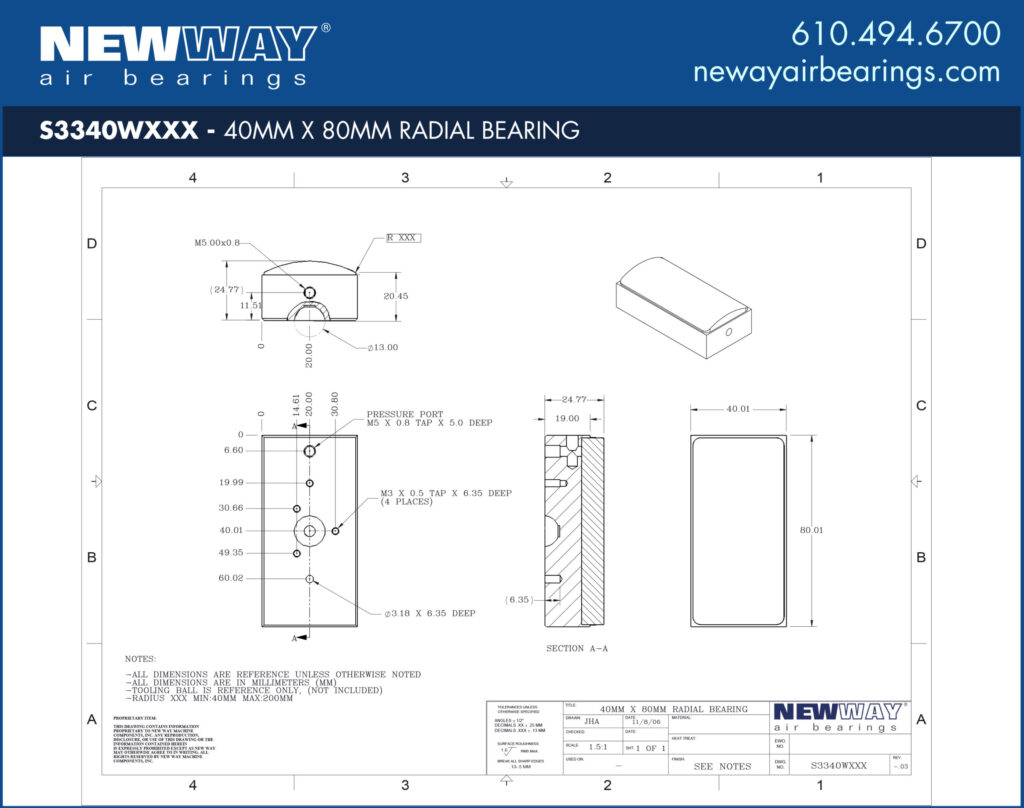

Mounting Details for 40mm x 80mm Radial Air Bearings Convex W Profile with Round End Ball Mounting Screw

Ball Mounting Screw – Round End

S8013B06 – 13mm Diameter / M10 x 0.75 x 54mm lg
S8013B17 – 13mm Diameter / M10 x 0.50 x 54mm lg

Nut Housing Assembly
S8013H03 – M10 x 0.75 I.D. / M16 x 2 O.D.
S8013H04 – M10 x 0.50 I.D. / M16 x 2 O.D.

Ball Retainer
S8013S01 – 13mm

Air Fittings
All M5 Thread Size Air Fittings


Mounting Details for 40mm x 80mm Radial Air Bearings Convex W Profile with Flat End Ball Mounting Screw

Ball Mounting Screw – Flat End
S8013B11 – 13mm Diameter / M10 x 0.75 x 54mm lg
S8013B14 – 13mm Diameter / M10 x 0.75 x 32mm lg
S8013B15 – 13mm Diameter / M10 x 0.50 x 54mm lg
S8013B16 – 13mm Diameter / M10 x 0.50 x 32mm lg

Nut Housing Assembly
S8013H03 – M10 x 0.75 I.D. / M16 x 2 O.D.
S8013H04 – M10 x 0.50 I.D. / M16 x 2 O.D.

Air Fittings
All M5 Thread Size Air Fittings


Mounting Details for 40mm x 80mm Radial Air Bearings Convex W Profile with Stainless Steel Ball and Ball Retainer

Stainless Steel Ball
S90B004 – 13mm Diameter

Ball Retainer
S8013S01 – 13mm

Air Fittings
All M5 Thread Size Air Fittings


Mounting Details for 40mm x 80mm Radial Air Bearings Convex W Profile with Stainless Steel Ball

Stainless Steel Ball
S90B004 – 13mm Diameter

Air Fittings
All M5 Thread Size Air Fittings
