S3315W***S3315W*** – 15mm x 30mm Radial Air Bearings Convex W Profile

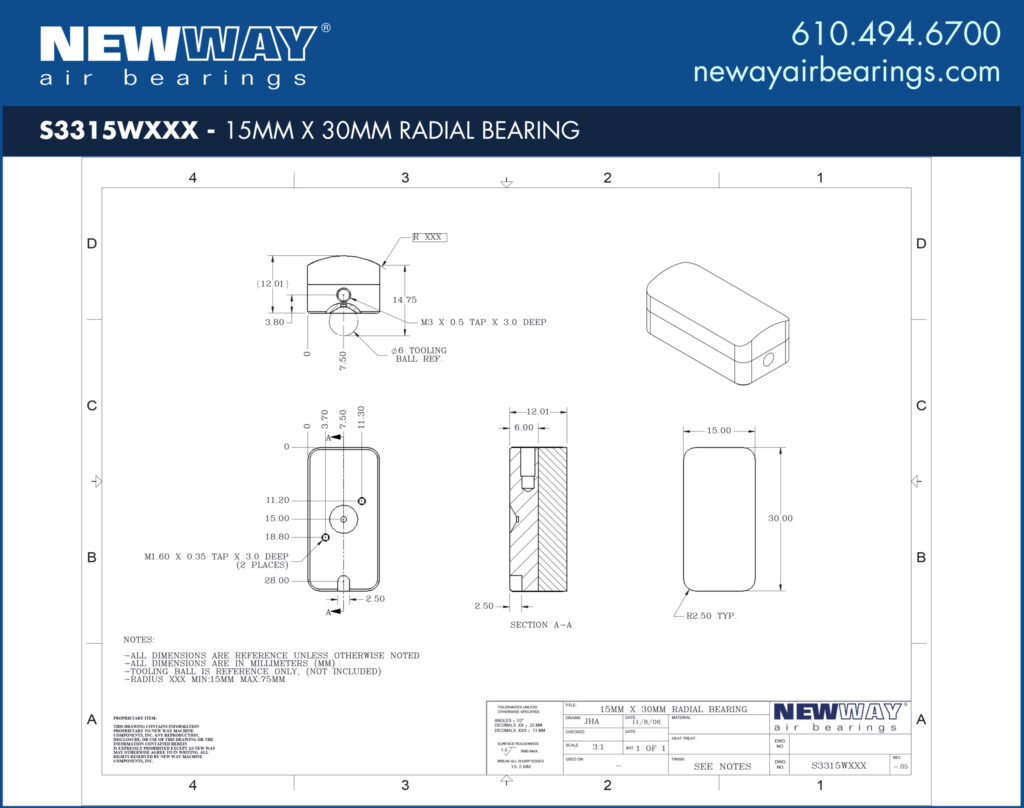

15mm x 30mm Radial Air Bearings Convex W Profile
S3315W***S3315W***

Second-smallest of the New Way Convex Radial Air Bearing product line, the 15mm x 30mm size provides load-carrying capability with the flexibility to fit into the tightest designs. For rotary or linear motion, these radial air bearings compare favorably with conventional rolling element bearings across virtually every performance characteristic. They are also easy to apply, maintain, and change.

Units: US METRIC
TitleSpecifications
Size15 x 30 mm15 x 30 mm
SKUS3315W***S3315W***
Input Pressure60 psi0.41 MPa
Ideal Load at 5um Fly Height10 lb44 N
Stiffness0.04 lb/μin7 N/μm
Flow1.18 NLPM1.18 NLPM
Fly Height0.0002 in5 microns
Bearing Size0.59 x 1.18 in15 x 30 mm
Bearing Height0.39 in10 mm
Bearing Weight0.02 lb8 g
Housing Material/FinishAluminum/AnodizedAluminum/Anodized
Porous Media MaterialCarbonCarbon
Ball Socket Size6 mm6 mm
Pressure Port ThreadM3 x 0.5M3 x 0.5
Viable Pressure Range60 - 80 psi0.414 - 0.552 MPa
Maximum Allowable Pressure Supply100 psi0.689 MPa
ResolutionInfiniteInfinite
Maximum Speed164.04 ft/s50 m/s
Common Guide SurfacesGranite, hard-coated aluminum,ceramics, glass, stainless steel, plated steelGranite, hard-coated aluminum,ceramics, glass, stainless steel, plated steel
Suggested Guide Surface Finish16 RMS16 RMS
