S33150W***S33150W*** – 150mm x 300mm Radial Air Bearings Convex W Profile

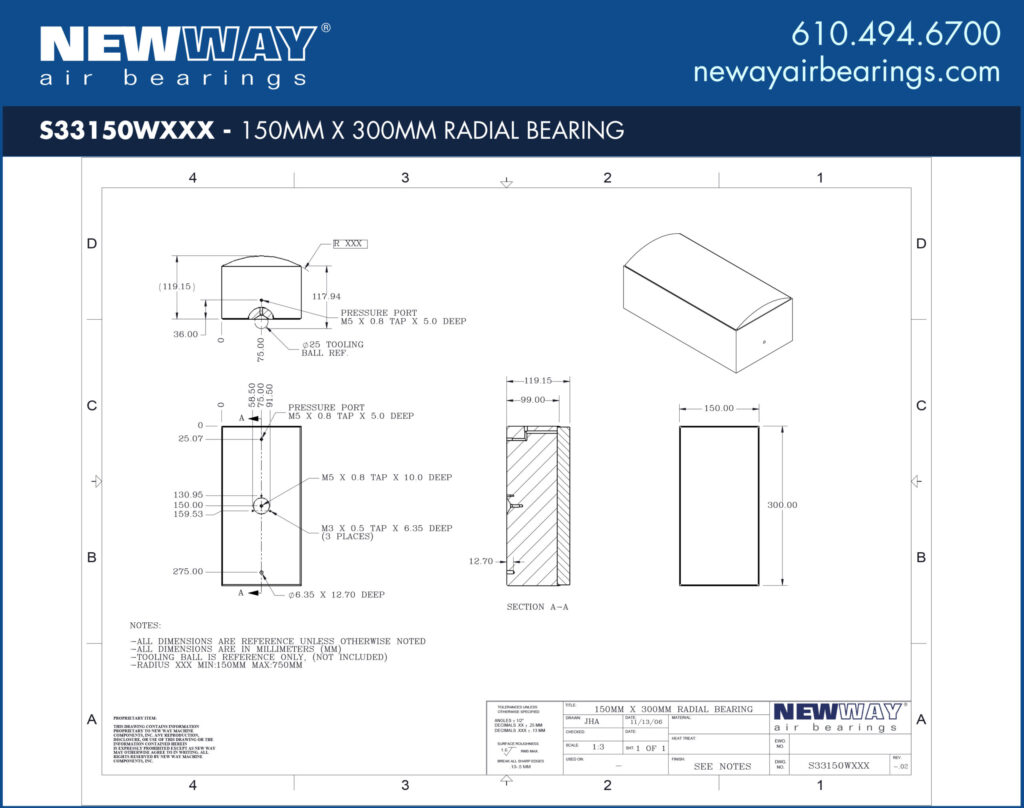

150mm x 300mm Radial Air Bearings Convex W Profile
S33150W***S33150W***

Largest of the New Way Convex Radial Air Bearing product line, the 150mm x 300mm size provides the scale necessary for more significant load-carrying capability. For rotary or linear motion, these radial air bearings compare favorably with conventional rolling element bearings across virtually every performance characteristic. They are also easy to apply, maintain, and change.

Units: US METRIC
TitleSpecifications
Size150 x 300 mm150 x 300 mm
SKUS33150W***S33150W***
Input Pressure60 psi0.41 MPa
Ideal Load at 5um Fly Height2,350 lb10,453 N
Stiffness9.39 lb/μin1645 N/μm
Flow5.19 NLPM5.19 NLPM
Fly Height0.0002 in5 microns
Bearing Size5.91 x 11.81 in150 x 300 mm
Bearing Height3.94 in100 mm
Bearing Weight26.06 lb11,822 g
Housing Material/FinishAluminum/AnodizedAluminum/Anodized
Porous Media MaterialCarbonCarbon
Ball Socket Size25 mm25 mm
Pressure Port ThreadM5 x 0.8M5 x 0.8
Viable Pressure Range60 - 80 psi0.414 - 0.552 MPa
Maximum Allowable Pressure Supply100 psi0.689 MPa
ResolutionInfiniteInfinite
Maximum Speed164.04 ft/s50 m/s
Common Guide SurfacesGranite, hard-coated aluminum,ceramics, glass, stainless steel, plated steelGranite, hard-coated aluminum,ceramics, glass, stainless steel, plated steel
Suggested Guide Surface Finish16 RMS16 RMS
