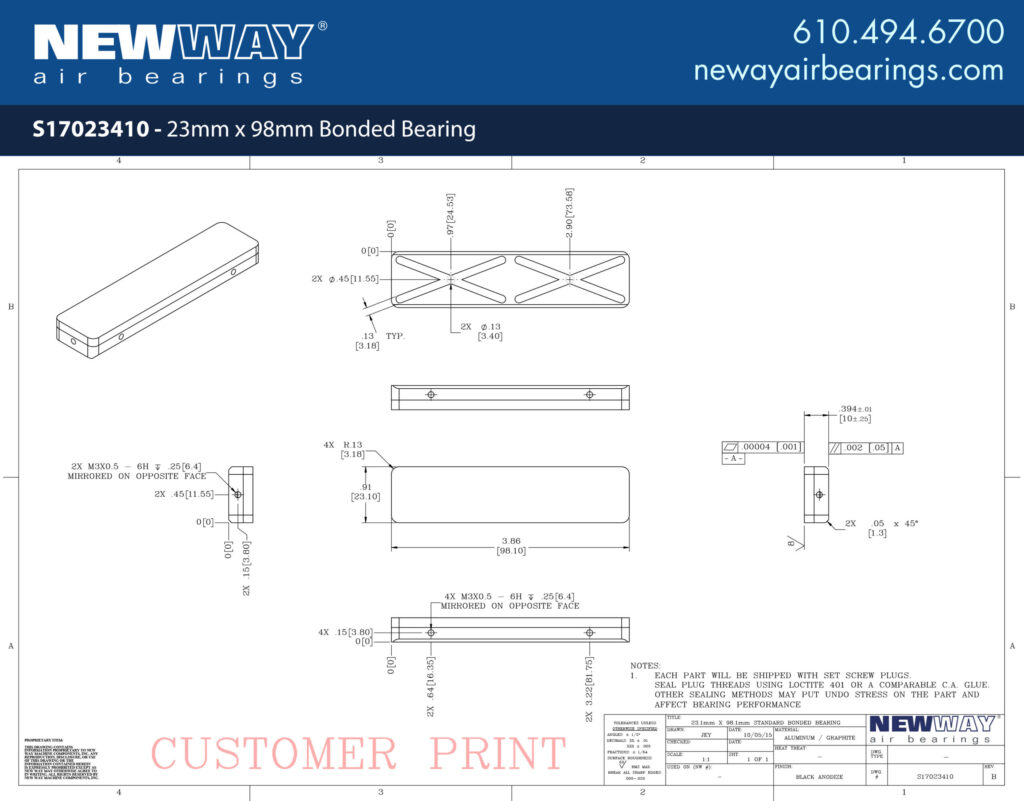

S17023410S17023410 – 23mm X 98mm Bonded Bearing


23mm X 98mm Bonded Bearing

23mm X 98mm Bonded Bearing
S17023410S17023410

New Way’s 23mm x 98mm Bonded Bearing offers a solution for space-constrained linear applications. Bonded bearings are a low-profile version of our flat rectangular bearings as well as a critical component of our popular Linear Slides. Sold as a standalone component, bonded bearings are able to be positioned accurately through the use of vacuum replication prior to bonding the bearing into place. The large length size relative to the width is accommodated through an additional set of air grooves to ensure even distribution of air for optimum performance.

Contact us today at 610.494.6700 for more information on using bonded bearings in your application!

Units: US METRIC
TitleSpecifications
SKUS17023410S17023410
Width23.1 mm0.91 in.
Length98.1 mm3.86 in.
Height10 mm0.39 in.
Ideal Load374 N84.1 lbs.
Flow1.9 SLPM0.07 SCFM
Bearing Weight49.0 gm1.73 oz.
# of Grooves22
Pressure Port ThreadM3 x 0.5M3 x 0.5
