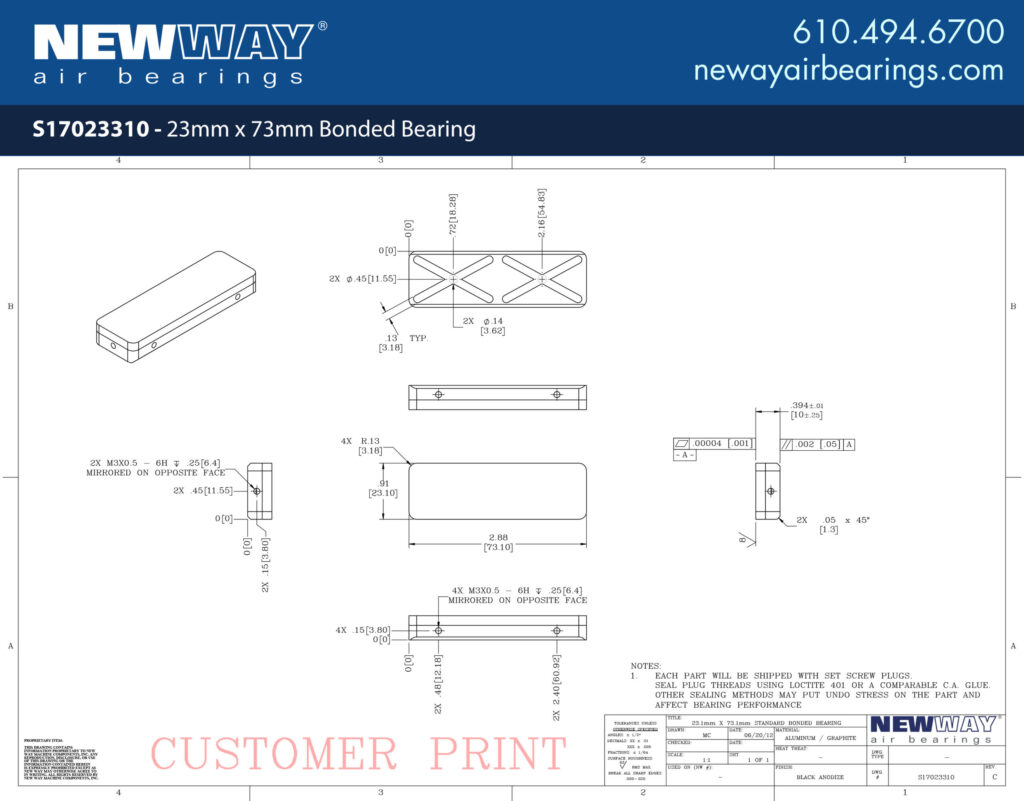

S17023310S17023310 – 23mm X 73mm Bonded Bearing


23mm X 73mm Bonded Bearing

23mm X 73mm Bonded Bearing
S17023310S17023310

New Way’s 23mm x 73mm Bonded Bearing offers a solution for space-constrained linear applications. Bonded bearings are a low-profile version of our flat rectangular bearings as well as a critical component of our popular Linear Slides. Sold as a standalone component, bonded bearings are able to be positioned accurately through the use of vacuum replication prior to bonding the bearing into place. The large length size relative to the width is accommodated through an additional set of air grooves to ensure even distribution of air for optimum performance.

Contact us today at 610.494.6700 for more information on using bonded bearings in your application!

Units: US METRIC
TitleSpecifications
SKUS17023310S17023310
Width23.1 mm0.91 in.
Length73.1 mm2.88 in.
Height10 mm0.39 in.
Ideal Load280 N62.9 lbs.
Flow1.4 SLPM0.05 SCFM
Bearing Weight36.5 gm1.29 oz.
# of Grooves22
Pressure Port ThreadM3 x 0.5M3 x 0.5
