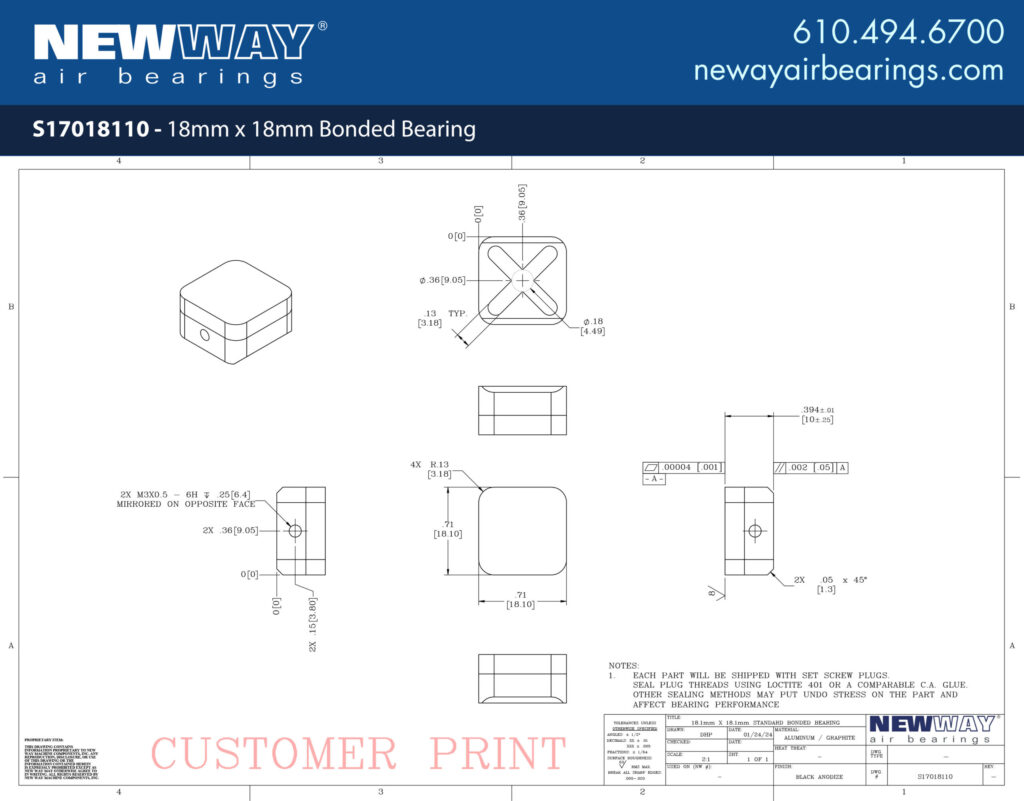

S17018110S17018110 – 18mm X 18mm Bonded Bearing


18mm X 18mm Bonded Bearing

18mm X 18mm Bonded Bearing
S17018110S17018110

New Way’s 18mm x 18mm Bonded Bearing offers a solution for space-constrained linear applications. Bonded bearings are a low-profile version of our flat rectangular bearings as well as a critical component of our popular Linear Slides. Sold as a standalone component, bonded bearings are able to be positioned accurately through the use of vacuum replication prior to bonding the bearing into place.

Contact us today at 610.494.6700 for more information on using bonded bearings in your application!

Units: US METRIC
Title Specifications
SKU S17018110S17018110
Width 18.1 mm0.71 in.
Length 18.1 mm0.71 in.
Height 10 mm0.39 in.
Ideal Load 56 N12.6 lbs.
Flow 0.4 SLPM0.014 SCFM
Bearing Weight 6.9 g0.24 oz.
# of Grooves 11
Pressure Port Thread M3 x 0.5M3 x 0.5
