S17015410S17015410 – 15mm X 60mm Bonded Bearing

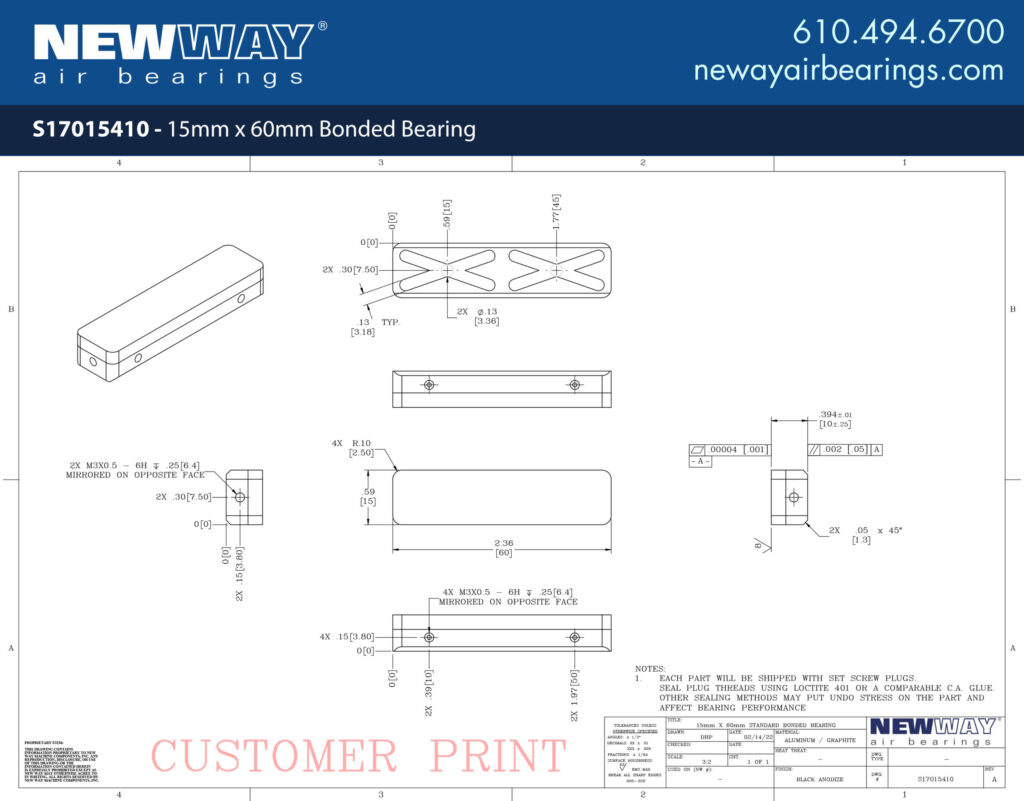

15mm X 60mm Bonded Bearing

15mm X 60mm Bonded Bearing
S17015410S17015410

New Way’s 15mm x 60mm Bonded Bearing offers a solution for space-constrained linear applications. Bonded bearings are a low-profile version of our flat rectangular bearings as well as a critical component of our popular Linear Slides. Sold as a standalone component, bonded bearings are able to be positioned accurately through the use of vacuum replication prior to bonding the bearing into place. The large length size relative to the width is accommodated through an additional set of air grooves to ensure even distribution of air for optimum performance.

Contact us today at 610.494.6700 for more information on using bonded bearings in your application!

Units: US METRIC
TitleSpecifications
SKUS17015410S17015410
Width15 mm0.59 in.
Length60 mm2.36 in.
Height10 mm0.39 in.
Ideal Load125 N28.1 lbs.
Flow0.9 SLPM0.032 SCFM
Bearing Weight19.7 gm0.69 lbs.
# of Grooves22
Pressure Port ThreadM3 x 0.5M3 x 0.5
