S17015310S17015310 – 15mm X 45mm Bonded Bearing

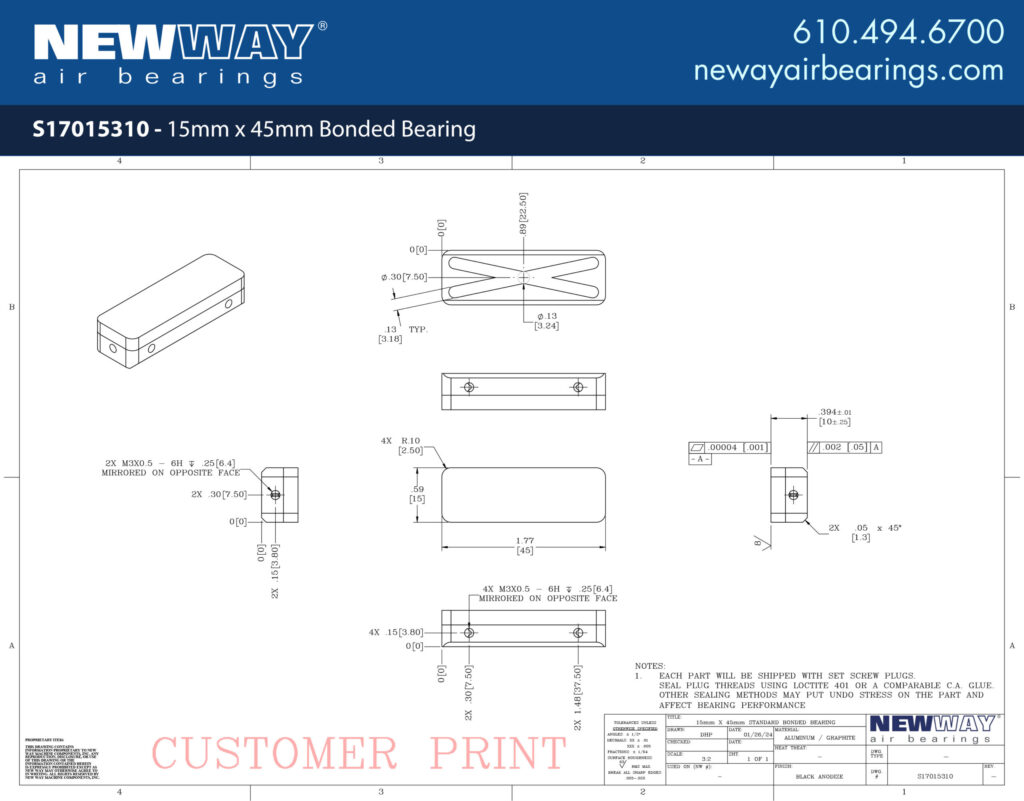

15mm X 45mm Bonded Bearing

15mm X 45mm Bonded Bearing
S17015310S17015310

New Way’s 15mm x 45mm Bonded Bearing offers a solution for space-constrained linear applications. Bonded bearings are a low-profile version of our flat rectangular bearings as well as a critical component of our popular Linear Slides. Sold as a standalone component, bonded bearings are able to be positioned accurately through the use of vacuum replication prior to bonding the bearing into place.

Contact us today at 610.494.6700 for more information on using bonded bearings in your application!

Units: US METRIC
Title Specifications
SKU S17015310S17015310
Width 15 mm0.59 in.
Length 45 mm1.77 in.
Height 10 mm0.39 in.
Ideal Load 93 N20.91 lbs.
Flow 0.7 SLPM0.025 SCFM
Bearing Weight 14.8 g0.52 oz.
# of Grooves 11
Pressure Port Thread M3 x 0.5M3 x 0.5
