S17015110S17015110 – 15mm X 15mm Bonded Bearing

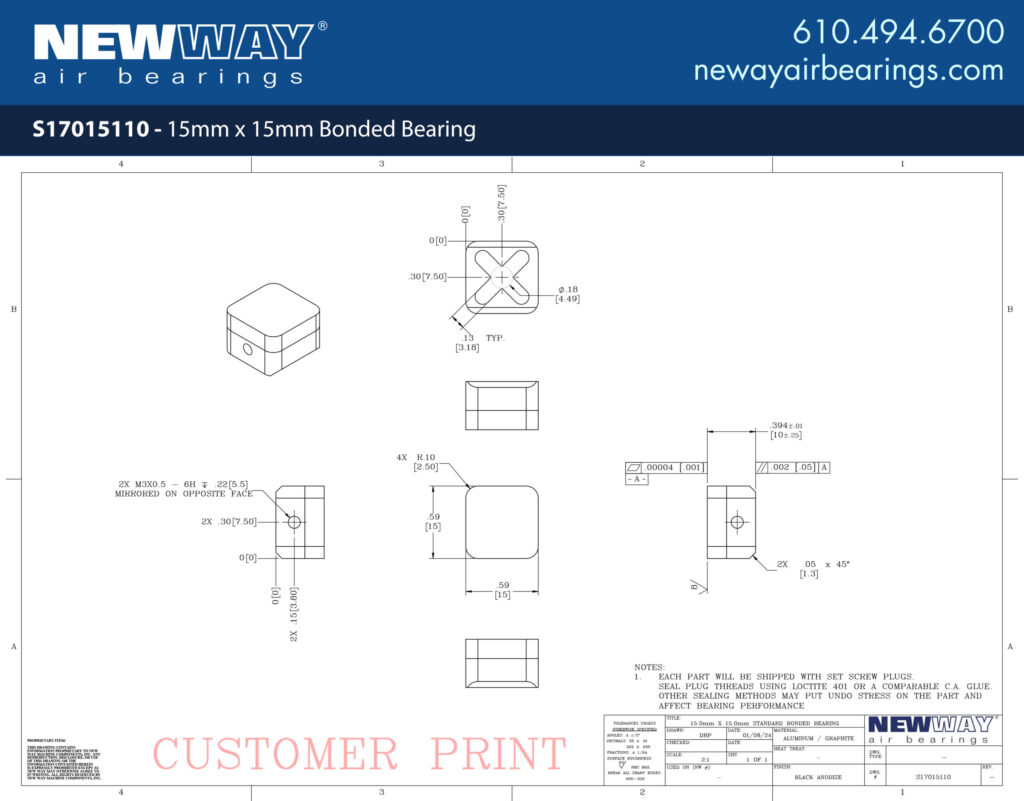

15mm X 15mm Bonded Bearing

15mm X 15mm Bonded Bearing
S17015110S17015110

New Way’s 15mm x 15mm Bonded Bearing offers a solution for space-constrained linear applications. Bonded bearings are a low-profile version of our flat rectangular bearings as well as a critical component of our popular Linear Slides. Sold as a standalone component, bonded bearings are able to be positioned accurately through the use of vacuum replication prior to bonding the bearing into place.

Contact us today at 610.494.6700 for more information on using bonded bearings in your application!

Units: US METRIC
TitleSpecifications
SKUS17015110S17015110
Width15 mm0.59 in.
Length15 mm0.59 in.
Height10 mm0.39 in.
Ideal Load31 N6.97 lbs.
Flow0.2 SLPM0.007 SCFM
Bearing Weight4.9 gm0.17 oz.
# of Grooves11
Pressure Port ThreadM3 x 0.5M3 x 0.5
