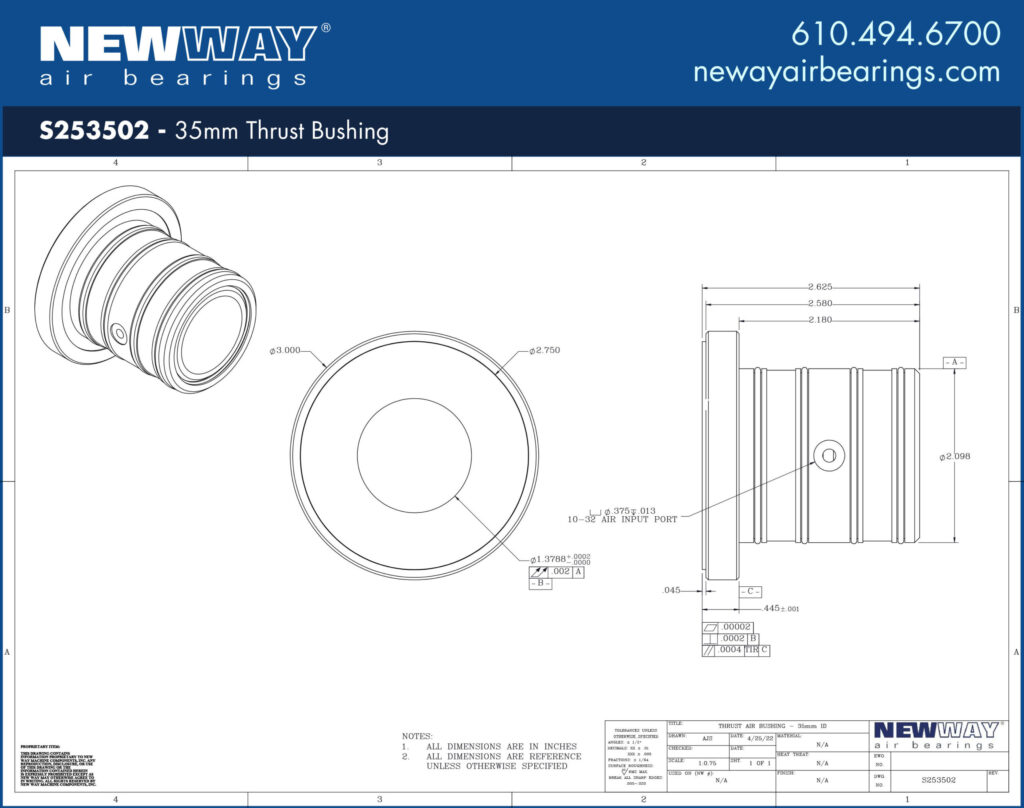

S253502S253502 – 35mm Thrust Bushing


35mm Thrust Bushing

35mm Thrust Bushing
S253502S253502

S253502 Thrust Bushings makes air bearing technology readily available to engineers who require radial motion with axial constraint. The S253502 runs on a standard metric precision machined steel shaft.

Contact us today to start improving your rotary applications!

Units: US METRIC
TitleSpecifications
Size35 mm ID35 mm ID
SKUS253502S253502
Input Pressure60 psi0.41 MPa
Radial Load Max110 lbs489 N
Thrust Load Max130 lbs578 N
Axial StiffnessN/AN/A
Radial StiffnessN/AN/A
Flowrate on Shaft13.0 - 21.0 SCFH6.14 - 9.91 NLPM
Air Gap150 micro-inches3.81 microns
Thrust Bushing1.3788 in +.0002/-.00035.020 mm +0.005/-0.000
Bushing Outside2.098 in53.29 mm
Thrust Face3.0 in76.2 mm
Thrust Bushing Length2.625 in66.68 mm
Thrust Bushing WeightN/AN/A
Housing Material/FinishAluminum/AnodizedAluminum/Anodized
Porous Media MaterialCarbonCarbon
Recommended ShaftN/AN/A
Recommended Mounting Bore2.116 in +.005/-.00053.746 mm +.13/-.00
Maximum Allowable Pressure Supply100 psi0.689 MPa
ResolutionInfiniteInfinite
Maximum Speed164 ft/s50 m/sec
Common Shaft MaterialsAnodized aluminum, stainless steel, nickel plated steel, ceramics, glassAnodized aluminum, stainless steel, nickel plated steel, ceramics, glass
