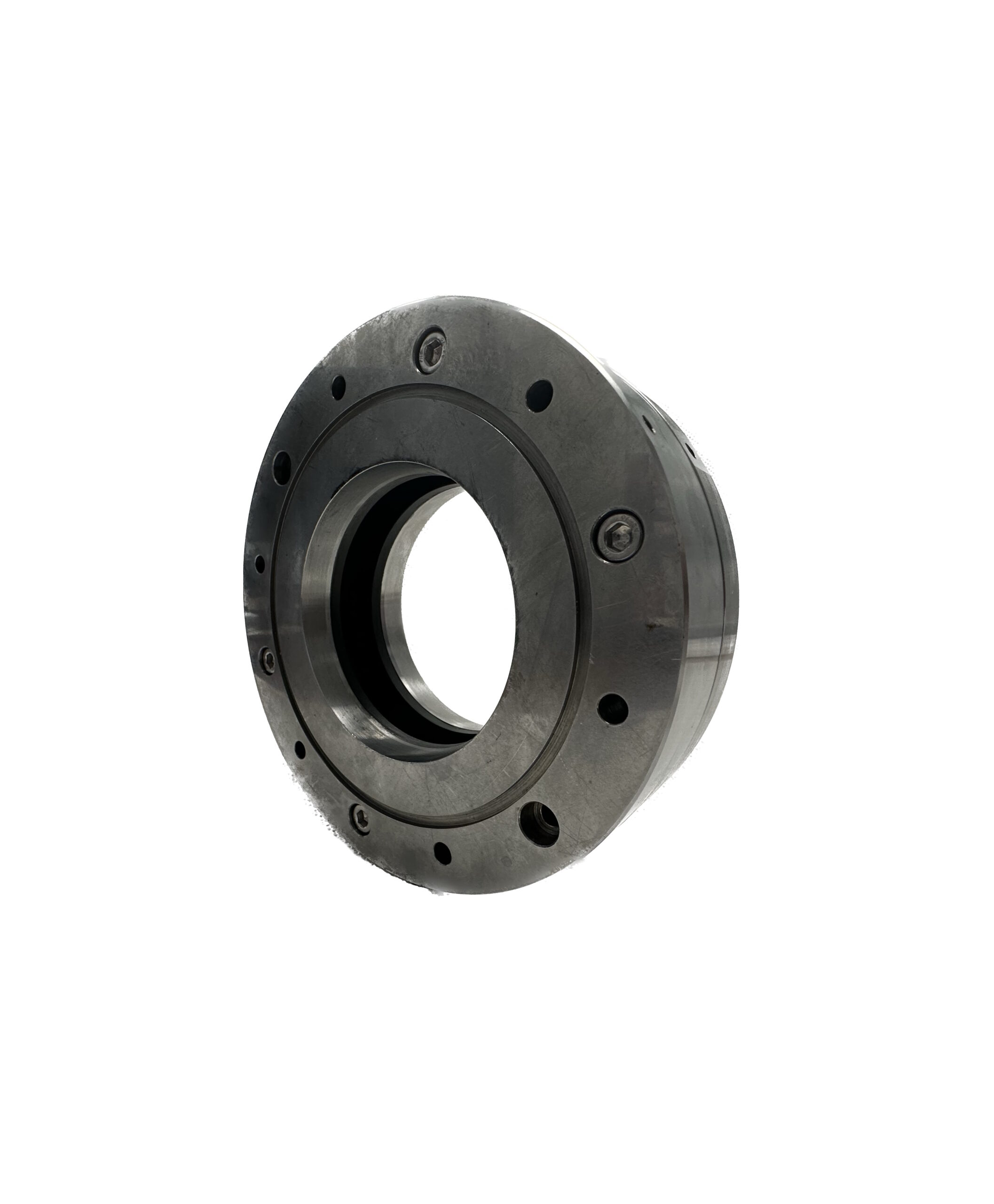

Introducing the Future of Turbomachinery Bearings: The Externally Pressurized Porous Media Turbomachinery Thrust Bearing

Unlock unparalleled performance and reliability with our NW-TB-02-01 Thrust Bearing – the cutting-edge solution redefining the way you approach high-speed machinery. The NW-TB-02-01 is our smallest turbomachinery thrust bearing. Designed to meet the most demanding industrial applications with a shaft size of 2 inches, this innovative thrust bearing technology is the key to smoother operations, reduced maintenance, and enhanced productivity.

Contact us today to start improving your Turbomachinery Axial Motion!

Units: US METRIC
Title Specifications
Model # NW-TB-02-01NW-TB-02-01
Shaft Size 2.00 in.50.8 mm
Shaft Flange Thickness .373 in. +.0002/-.00029.47 mm +0.01/-0.01
Maximum Speed 30,000 RPM30,000 RPM
Supply Pressure 60 - 140 PSIG413.7 - 965.3 KPA
Flow Consumption @ 60 PSIG (413.7 KPA) 30-51 SCFH14.2-23.6 SLPM
Stator Bore Requirement 5.476 in. +.002/-.000 139.09 mm +0.05/-0.00
Max. Angular Misalignment 2.5°2.5°
Porous Media Material Carbon GraphiteCarbon Graphite
Housing Material 316 Stainless Steel, FDA Compliant Materials Available316 Stainless Steel, FDA Compliant Materials Available
O-ring Materials Viton 75AViton 75A
