Boxway Air Slides 10.5" – 4" Travel Boxway Air Slides
S40-05267-254368S40-05267-254368

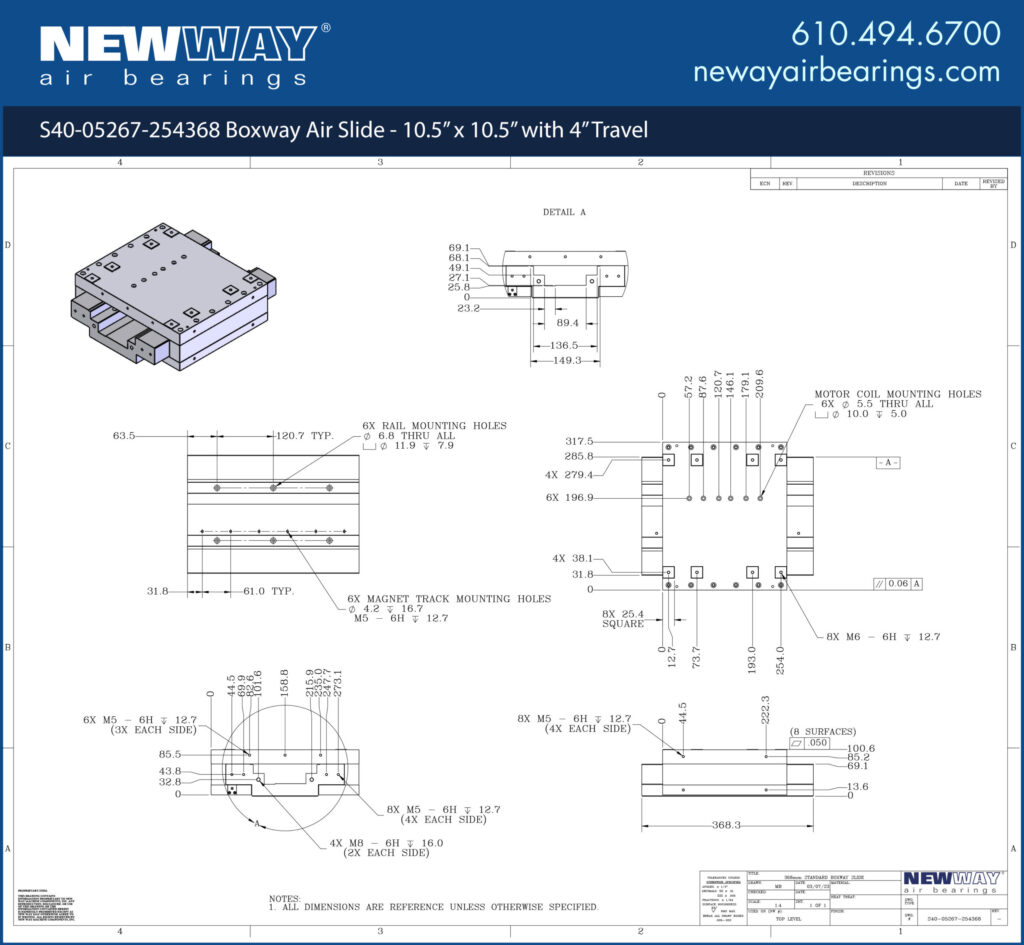

This standard New Way® integrated slide-and-guide assembly arrives ready for continuously-supported or end-supported installation. With its low-profile linear track, the 10.5″ Truck is slightly wider than the New Way Dovetail, providing the largest load-carrying capacity of any of the organization’s slide product lines. The paired guidebar provides 4″ of travel standard.

Units: US METRIC
TitleSpecifications
Part #S40-05267-254368S40-05267-254368
Input Pressure60 psi0.41 MPa
Flow42 SCFH19.8 NLPM
Maximum Load600 lbs2669 N
Accuracy “X”2.5 Micro-Inches per inch0.065 microns per 25mm
Accuracy “Z”2.5 Micro-Inches per inch0.065 microns per 25mm
Stiffness “Y”1,000,000 lbs. /Inch175126 N/mm
Stiffness “Z”2,000,000 lbs. /Inch350253 N/mm
Stage Weight22.5 lbs10.21 kg
Rail Weight1.55 lb per 1"0.7 kg per 25mm
Pitch Moment Max2008 lbs-in226.8 N-m
Roll Moment Max2814 lbs-in317.9 N-m
Yaw Moment Max579 lbs-in65.4 N-m
