S3375L***S3375L*** – 75mm x 150mm Radial Air Bearings Convex L Profile

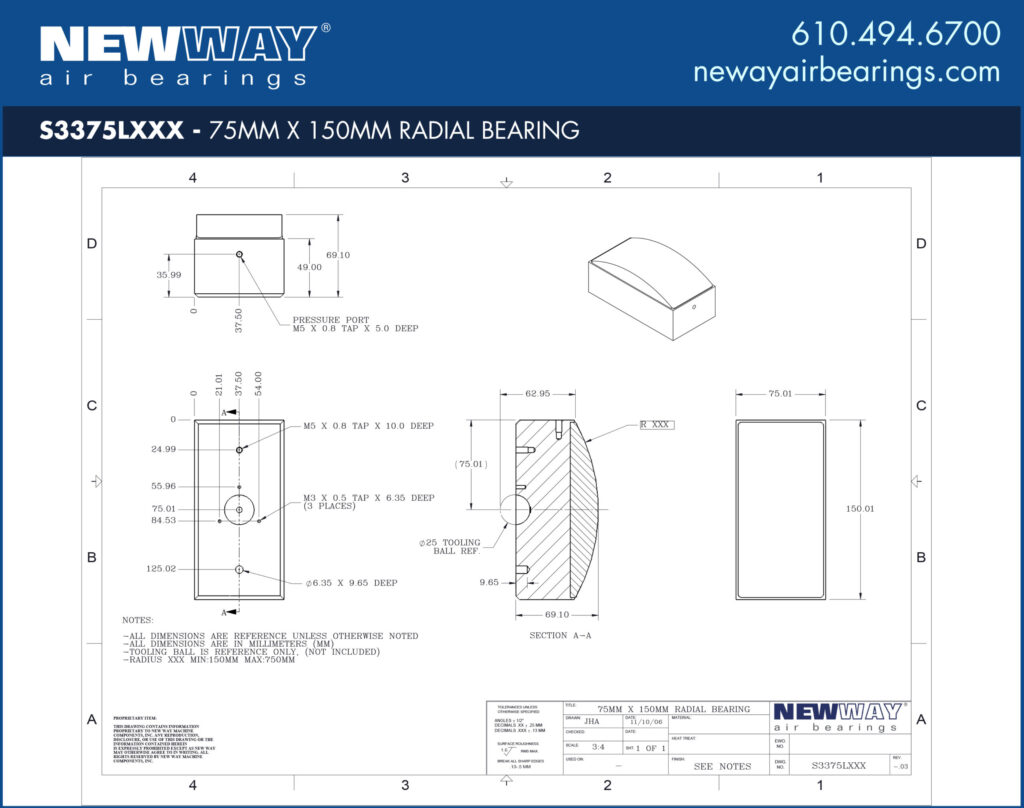

75mm x 150mm Radial Air Bearings Convex L Profile
S3375L***S3375L***

Fourth-largest of the New Way Convex Radial Air Bearing product line, the 75mm x 150mm size provides a good balance of scale and load-carrying capability. For rotary or linear motion, these radial air bearings compare favorably with conventional rolling element bearings across virtually every performance characteristic. They are also easy to apply, maintain, and change.

Units: US METRIC
TitleSpecifications
Size75 x 150 mm75 x 150 mm
SKUS3375L***S3375L***
Input Pressure60 psi0.41 MPa
Ideal Load at 5um Fly Height420 lb1868 N
Stiffness1.43 lb/μin250 N/μm
No Load Flow19.0 - 22.0 SCFH8.96 - 10.38 NLPM
Fly Height0.0002 in5 microns
Bearing Size2.95 x 5.91 in75 x 150 mm
Bearing Height1.97 in50 mm
Bearing Weight3.02 lb1372 g
Housing Material/FinishAluminum/AnodizedAluminum/Anodized
Porous Media MaterialCarbonCarbon
Ball Socket Size25 mm25 mm
Pressure Port ThreadM5 x 0.8M5 x 0.8
Viable Pressure Range60 - 80 psi0.414 - 0.552 MPa
Maximum Allowable Pressure Supply100 psi0.689 MPa
ResolutionInfiniteInfinite
Maximum Speed164.04 ft/s50 m/s
Common Guide SurfacesGranite, hard-coated aluminum,ceramics, glass, stainless steel, plated steelGranite, hard-coated aluminum,ceramics, glass, stainless steel, plated steel
Suggested Guide Surface Finish16 RMS16 RMS
