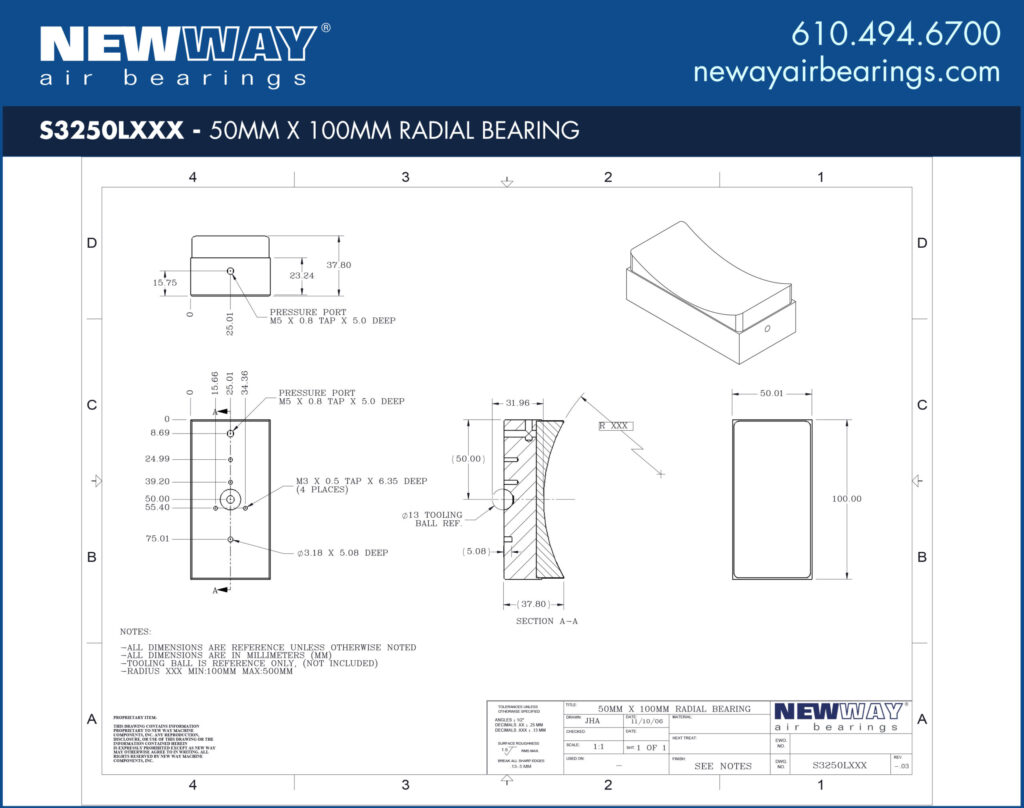

50mm x 100mm Radial Air Bearings Concave L Profile

50mm x 100mm Radial Air Bearings Concave L Profile
S3250LS3250L

Fifth-largest of the New Way Concave Radial Air Bearing product line, the 50mm x 100mm size provides a good balance of scale and load-carrying capability. For rotary or linear motion, these radial air bearings compare favorably with conventional rolling element bearings across virtually every performance characteristic. They are also easy to apply, maintain, and change.

Units: US METRIC

Title	Specifications
Size	50 x 100 mm50 x 100 mm
SKU	S3250L*S3250L*
Input Pressure	60 psi0.41 MPa
Ideal Load at 5um Fly Height	180 lb801 N
Stiffness	0.63 lb/μin110 N/μm
Flow	6.0 - 8.0 SCFH2.59 - 3.46 NLPM
Fly Height	0.0002 in5 microns
Bearing Size	1.97 x 3.94 in50 x 100 mm
Bearing Height	0.98 in25 mm
Bearing Weight	0.65 lb295 g
Housing Material/Finish	Aluminum/AnodizedAluminum/Anodized
Porous Media Material	CarbonCarbon
Ball Socket Size	13 mm13 mm
Pressure Port Thread	M5 x 0.8M5 x 0.8
Viable Pressure Range	60 - 80 psi0.414 - 0.552 MPa
Maximum Allowable Pressure Supply	100 psi0.689 MPa
Resolution	InfiniteInfinite
Maximum Speed	164.04 ft/s50 m/s
Common Guide Surfaces	Granite, hard-coated aluminum,ceramics, glass, stainless steel, plated steelGranite, hard-coated aluminum,ceramics, glass, stainless steel, plated steel
Suggested Guide Surface Finish	16 RMS16 RMS

Attachments:

Mounting Details for 50mm x 100mm Radial Air Bearings Concave L Profile with Round End Ball Mounting Screw

Ball Mounting Screw – Round End

S8013B06 – 13mm Diameter / M10 x 0.75 x 54mm lg

Nut Housing Assembly
S8013H03 – M10 x 0.75 I.D. / M16 x 2 O.D.
S8013H04 – M10 x 0.50 I.D. / M16 x 2 O.D.

Ball Retainer
S8013S01 – 13mm

Air Fittings
All M5 Thread Size Air Fittings

Mounting Details for 50mm x 100mm Radial Air Bearings Concave L Profile with Flat End Ball Mounting Screw

Ball Mounting Screw – Flat End
S8013B11 – 13mm Diameter / M10 x 0.75 x 54mm lg
S8013B14 – 13mm Diameter / M10 x 0.75 x 32mm lg
S8013B15 – 13mm Diameter / M10 x 0.50 x 54mm lg
S8013B16 – 13mm Diameter / M10 x 0.50 x 32mm lg

Nut Housing Assembly
S8013H03 – M10 x 0.75 I.D. / M16 x 2 O.D.
S8013H03 – M10 x 0.75 I.D. / M16 x 2 O.D.
S8013H04 – M10 x 0.50 I.D. / M16 x 2 O.D.
S8013H04 – M10 x 0.50 I.D. / M16 x 2 O.D.

Air Fittings
All M5 Thread Size Air Fittings

Mounting Details for 50mm x 100mm Radial Air Bearings Concave L Profile with Stainless Steel Ball and Ball Retainer

Stainless Steel Ball
S90B004 – 13mm Diameter

Ball Retainer
S8013S01 – 13mm

Air Fittings
All M5 Thread Size Air Fittings

Mounting Details for 50mm x 100mm Radial Air Bearings Concave L Profile with Stainless Steel Ball

Stainless Steel Ball
S90B004 – 13mm Diameter

Air Fittings
All M5 Thread Size Air Fittings

Attachments:

S3250LS3250L – 50mm x 100mm Radial Air Bearings Concave L Profile
