S90F068S90F068 – 4/0.170 Air Fittings Threadless Connection

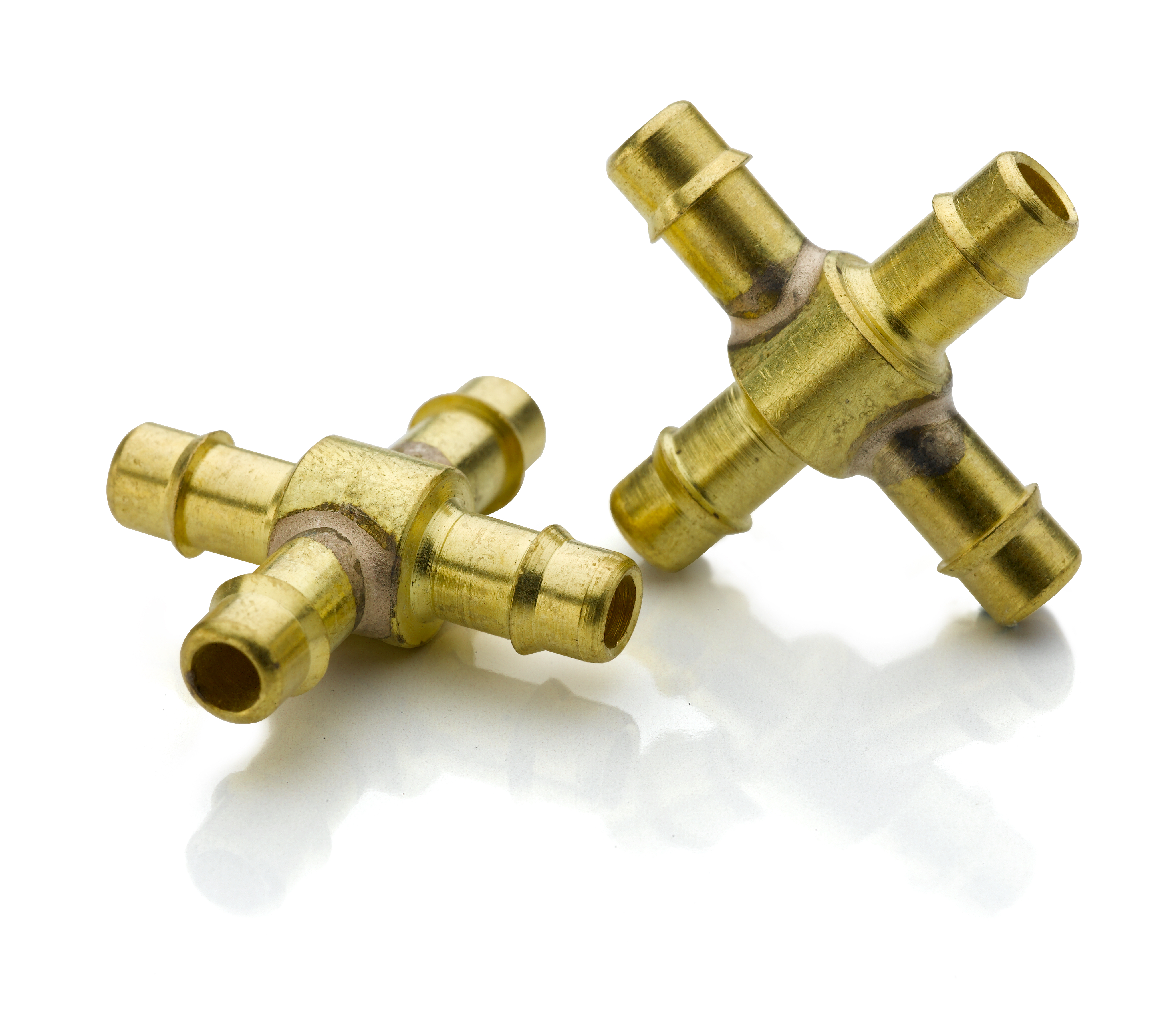

4/0.170 Air Fittings Threadless Connection

4/0.170 Air Fittings Threadless Connection
S90F068S90F068

Size: Number of Barbs/ Tube I.D. – 4/ 0.170″

Compatible With: Clear Polyurethane Tubing
S90T004 – I.D./ O.D. – 0.170/ 0.250

Units: US METRIC
Title Specifications
Part # S90F068S90F068
Mating Tube ID "A" 0.170"4.3 mm
Overall Height "B" 1"25.4 mm
Barb CL to Barb End "C" N/AN/A
Max Width of Barb "D" 5/16"7.9 mm
Overall Width "E" 15/16"23.8 mm
Number of Barbs "F" 44
