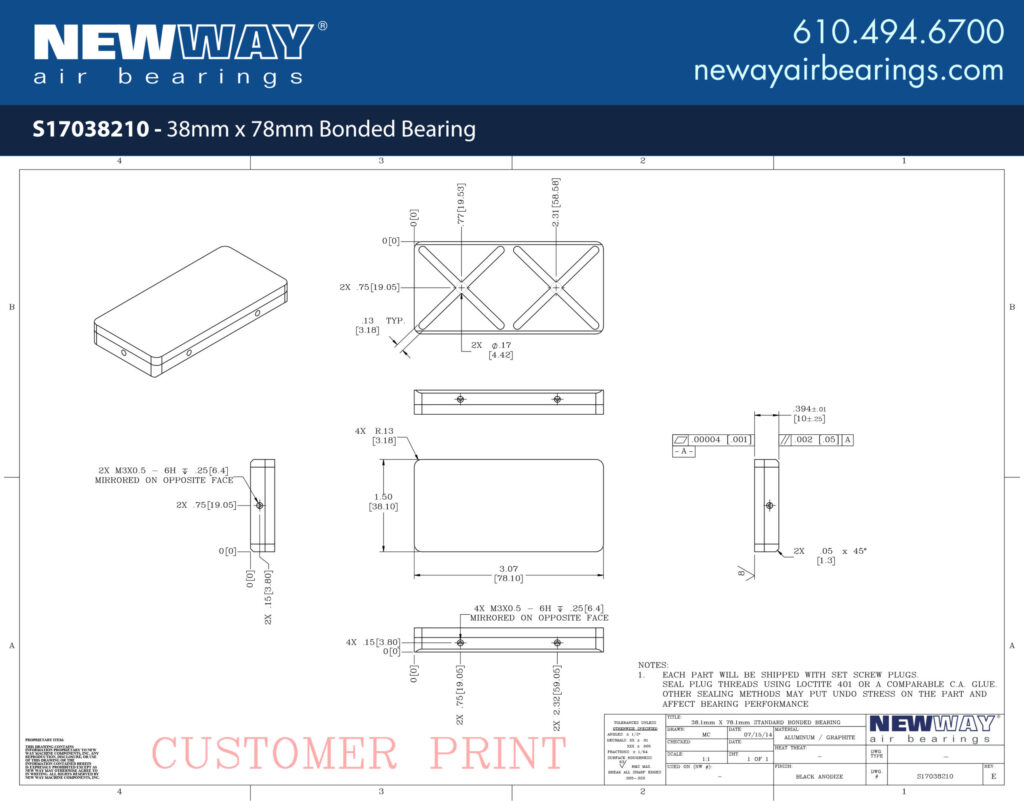

S17038210S17038210 – 38mm X 78mm Bonded Bearing


38mm X 78mm Bonded Bearing

38mm X 78mm Bonded Bearing
S17038210S17038210

New Way’s 38mm x 78mm Bonded Bearing offers a solution for space-constrained linear applications. Bonded bearings are a low-profile version of our flat rectangular bearings as well as a critical component of our popular Linear Slides. Sold as a standalone component, bonded bearings are able to be positioned accurately through the use of vacuum replication prior to bonding the bearing into place. The large length size relative to the width is accommodated through an additional set of air grooves to ensure even distribution of air for optimum performance.

Contact us today at 610.494.6700 for more information on using bonded bearings in your application!

Units: US METRIC
TitleSpecifications
SKUS17038210S17038210
Width38.1 mm1.5 in.
Length78.1 mm3.07 in.
Height10 mm0.39 in.
Ideal Load623 N140.1 lbs.
Flow1.9 SLPM0.07 SCFM
Bearing Weight63.8 gm2.25 oz.
# of Grooves22
Pressure Port ThreadM3 x 0.5M3 x 0.5
