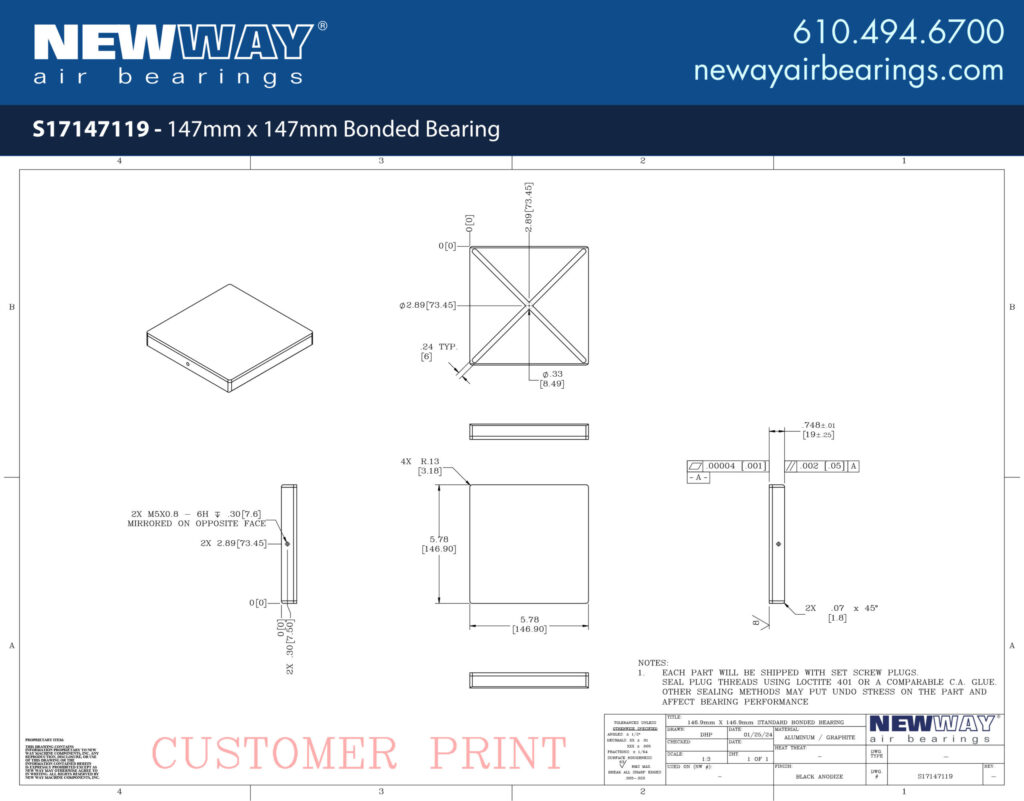

147mm X 147mm Bonded Bearing

147mm X 147mm Bonded Bearing
G17147119 - HXXG17147119 - HXX

New Way’s 147mm x 147mm Bonded Bearing offers a solution for space-constrained linear applications. Bonded bearings are a low-profile version of our flat rectangular bearings as well as a critical component of our popular Linear Slides. Sold as a standalone component, bonded bearings are able to be positioned accurately through the use of vacuum replication prior to bonding the bearing into place.

Contact us today at 610.494.6700 for more information on using bonded bearings in your application!

Units: US METRIC
Title Specifications
SKU G17147119 - HXXG17147119 - HXX
Width 146.9 mm5.78 in.
Length 146.9 mm5.78 in.
Height 19 mm0.75 in.
Ideal Load 5560 N1250.0 lbs.
Flow 2.1 SLPM0.07 SCFM
Bearing Weight 947.5 gm33.4 oz.
# of Grooves 11
Pressure Port Thread M5 x 0.8M5 x 0.8
